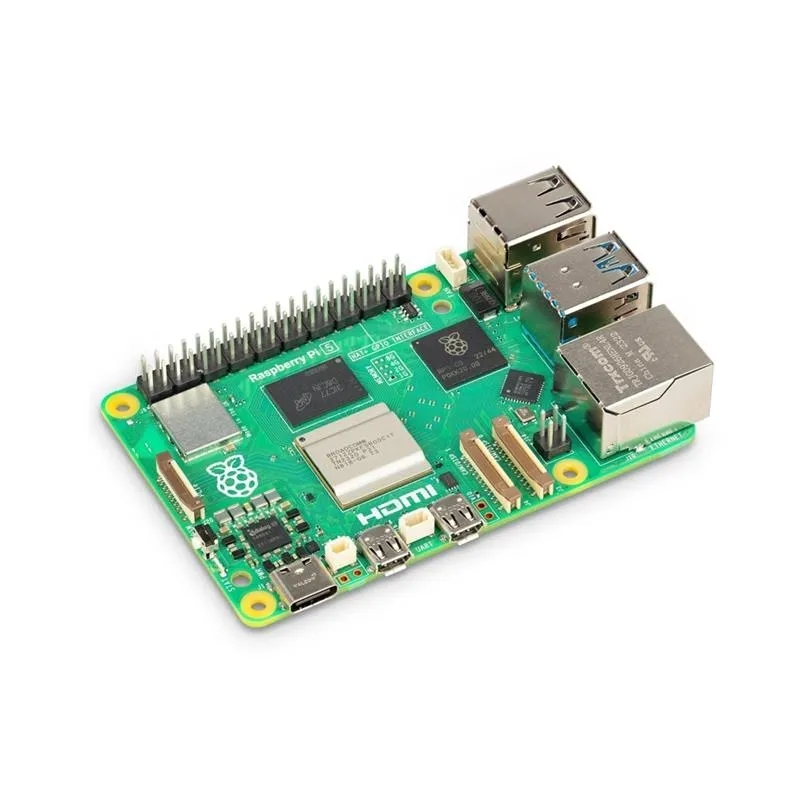

Raspberry Pi 5 1GB RAM

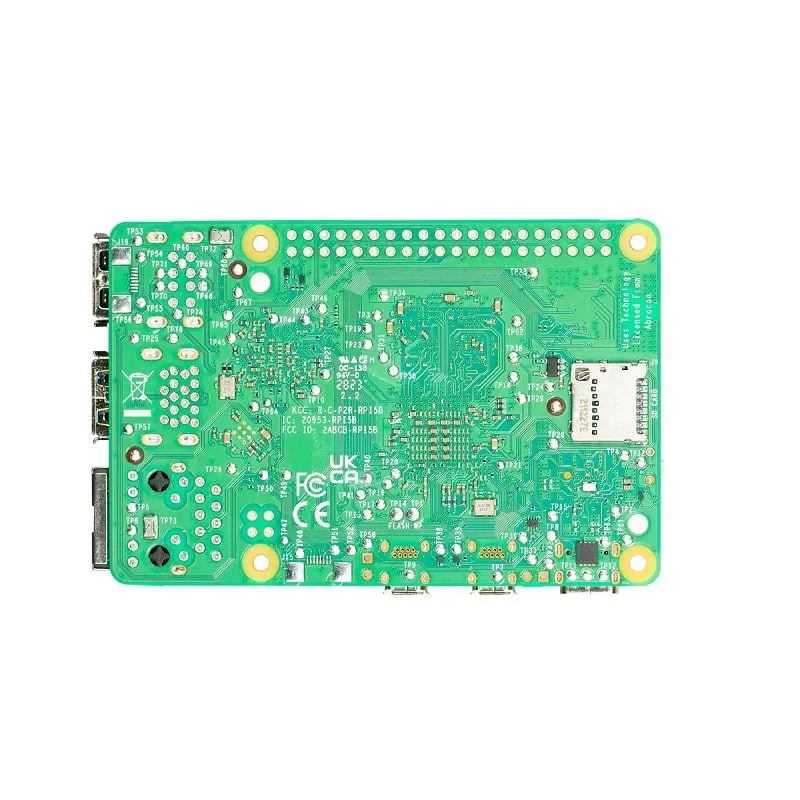

Raspberry Pi 5 1GB RAM - Image 2
SKU: SBCD-0911
📋 GST Invoice Available

Raspberry Pi 5 1GB RAM

₹5,299.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi 5 1GB RAM is the latest iteration of the popular single board computer, powered by a 64-bit quad-core Arm Cortex-A76 processor at 2.4GHz for significantly enhanced CPU and GPU performance. It offers advanced connectivity including dual 4Kp60 display output, Gigabit Ethernet, and USB 3.0, making it suitable for a wide array of embedded and desktop computing applications.

Features

  • Features a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with 2MB L3 cache for 2-3x CPU performance boost.
  • Integrates an 800MHz VideoCore VII GPU, supporting dual 4Kp60 HDMI display output.
  • Equipped with 1GB LPDDR4X-4267 SDRAM, 2.4/5.0 GHz 802.11ac Wi-Fi, and Bluetooth 5.0/BLE.
  • Provides 2x USB 3.0, 2x USB 2.0, Gigabit Ethernet with PoE+ support, and a PCIe 2.0 x1 interface.
  • Includes a Real-Time Clock (RTC) powered by an external battery and a standard 40-pin GPIO header.

Out of stock

Description

The Raspberry Pi 5 1GB RAM represents a significant leap in performance for the iconic single board computer platform. At its core is a powerful 2.4GHz 64-bit quad-core Arm Cortex-A76 processor, delivering a substantial 2–3x increase in CPU performance compared to the Raspberry Pi 4. This enhanced processing power is complemented by an 800MHz VideoCore VII GPU, enabling robust graphics capabilities and supporting dual 4Kp60 display output via HDMI, alongside a reimagined Raspberry Pi Image Signal Processor for state-of-the-art camera integration.

Designed to offer a seamless desktop experience for consumers and unlock new possibilities for industrial applications, the Raspberry Pi 5 integrates a host of hardware and software improvements. Connectivity options are comprehensive, featuring 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi, Bluetooth 5.0 / Bluetooth Low Energy (BLE), two USB 3.0 ports for high-speed peripherals, two USB 2.0 ports, and Gigabit Ethernet with PoE+ support. Additionally, it introduces a PCIe 2.0 x1 interface for expanded peripheral capabilities, two 4-lane MIPI camera/display transceivers, and an on-board power button, making it a versatile and powerful choice for embedded development and general computing.

Key Features

  • 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache.
  • Integrated VideoCore VII GPU for enhanced graphics and multimedia processing.
  • LPDDR4X-4267 1GB SDRAM for high-speed memory access.
  • Dual-band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi and Bluetooth 5.0 / Bluetooth Low Energy (BLE).
  • Micro SD card slot with support for high-speed SDR104 mode for faster storage access.
  • Two USB 3.0 ports (5Gbps) and two USB 2.0 ports for versatile peripheral connectivity.
  • Gigabit Ethernet with PoE+ support (requires PoE+ HAT) for reliable wired networking.
  • Two 4-lane MIPI camera/display transceivers for advanced camera and display solutions.
  • PCIe 2.0 x1 interface provides high-bandwidth connectivity for fast peripherals.
  • Standard Raspberry Pi 40-pin header for extensive GPIO expansion.
  • Real-Time Clock (RTC) powered by an external battery for accurate timekeeping.
  • On-board power button for convenient system control.
  • Dual micro HDMI ports supporting up to 4Kp60 resolution.

Applications

  • Embedded systems development and prototyping.
  • IoT gateways and edge computing applications.
  • Robotics control and automation.
  • Home automation and media centers.
  • Educational projects and learning platforms.
  • Light industrial control and monitoring.

Technical Specifications

Processor2.4GHz quad-core 64-bit Arm Cortex-A76 (512KB L2 caches, 2MB shared L3 cache)
GPUVideoCore VII GPU (800MHz)
RAM1GB LPDDR4X-4267 SDRAM
Wireless Connectivity2.4 GHz and 5.0 GHz 802.11ac Wi-Fi, Bluetooth 5.0 / Bluetooth Low Energy (BLE)
StorageMicro SD card slot (SDR104 mode support)
USB Ports2 × USB 3.0 ports (5Gbps), 2 × USB 2.0 ports
EthernetGigabit Ethernet with PoE+ support (requires HAT)
Display Output2 × micro HDMI ports (up to 4Kp60)
Camera/Display Interface2 × 4-lane MIPI transceivers
PCIePCIe 2.0 x1 interface
GPIOStandard Raspberry Pi 40-pin header
RTCReal-Time Clock (RTC) with external battery connector
Power Input5V/5A DC via USB-C (PD enabled)
Operating Temperature-10°C to 60°C
Dimensions85 mm × 56 mm
Weight105 g

Frequently Asked Questions

What are the key performance improvements of the Raspberry Pi 5 over its predecessor?

The Raspberry Pi 5 features a 2.4GHz quad-core Cortex-A76 CPU, offering 2-3x CPU performance increase and an 800MHz VideoCore VII GPU for enhanced graphics. It also introduces a dedicated PCIe 2.0 x1 interface for high-speed peripherals, improving overall system throughput and responsiveness for demanding applications.

What kind of power supply does the Raspberry Pi 5 require?

The Raspberry Pi 5 requires a 5V/5A DC power supply, preferably with Power Delivery (PD) capabilities, connected via its USB-C port. Using an under-spec power supply can lead to instability, throttled performance, or operational issues, potentially impacting connected peripherals and overall reliability.

Can the Raspberry Pi 5 support dual displays?

Yes, the Raspberry Pi 5 supports dual 4Kp60 display output. It achieves this through its two micro HDMI ports, powered by the VideoCore VII GPU. This capability is ideal for multi-monitor desktop setups, digital signage, or advanced media center configurations requiring high-resolution output.

What operating systems and development environments are supported on the Raspberry Pi 5?

The Raspberry Pi 5 primarily supports Raspberry Pi OS (formerly Raspbian), a Debian-based Linux distribution. It is compatible with various Linux distributions, including Ubuntu and others, enabling development with Python, C/C++, Java, and more. Users can leverage standard Linux development tools and frameworks.

What is the function of the PCIe interface on the Raspberry Pi 5?

The Raspberry Pi 5 includes a PCIe 2.0 x1 interface, providing a direct, high-speed connection for peripherals like NVMe SSDs, network cards, or other expansion boards. This significantly enhances I/O capabilities, overcoming previous USB-bound bottlenecks and allowing for more robust and faster storage or networking solutions.

Package Includes

  • 1 x Raspberry Pi 5 Model 1GB RAM

Additional Information

Weight 0.105 kg
Dimensions 8.5 × 5.6 cm
