RadioMaster RP1 V2 ExpressLRS Nano Receiver
The RadioMaster RP1 V2 is a compact 2.4GHz ExpressLRS Nano Receiver designed for low-latency, long-range control in FPV drones and RC models, featuring a CRSF interface and compatibility with all 2.4GHz ExpressLRS transmitters.
Features
- Ultra-compact 13x11x3mm footprint weighing only 2.2g for space-constrained builds.
- ExpressLRS 2.4GHz protocol delivers up to 500Hz / F1000Hz refresh rates for ultra-low latency control.
- Features a built-in TCXO (Temperature Compensated Crystal Oscillator) for superior frequency stability.
- Operates on 5V power with a CRSF serial interface for seamless Betaflight and ArduPilot integration.

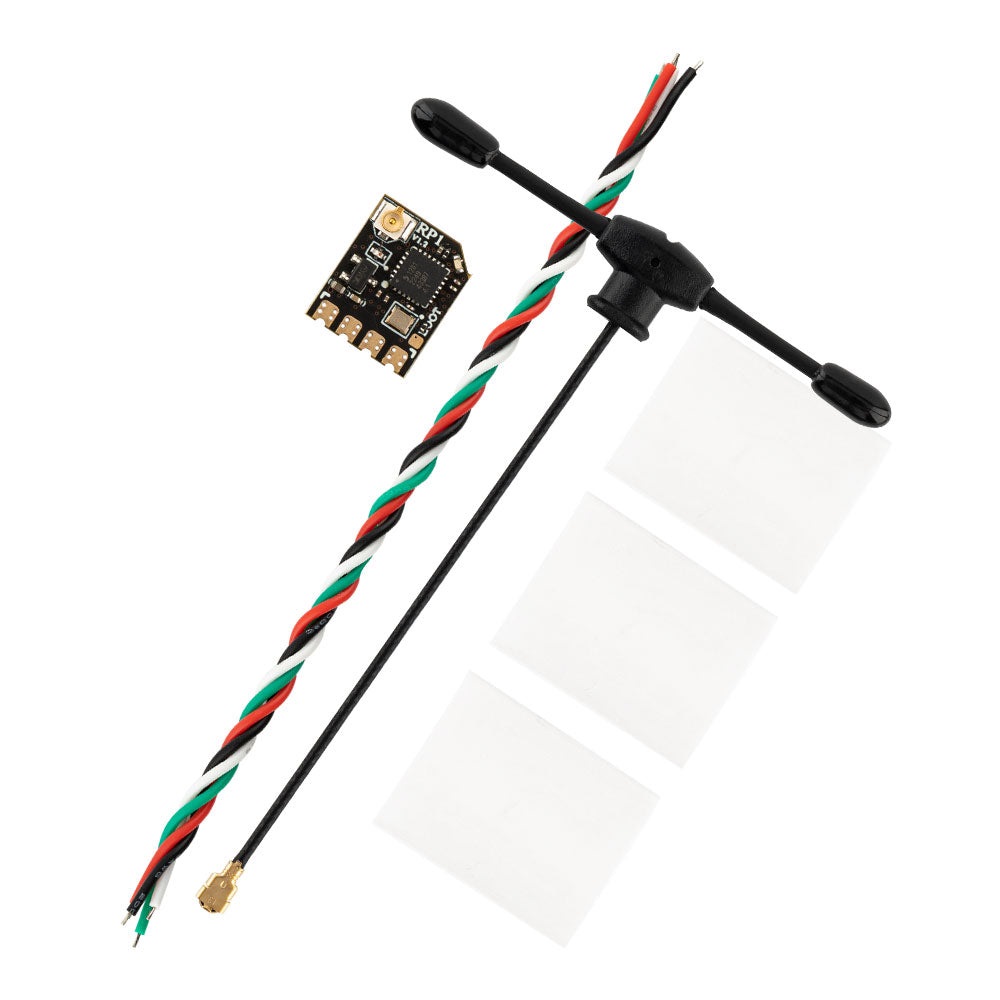

- Includes a durable 65mm UFL 2.4GHz T antenna for optimized RF performance.
Out of stock

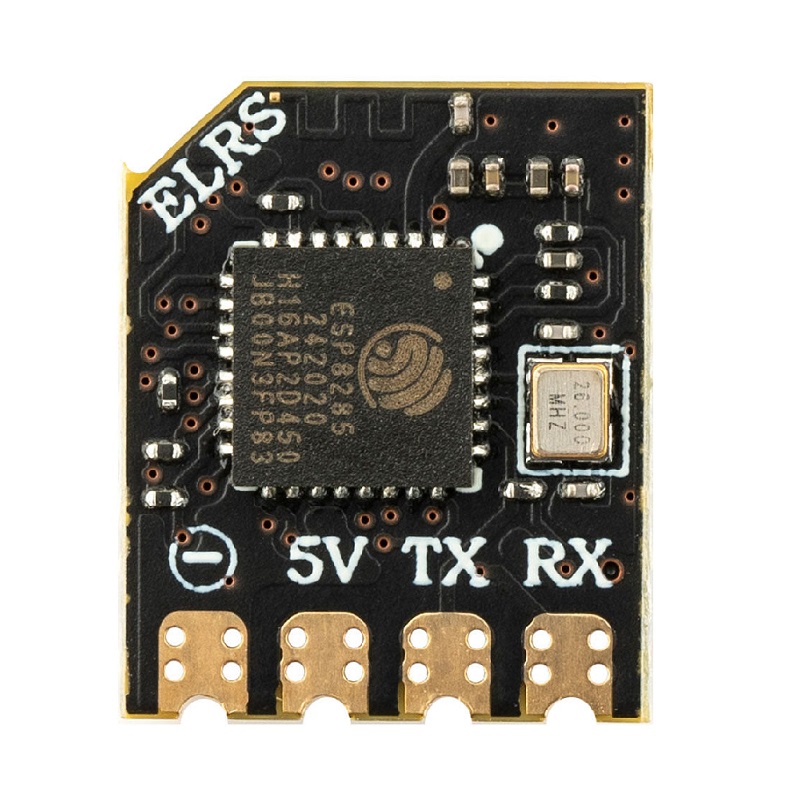

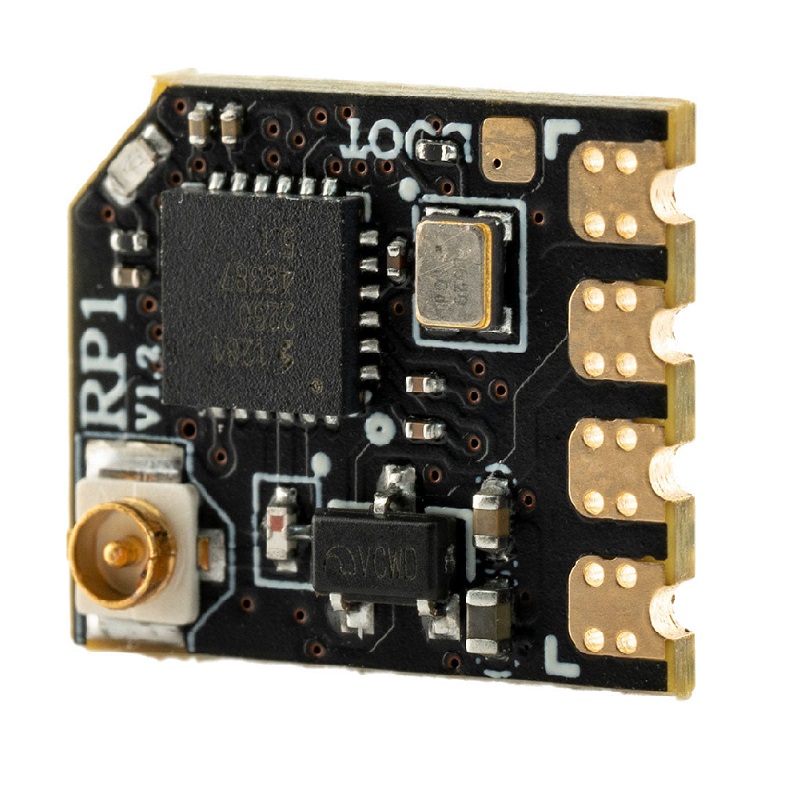

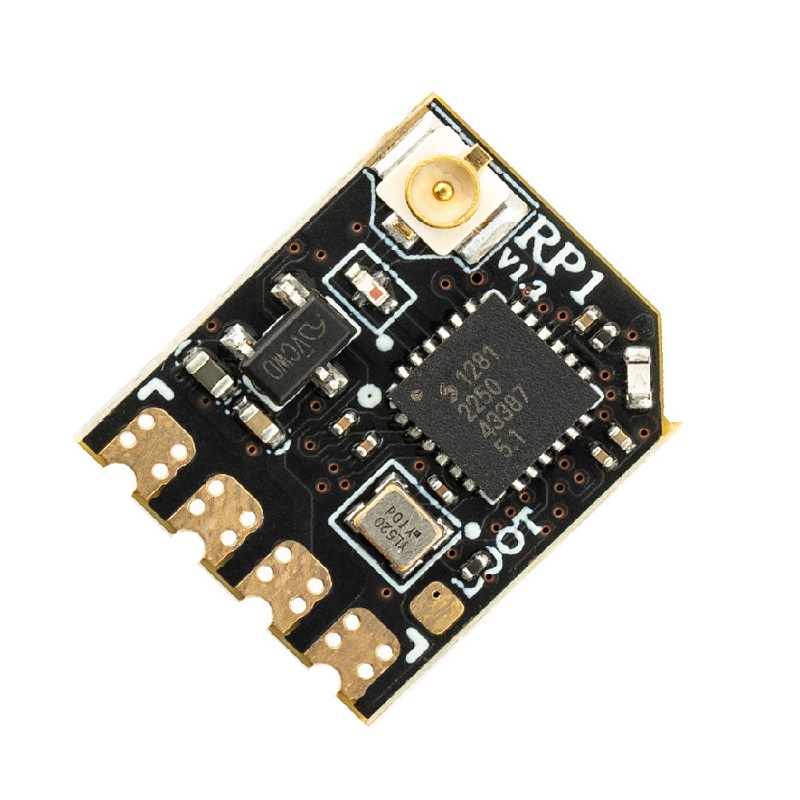

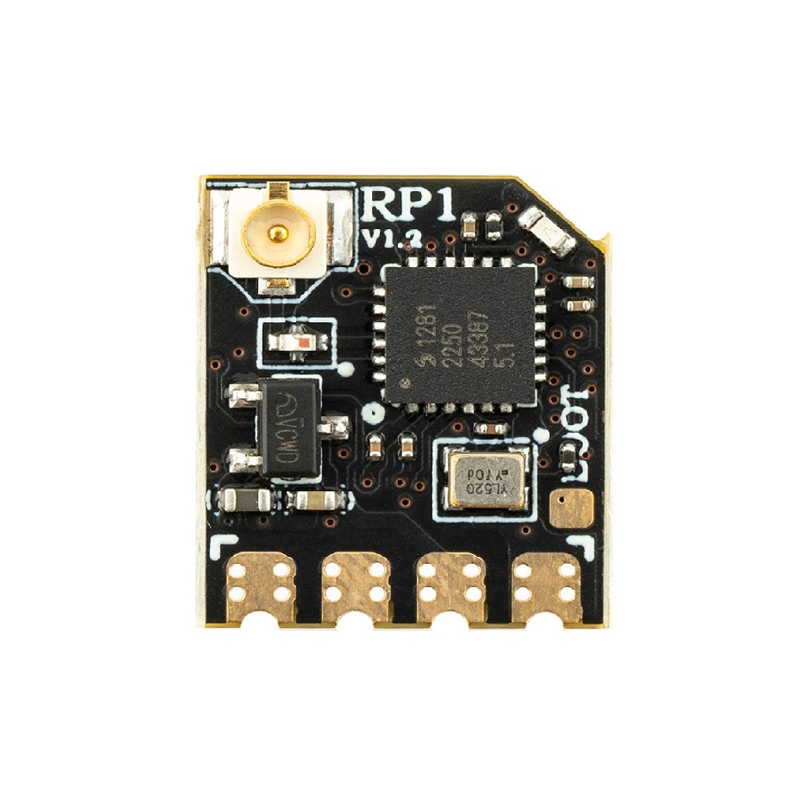

The RadioMaster RP1 V2 Nano Receiver leverages the SEMTECH SX1281 RF chip and an ESP8285 MCU to provide robust 2.4GHz ExpressLRS connectivity. Its upgraded PCB design enhances thermal management and solder pad accessibility, while the rigid T-antenna improves durability and signal reception. This receiver is pre-loaded with ExpressLRS v2.4 firmware, ready for binding and configuration via the ExpressLRS Configurator.
Engineered for reliability, the RP1 V2 supports a wide refresh rate range from 25Hz to 500Hz (Full Duplex 1000Hz), allowing pilots to balance range and responsiveness. Its 10mW telemetry output ensures two-way communication is maintained, providing critical flight data back to the transmitter. The integrated status LED simplifies setup and troubleshooting during installation.
Additional Information
| Weight | 0.0022 kg |
|---|---|
| Dimensions | 1.3 × 1.1 × 0.3 cm |
