RadioMaster RP1 ExpressLRS Nano Receiver
The RadioMaster RP1 is a compact, high-performance 2.4GHz ExpressLRS Nano Receiver designed for ultra-low latency FPV racing and long-range applications. Featuring a built-in TCXO for frequency stability and WiFi for easy firmware updates via WebUI.
Features
- ExpressLRS 2.4GHz open-source protocol for ultra-low latency and long-range performance.
- Built-in TCXO ensures stable signal frequency and accuracy in all flight conditions.
- Integrated WiFi and WebUI for simple, wireless firmware updates and configuration.
- Compact footprint (13x11x3 mm) and ultra-lightweight (2.2g) for micro builds and racing drones.
- Supports refresh rates from 25Hz to 500Hz via CRSF bus interface for maximum responsiveness.
Out of stock

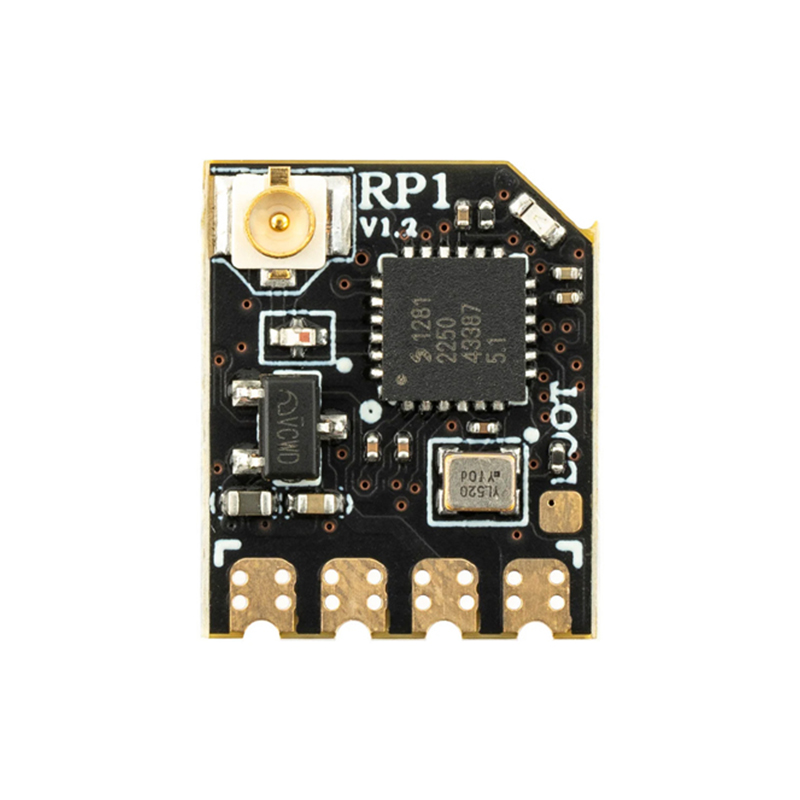

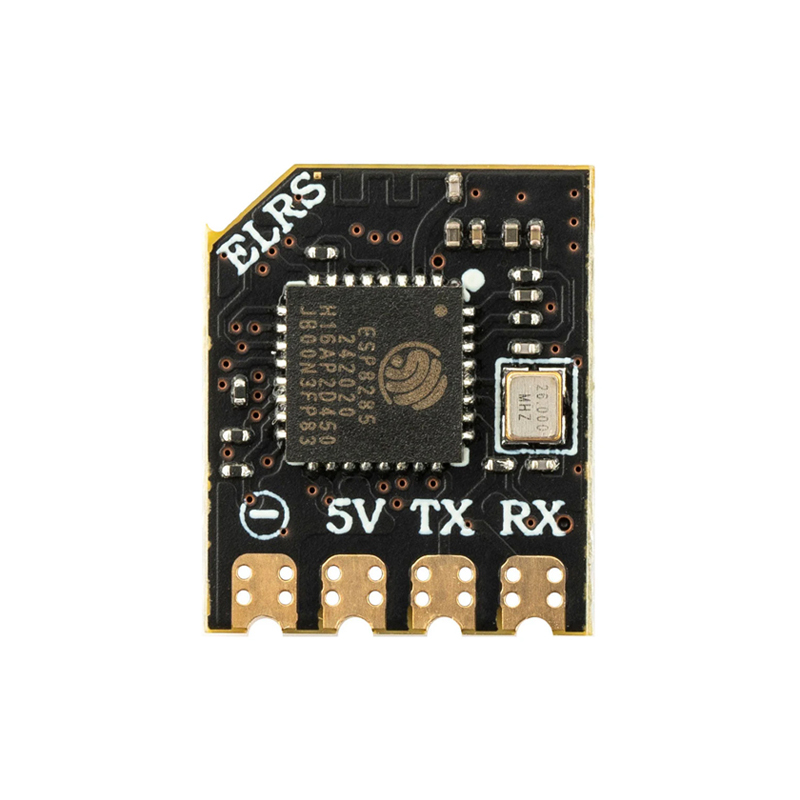

The RadioMaster RP1 Nano Receiver leverages the ESP8285 MCU and Semtech SX1281 RF chip to deliver the high-speed, low-latency communication demanded by modern FPV racing and long-range pilots. Its design prioritizes signal integrity and stability, with a temperature-compensated crystal oscillator (TCXO) maintaining precise frequency control across varying environmental conditions.

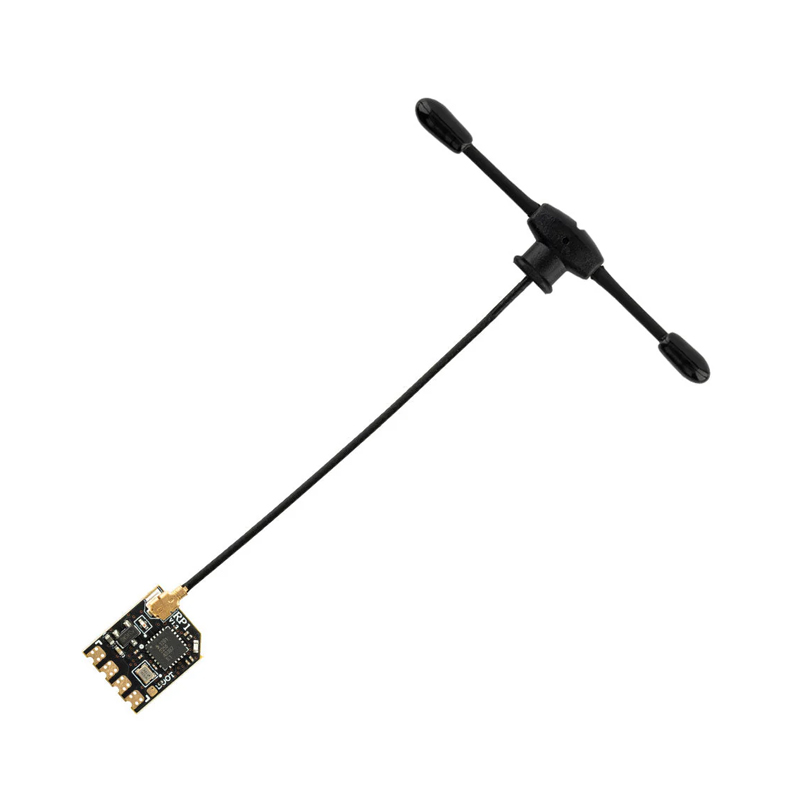

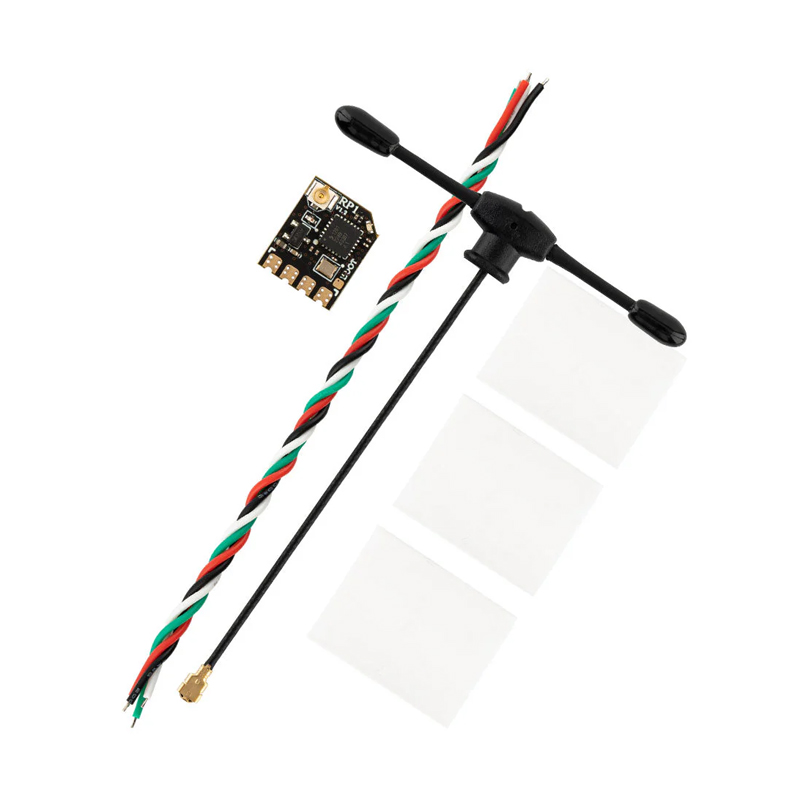

With a built-in WiFi module, the receiver provides a seamless setup and maintenance experience, allowing pilots to access its WebUI for configuration and firmware flashing without the need for physical data cables. The included 65mm U.FL T-style antenna offers a flexible and robust RF link, optimized for the 2.4GHz band. Its minimal weight and size make it an ideal choice for weight-sensitive micro drones and compact builds where every gram counts.
Additional Information
| Weight | 0.0022 kg |
|---|---|
| Dimensions | 1.3 × 1.1 × 0.3 cm |
