RadioLink CrossFlight Flight Controller
RadioLink CrossFlight Flight Controller - Image 2
SKU: DRFC-1984
📋 GST Invoice Available

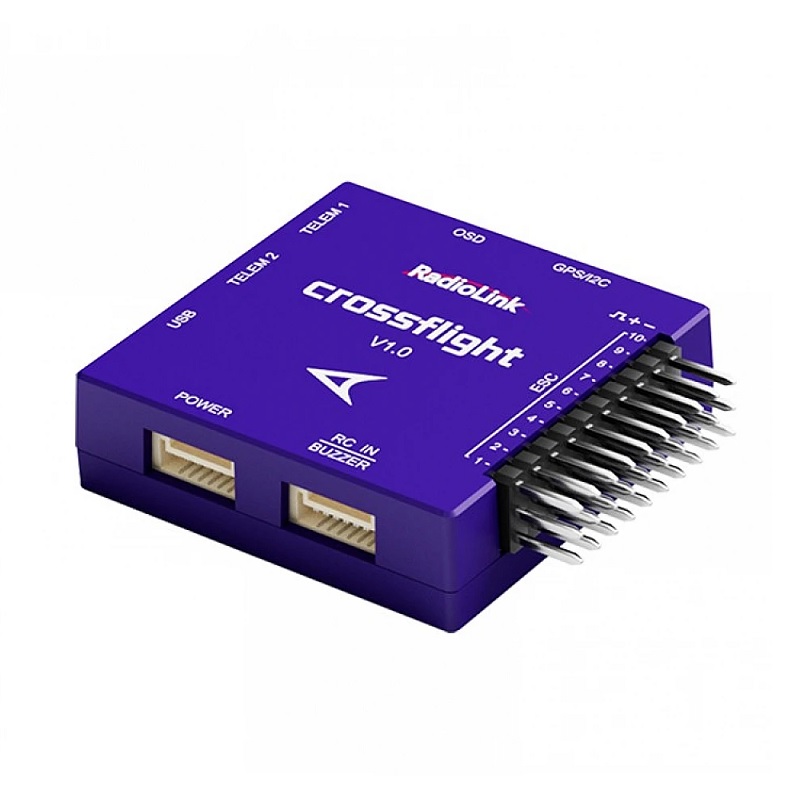

RadioLink CrossFlight Flight Controller

₹6,359.00 (Inclusive of all taxes)
Out of Stock

The RadioLink CrossFlight Flight Controller is a high-performance autopilot board built around the HC32F4A0PITB processor, designed for multirotor drones requiring precise control. It supports a wide 2-12S LiPo input range and integrates essential peripherals for advanced flight management and telemetry.

Features

  • HC32F4A0PITB processor for robust flight control and navigation.
  • Extensive 2-12S LiPo input voltage range for compatibility with a wide array of power systems.
  • Integrated 90A power module input and regulated 5.1V/2.5A BEC for peripheral power.
  • 10 PWM outputs support complex multirotor and fixed-wing configurations.
  • Compact 39.7×39.7mm footprint with USB Type-C connectivity for easy integration and setup.

Out of stock

Description

The RadioLink CrossFlight Flight Controller is engineered as a central hub for sophisticated drone platforms, leveraging the HC32F4A0PITB microcontroller to handle complex flight algorithms and sensor fusion. Its design prioritizes reliability across a broad operational envelope, from -40°C to 80°C, ensuring performance in demanding environmental conditions.

This controller provides a comprehensive suite of connectivity, including multiple telemetry ports (TELEM1 & TELEM2), an OSD port for on-screen display integration, and an I2C transfer board for expanding sensor capabilities. The integrated power management system, featuring a 90A-capable input and a stable 5.1V BEC, simplifies wiring and enhances system reliability for FPV, aerial photography, and autonomous drone applications.

Key Features

  • High-performance HC32F4A0PITB flight control processor.
  • Broad 2-12S (approx. 6V to 50.4V) LiPo battery input range.
  • Onboard 5.1V/2.5A BEC for powering receivers, servos, and FPV gear.
  • 10-channel PWM/SBUS output for complex multirotor and fixed-wing models.
  • USB Type-C interface for firmware updates and configuration.
  • Extended operating temperature range from -40°C to 80°C.
  • Integrated MicroSD (TF card) slot for high-rate data logging.
  • Compact and lightweight design (54g) for space-constrained builds.

Applications

  • Advanced FPV racing and freestyle drones requiring precise flight control and data logging.
  • Aerial photography and cinematography platforms utilizing gimbals and complex payloads.
  • Heavy-lift and industrial drones operating on high-cell-count (6S-12S) battery packs.
  • Fixed-wing UAVs and VTOL (Vertical Take-Off and Landing) aircraft needing multiple servo outputs.
  • Research and development platforms for autonomous flight and sensor integration testing.

Technical Specifications

Item TypeFlight Controller
ProcessorHC32F4A0PITB
Input Voltage2 to 12S LiPo
Input Current90A
Output Voltage (BEC)5.1V
Output Current (BEC)2.5A
PWM Outputs10
USB InterfaceUSB Type-C
USB Input Voltage5V ±0.3V
Operating Temperature-40°C to 80°C
Weight54 g
Dimensions (L x W x H)39.7 x 39.7 x 13 mm

Frequently Asked Questions

What is the maximum battery configuration supported by the CrossFlight Flight Controller?

The CrossFlight Flight Controller supports a wide input voltage range from 2S to 12S LiPo batteries. This corresponds to approximately 6V to 50.4V, making it suitable for everything from lightweight builds to high-voltage, heavy-lift industrial drones. Always ensure your connected power module is rated for the full voltage and current of your chosen battery pack.

How many motors or servos can I connect to this flight controller?

This controller provides 10 PWM outputs, allowing you to control complex multirotor configurations (such as hexacopters or octocopters) or fixed-wing aircraft with multiple servos for ailerons, elevators, rudders, and flaps. The outputs are configurable via the flight control software to match your specific airframe type.

Does the CrossFlight FC have an onboard BEC for powering accessories?

Yes, it includes a regulated 5.1 Volt Battery Eliminator Circuit (BEC) capable of delivering up to 2.5 Amps of continuous current. This is sufficient to power FPV video transmitters, receivers, micro servos, and other 5V peripherals directly, simplifying your build's wiring and reducing the need for external voltage regulators.

What flight control firmware is compatible with the RadioLink CrossFlight?

The CrossFlight is designed to run advanced open-source flight control firmware such as ArduPilot or PX4, which support the HC32F4A0PITB processor. Its extensive I/O, including multiple telemetry ports and an I2C bus, makes it ideal for autonomous missions, data logging via the MicroSD slot, and integration with companion computers or additional sensors.

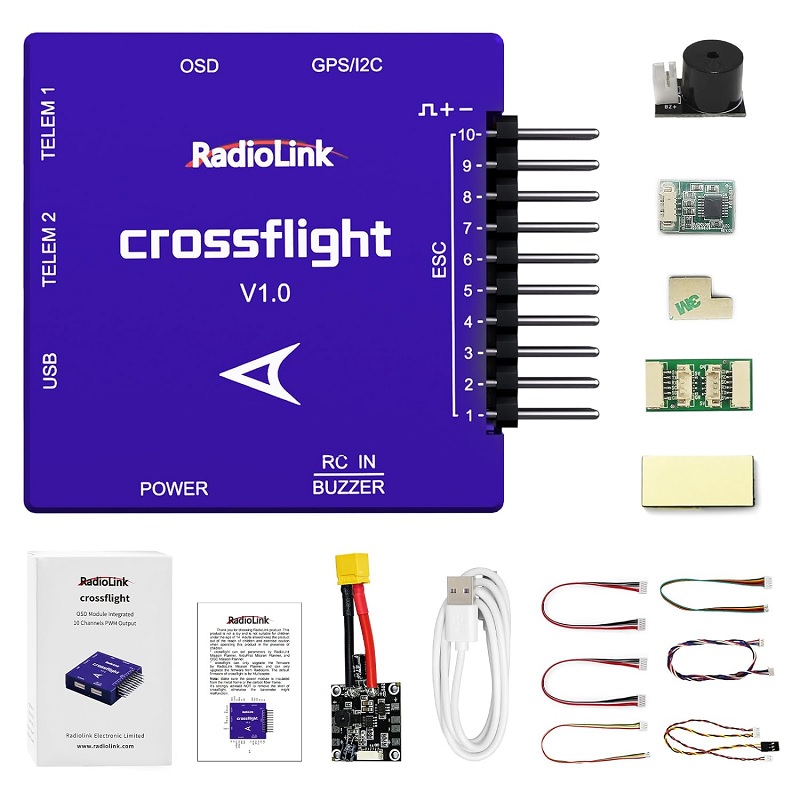

Package Includes

  • 1 x RadioLink CrossFlight Flight Controller
  • 1 x Power Module
  • 1 x Buzzer
  • 1 x USB Cable
  • 1 x I2C Transfer Board
  • 1 x FC Status Indicate LED
  • 1 x 4G TF (MicroSD) Card
  • 1 x Buzzer & Receiver Connect Cable
  • 1 x Power Module Connect Cable
  • 1 x I2C Transfer Board Connect Cable
  • 1 x OSD Port Connect Cable
  • 2 x TELEM1 & TELEM2 Ports Connect Cable
  • 1 x FC Status Indicate LED Cable
  • 1 x Double-sided Adhesive Tape
  • 1 x Type-C Cable
  • 1 x User Manual

Additional Information

Weight 0.054 kg
Dimensions 3.97 × 3.97 × 1.3 cm
