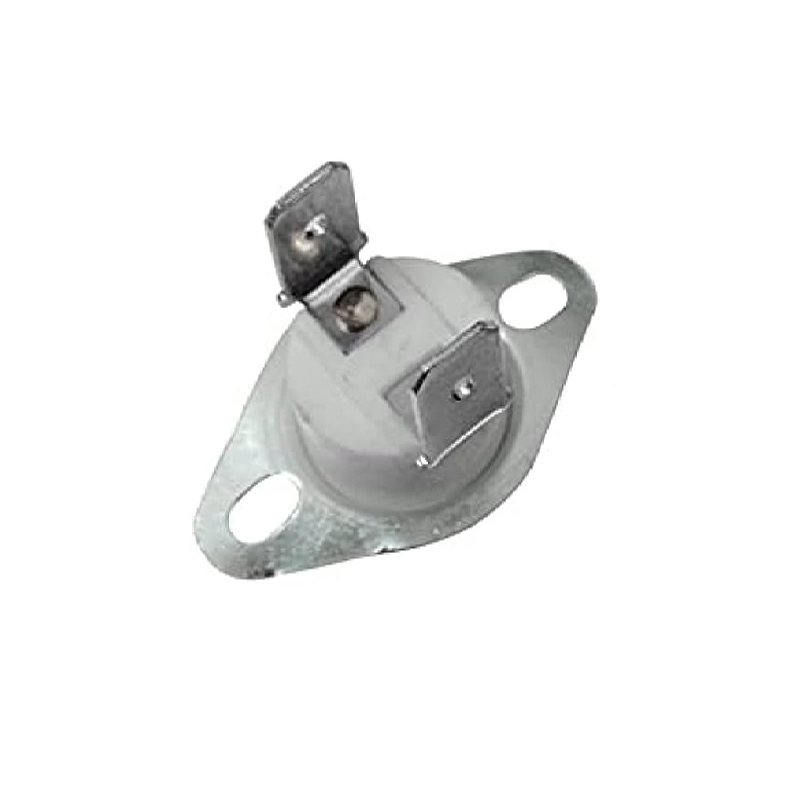

Generic KSD302 Ceramic Temperature Control Switch - 120°C NC Thermostat, 250V 10A
The KSD302 is a ceramic-housed, normally closed (NC) thermal switch designed for reliable temperature control up to 120°C. It is rated for 250V AC/DC and 10A loads, making it suitable for direct integration into heating elements, appliances, and power control circuits.
Features
- Ceramic housing for high thermal stability and electrical insulation.
- Normally Closed (NC) contact opens upon reaching the 120°C setpoint.
- Rated for 250V and 10A, suitable for direct control of heating loads.
- Compact and robust mechanical snap-action design.
- Ideal for over-temperature protection and basic thermal regulation.
Out of stock
The KSD302 is a bimetallic disc thermostat, where a temperature-sensitive metal disc snaps to reverse its curvature at a precise calibration point (120°C), mechanically opening the electrical contacts. This simple, reliable mechanism requires no external power, making it a fail-safe solution for over-temperature protection.
Housed in a durable ceramic body, the switch offers excellent electrical isolation and thermal conductivity. The normally closed configuration ensures the controlled circuit remains live until the temperature threshold is exceeded, after which it breaks the connection to prevent damage or hazardous conditions.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 3 × 6 cm |
