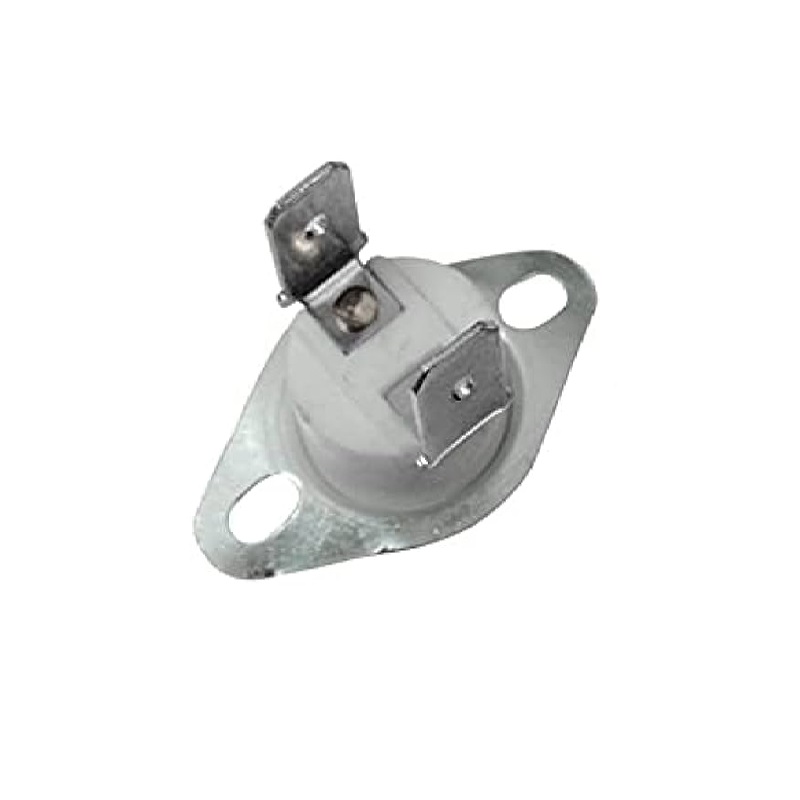

Generic KSD302 Ceramic Temperature Controlled Switch Thermostat - Normally Open NC, 100°C, 250V 10A
The Generic KSD302 is a ceramic-encased, normally-open (NC) thermal switch designed for precise temperature control at 100°C. It is rated for 250V AC/DC and 10A loads, making it suitable for direct integration into heating elements, appliances, and power control circuits.
Features
- Ceramic housing for electrical insulation and thermal stability
- Normally Open (NO) contact configuration switches at 100°C setpoint
- High-current rating of 10A at 250V AC/DC for direct load control
- Compact and robust design for reliable operation in appliances
- Simple two-wire installation for temperature-based circuit interruption
Out of stock
The KSD302 is a bimetallic disc thermostat housed in a durable ceramic body. The device operates on a snap-action principle: when the ambient temperature reaches its calibrated setpoint of 100°C, the internal bimetallic disc deforms, causing the normally open (NO) contacts to close (or, conversely, a normally closed configuration to open, depending on wiring). This action directly controls the connected circuit without requiring an external power supply.
Its ceramic construction provides excellent electrical isolation, flame retardancy, and resistance to thermal shock, ensuring long-term reliability in demanding environments. The 250V 10A rating allows it to be used as a primary safety cut-off or control element in various resistive heating applications and power equipment.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
