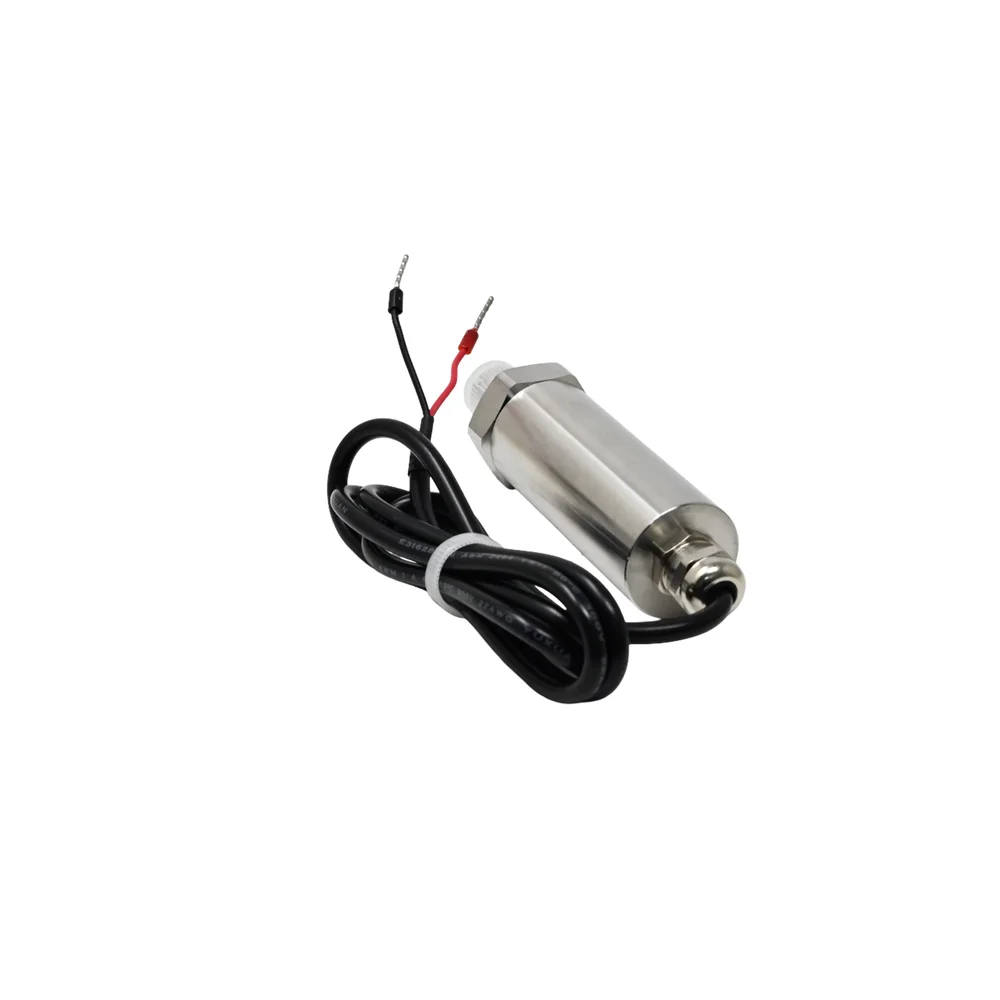

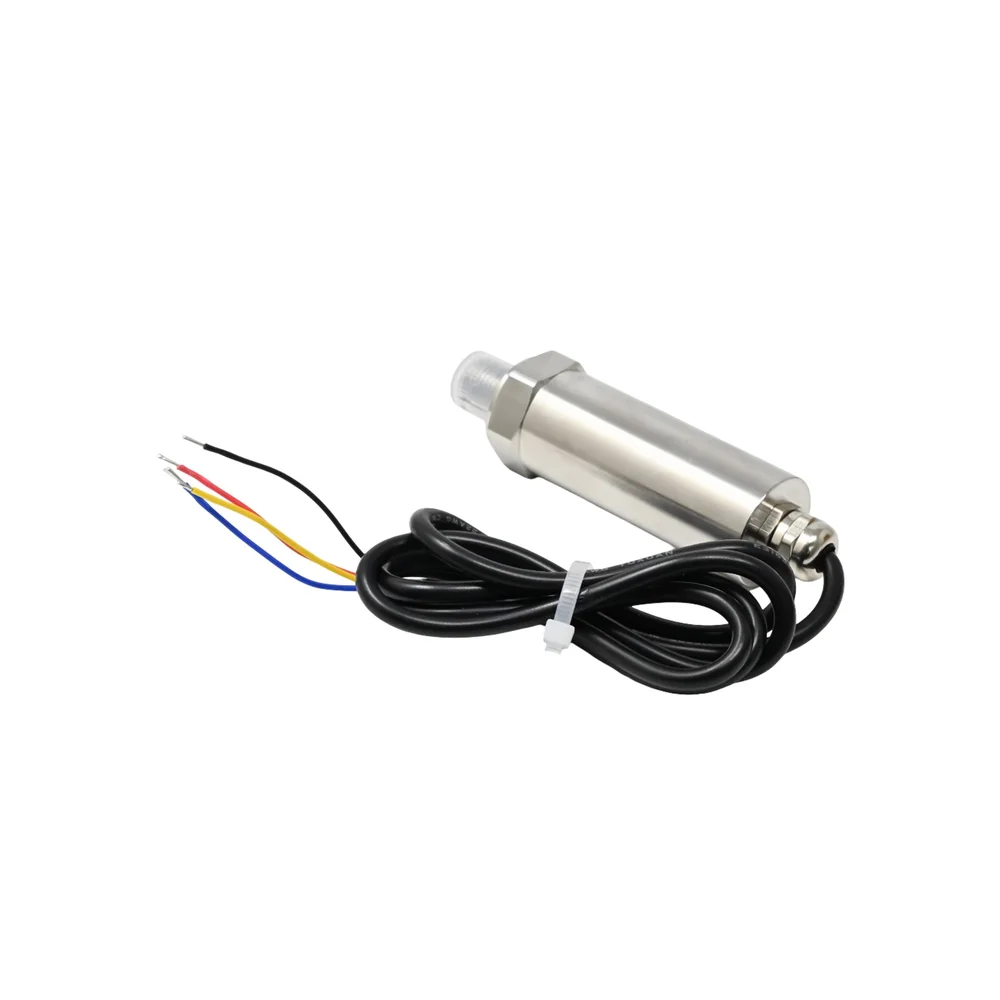

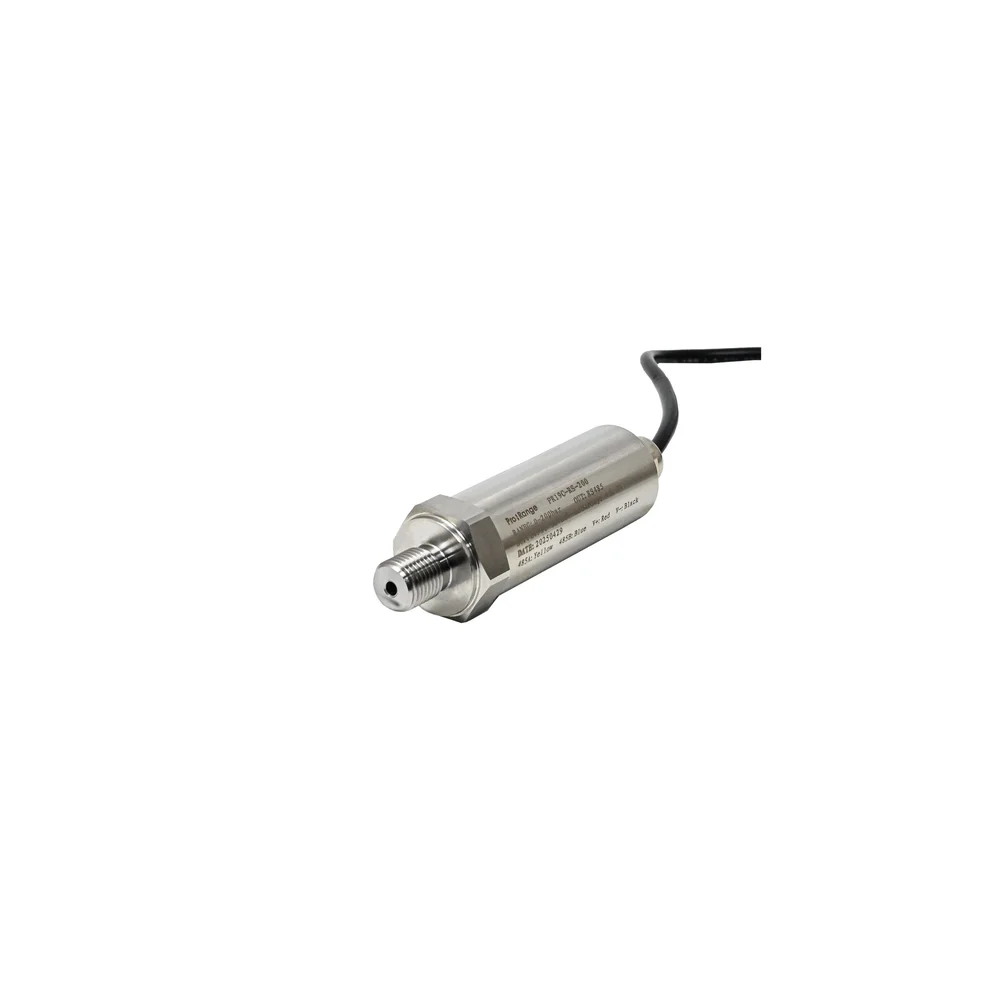

Pro-Range PR19C-RS-200 Pressure Sensor 0-20 MPa RS485 Output - G1/4 Thread w/ 1m Cable
The Pro-Range PR19C-RS-200 is a digital pressure transducer with a 0-20 MPa range and RS485 Modbus output, designed for direct integration into industrial PLCs, SCADA systems, and hydraulic monitoring networks. Its G1/4 threaded port and 1-meter cable facilitate robust installation in demanding process environments.
Features
- High-pressure measurement range from 0 to 20 MPa (0 to ~2900 psi).
- Digital RS485 Modbus output for noise-immune, long-distance communication.
- Industrial-grade G1/4 threaded process connection for secure sealing.
- Wide 10-32 VDC operating voltage compatible with standard industrial power supplies.
- Compact, durable stainless steel housing suitable for harsh industrial environments.
Out of stock
The PR19C-RS-200 employs a high-stability sensing element, likely a piezoresistive strain gauge, to deliver accurate pressure readings across its full 0-20 MPa span. The integrated signal conditioner converts the analog measurement into a digital signal transmitted via an RS485 interface, supporting Modbus RTU protocol for seamless integration with industrial automation systems, data loggers, and HMIs.
Constructed with a robust stainless steel body, this sensor is engineered for durability in applications involving hydraulic fluids, compressed gases, and process liquids. Its compact form factor (30mm diameter) and standard G1/4 thread allow for versatile mounting directly into pipelines, manifolds, or pressure vessels, making it a reliable component for critical pressure monitoring and control.
Additional Information
| Weight | 0.21 kg |
|---|
