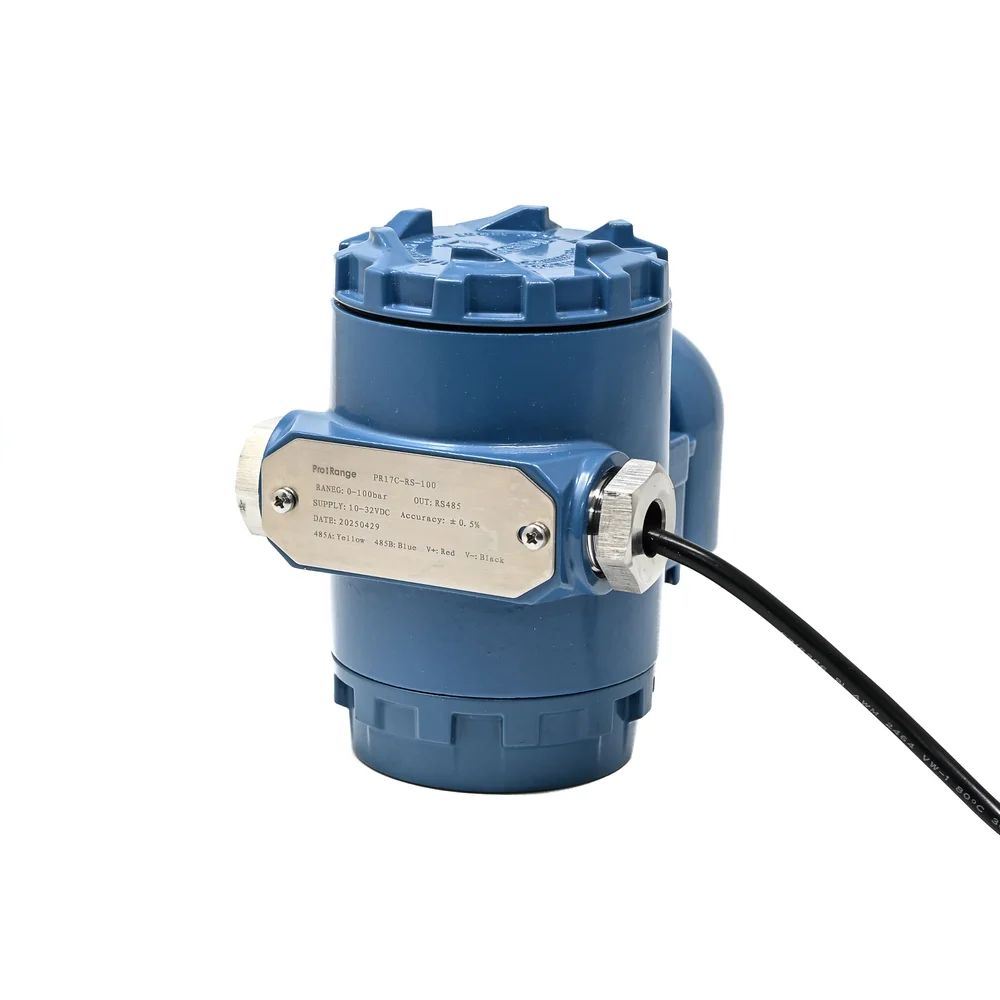

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable

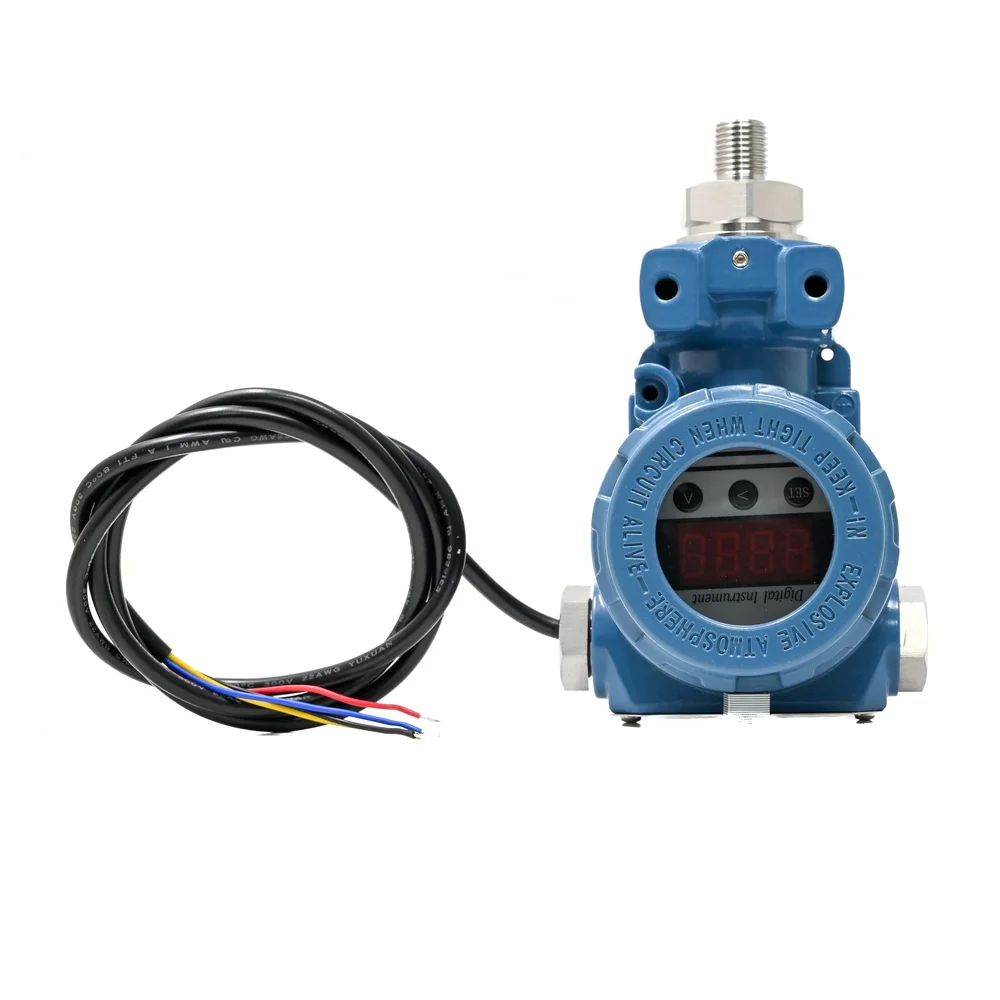

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 2

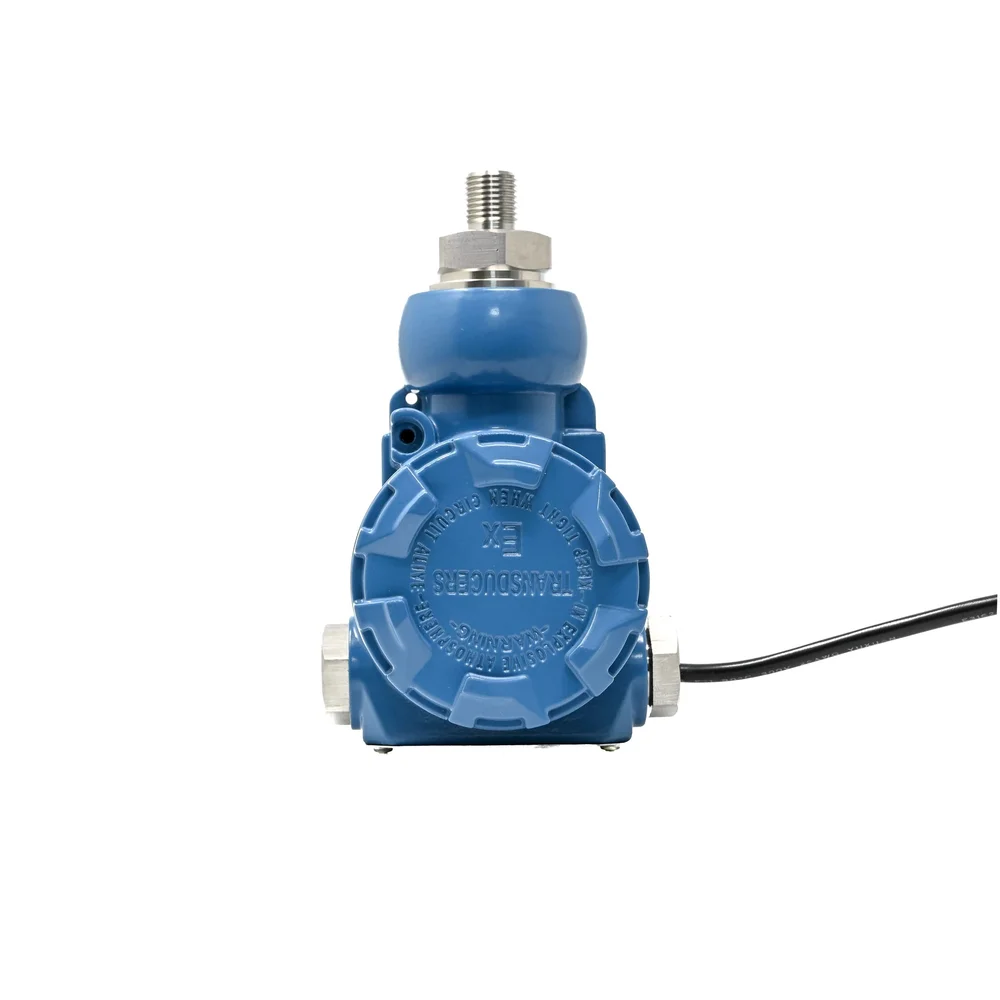

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 3

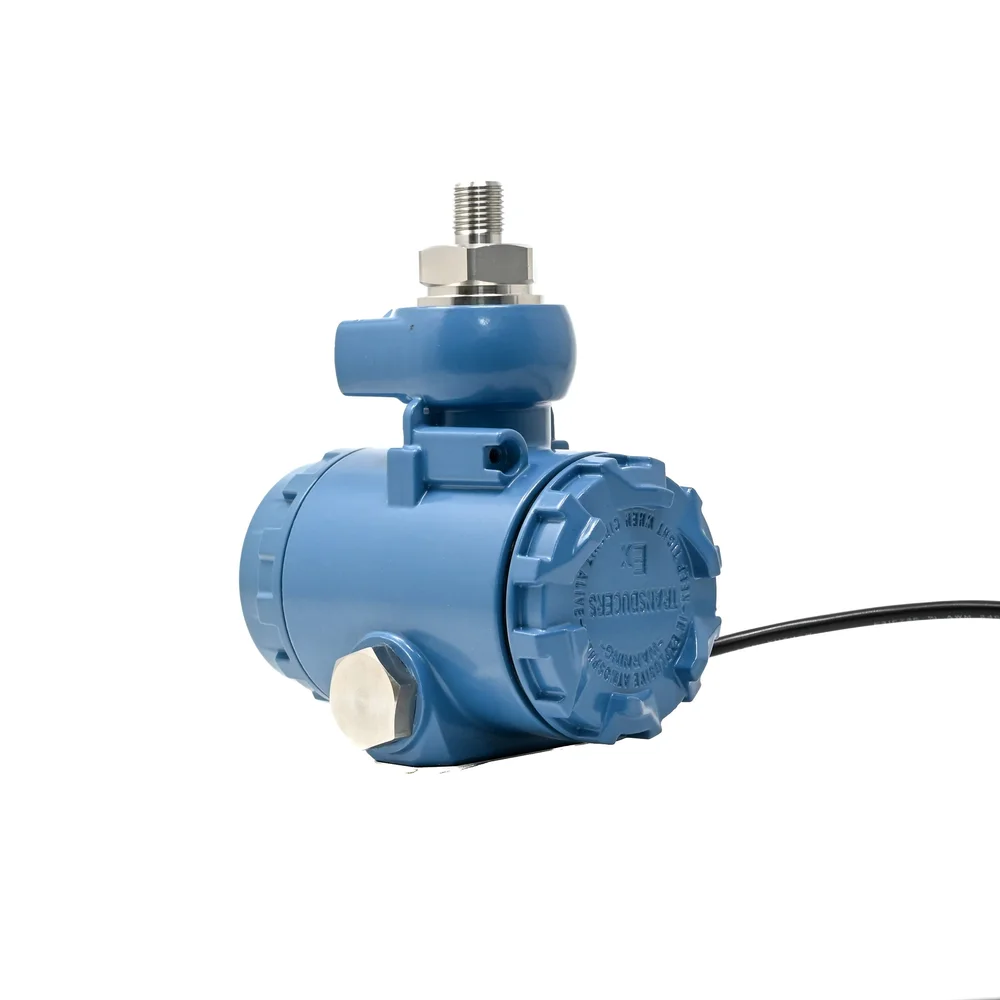

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 4

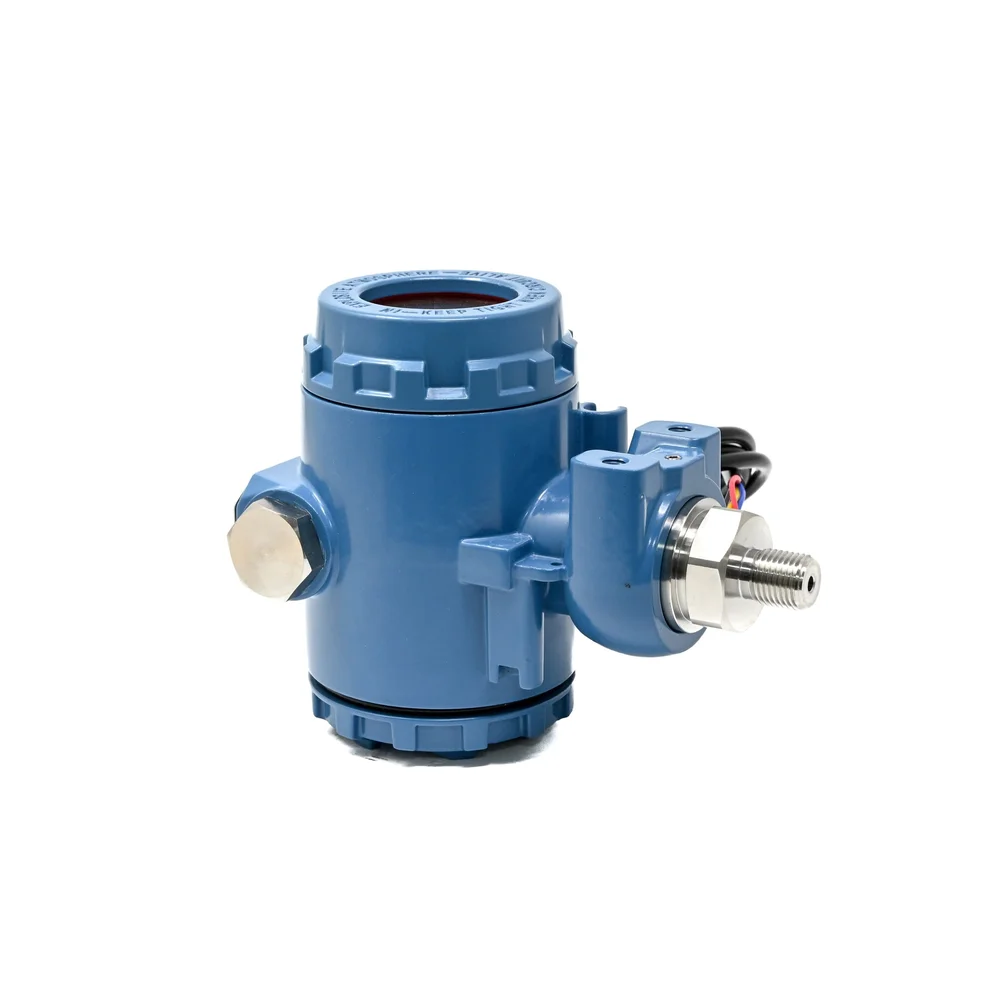

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 5

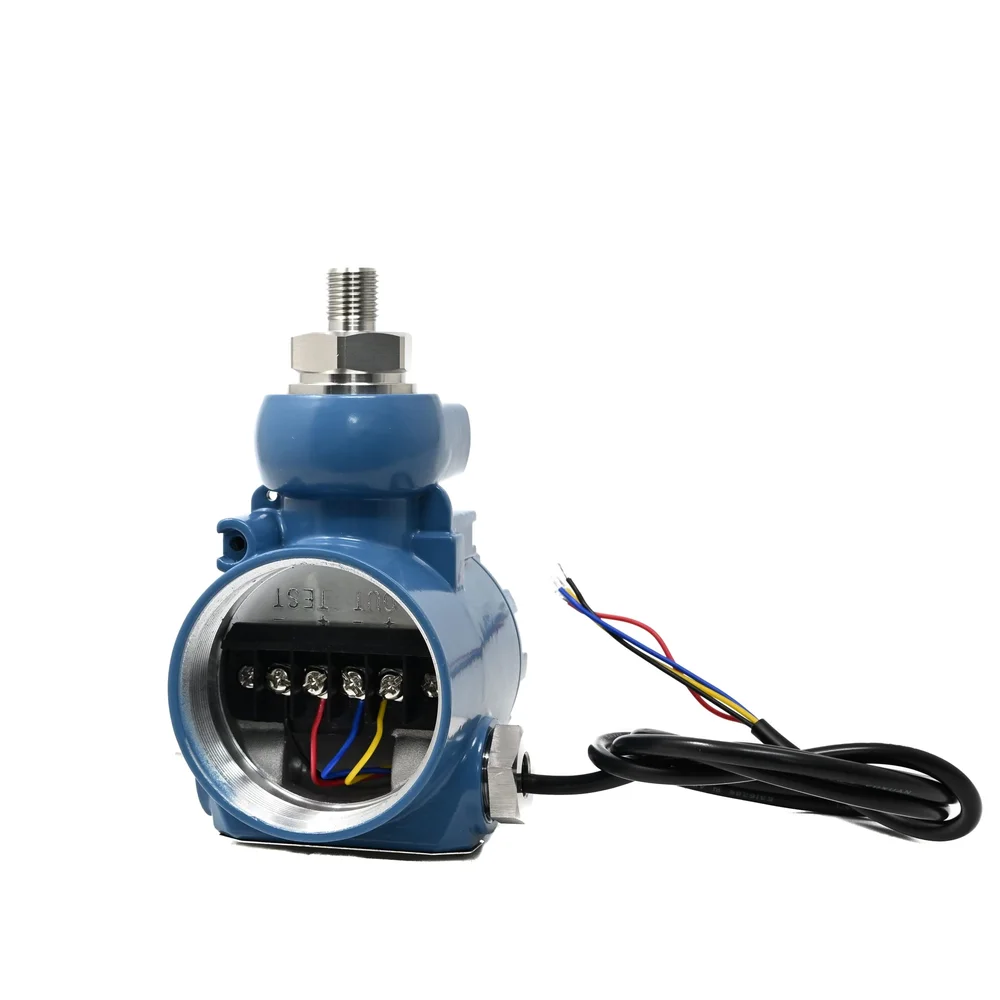

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 6

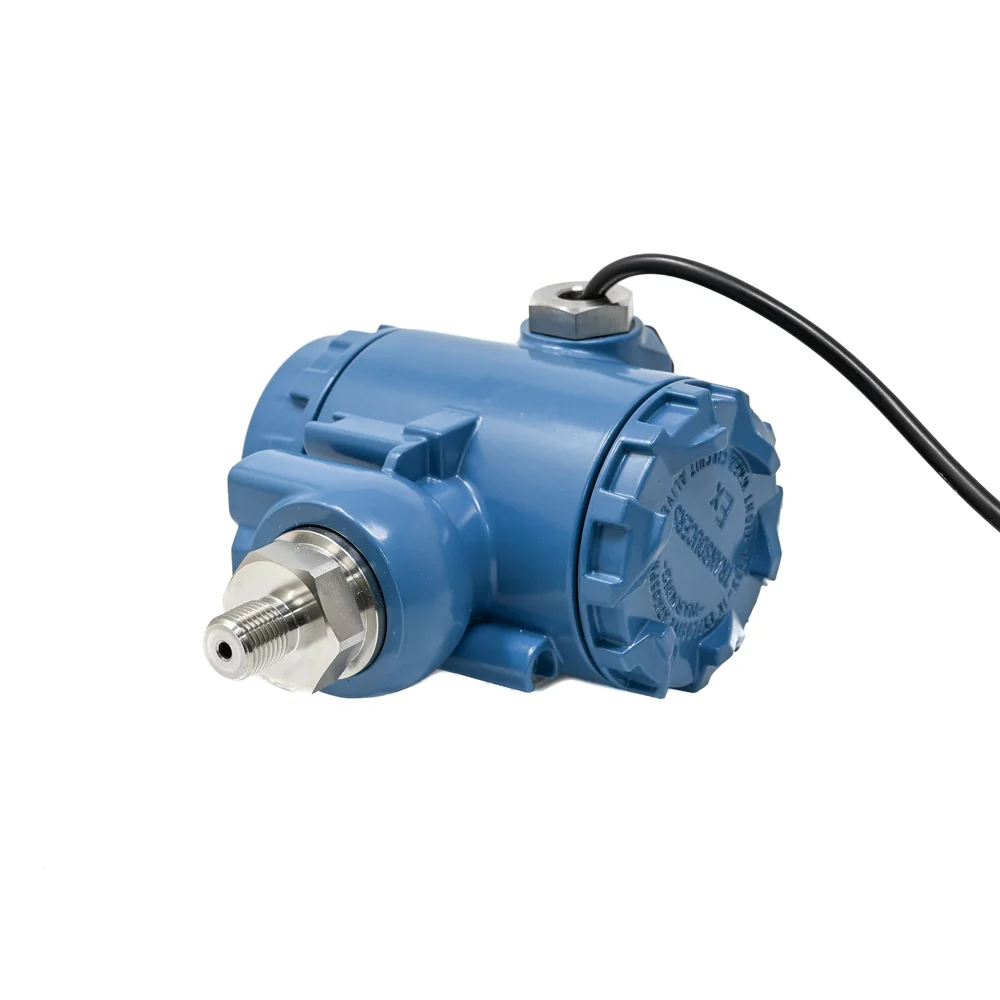

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 7

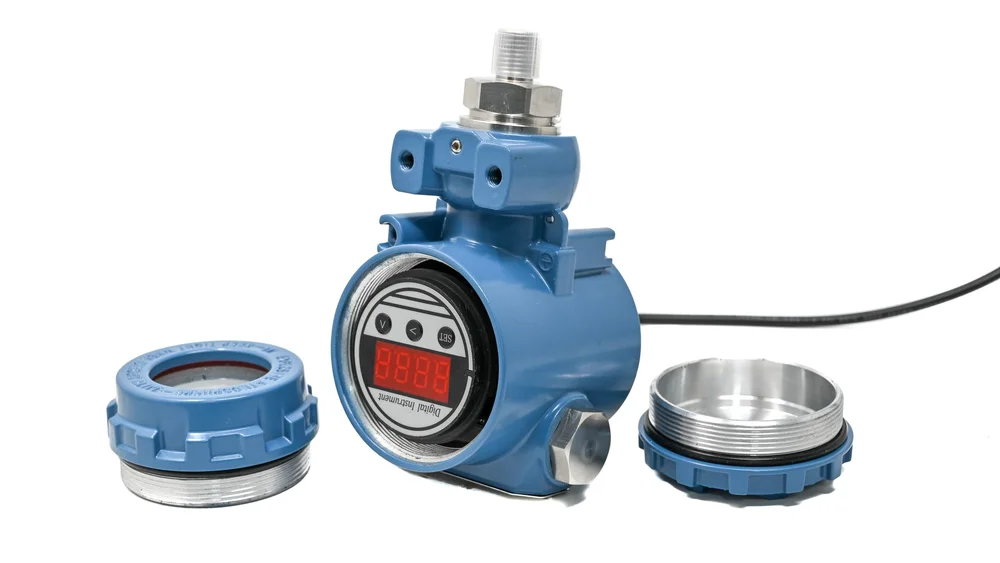

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable - Image 8
SKU: SENS-2203
📋 GST Invoice Available

Pro-Range PR17C-RS-100 Digital Pressure Gauge - 0-10 MPa, RS485, G1/4 Thread, 1m Cable

₹5,209.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range PR17C-RS-100 is a digital pressure transmitter designed for industrial monitoring, providing a 0-10 MPa measurement range with an RS485 Modbus communication interface for direct integration into PLCs, SCADA systems, and data acquisition units.

Features

  • High-accuracy digital pressure measurement up to 10 MPa (100 bar)
  • RS485 Modbus communication for industrial network integration
  • Standard G1/4 male thread for direct pipeline mounting
  • Wide 12-24 VDC supply voltage for flexible power sourcing
  • Includes a 1-meter shielded cable for immediate installation

Out of stock

Description

The PR17C-RS-100 digital pressure gauge utilizes a precision strain gauge sensor to deliver accurate and stable pressure readings for hydraulic systems, process control, and industrial machinery. Its robust housing ensures reliable performance in demanding environments.

Featuring an RS485 interface with Modbus protocol, this transmitter enables seamless communication with industrial controllers and monitoring software, allowing for remote data logging and system automation. The integrated 1-meter cable provides convenient connection to terminal blocks or junction boxes.

Key Features

  • Industrial-grade pressure sensing with high long-term stability
  • RS485 Modbus RTU protocol for reliable serial communication
  • Corrosion-resistant construction suitable for water, oil, and compatible media
  • Wide operating voltage range (12-24 VDC) compatible with standard industrial power supplies
  • Compact form factor (120 x 123 mm body) for space-constrained installations
  • Standard G1/4 BSPP thread ensures a secure, leak-proof connection

Applications

  • Hydraulic system pressure monitoring and control
  • Industrial process automation and pump station supervision
  • Water treatment plant pipeline pressure measurement
  • Compressed air system and pneumatic circuit monitoring
  • Test bench and machinery condition monitoring

Technical Specifications

Model NumberPR17C-RS-100
Measurement Range0 - 10 MPa
Output SignalRS485 (Modbus)
Supply Voltage12 - 24 VDC
Thread SizeG1/4 (BSPP)
Cable Length1 meter
Body Dimensions (WxL)120 mm x 123 mm
Weight814 g

Frequently Asked Questions

What is the communication protocol used by the RS485 interface on this pressure gauge?

The PR17C-RS-100 utilizes the Modbus RTU protocol over its RS485 interface. This standard industrial protocol allows for easy integration with Programmable Logic Controllers (PLCs), SCADA systems, and data acquisition software that support Modbus communication for reading pressure values and device status.

What media is this pressure sensor compatible with?

This pressure transmitter is designed for use with non-corrosive, compatible liquids and gases such as water, hydraulic oil, and air. The sensor's construction is corrosion-resistant, but for specific aggressive media, consulting the manufacturer's datasheet for material compatibility is recommended.

How do I power and wire the PR17C-RS-100 pressure gauge?

The device operates on a 12-24 VDC power supply, which is typically connected via the included 1-meter cable along with the RS485 data lines (A/B). The cable wires must be connected to a suitable DC power source and an RS485 network terminal, observing correct polarity for power and the A/B pair for communication.

Can the measurement range of this sensor be customized?

Yes, the Pro-Range series often supports customization. Parameters like pressure range (e.g., 0-25 MPa), output signal (4-20mA or RS485), and thread size (G1/2, M20x1.5) can potentially be specified. Contact the supplier or manufacturer with your specific requirements for a custom-configured unit.

Package Includes

  • 1 x Pro-Range PR17C-RS-100 Digital Pressure Gauge
  • 1 x 1-meter pre-wired connection cable

Additional Information

Weight 0.814 kg
Dimensions 12.3 × 12 cm
