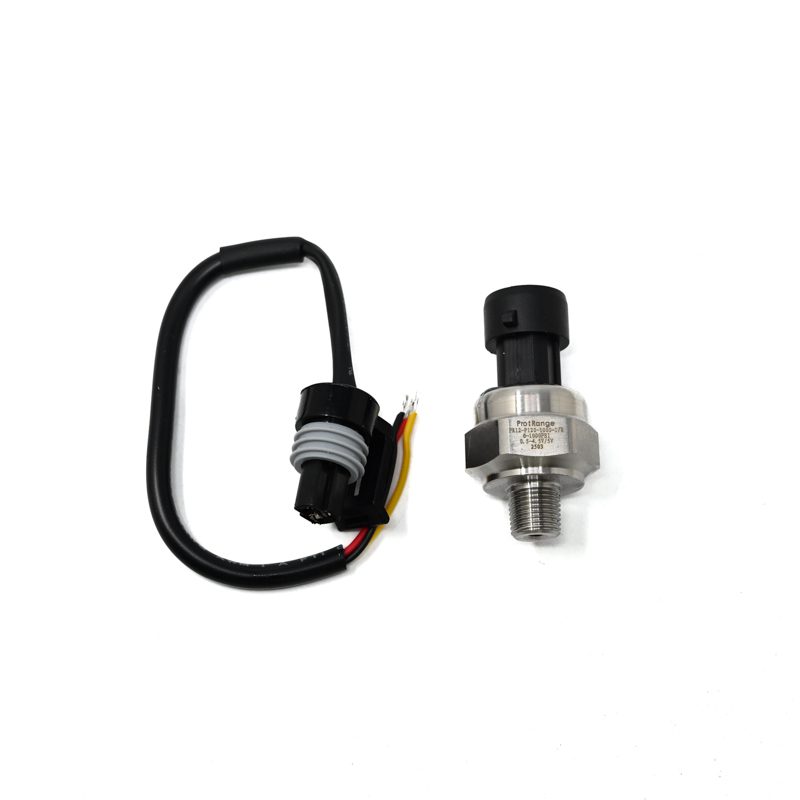

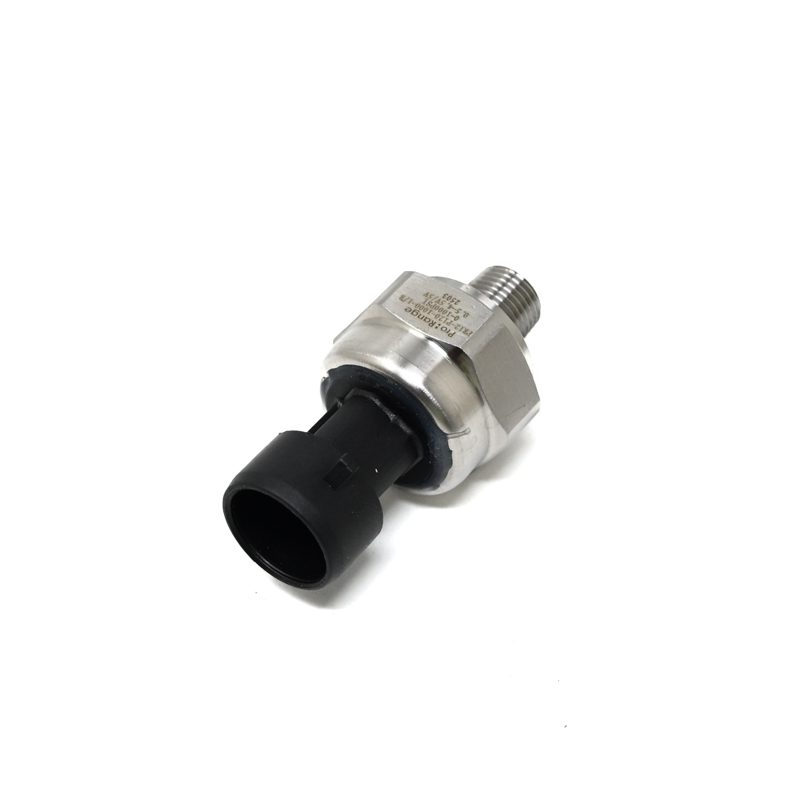

Pro-Range PR12-P120-1000-1/8 Pressure Transducer, 0-1000psi, 0.5-4.5V Output, NPT1/8 Thread
The Pro-Range PR12-P120-1000-1/8 is a compact pressure transducer delivering a 0.5-4.5V analog output signal for a 0-1000 psi measurement range. Its NPT 1/8 threaded port and 5V DC supply make it compatible with industrial PLCs, data acquisition systems, and microcontroller platforms like Arduino for precise pressure monitoring.
Features
- 0-1000 psi measurement range with high linearity and stability.
- 0.5-4.5V ratiometric analog output signal (requires 5V DC supply).
- NPT 1/8 male threaded port for secure, leak-resistant installation.
- Compact, robust housing suitable for industrial and automotive environments.
- Fast response time for dynamic pressure monitoring applications.
Out of stock
The Pro-Range PR12-P120-1000-1/8 pressure transducer utilizes a high-stability sensing element, typically a piezoresistive or thin-film strain gauge, to convert applied pressure into a precise electrical signal. The output is a ratiometric 0.5-4.5V analog voltage directly proportional to the pressure, simplifying integration with ADCs on microcontrollers or industrial signal conditioners.
Engineered for demanding applications, its durable construction ensures reliable performance across a wide operating temperature range. The NPT 1/8 threaded connection provides a standardized interface for integration into hydraulic, pneumatic, or process control systems requiring accurate and repeatable pressure measurement.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
