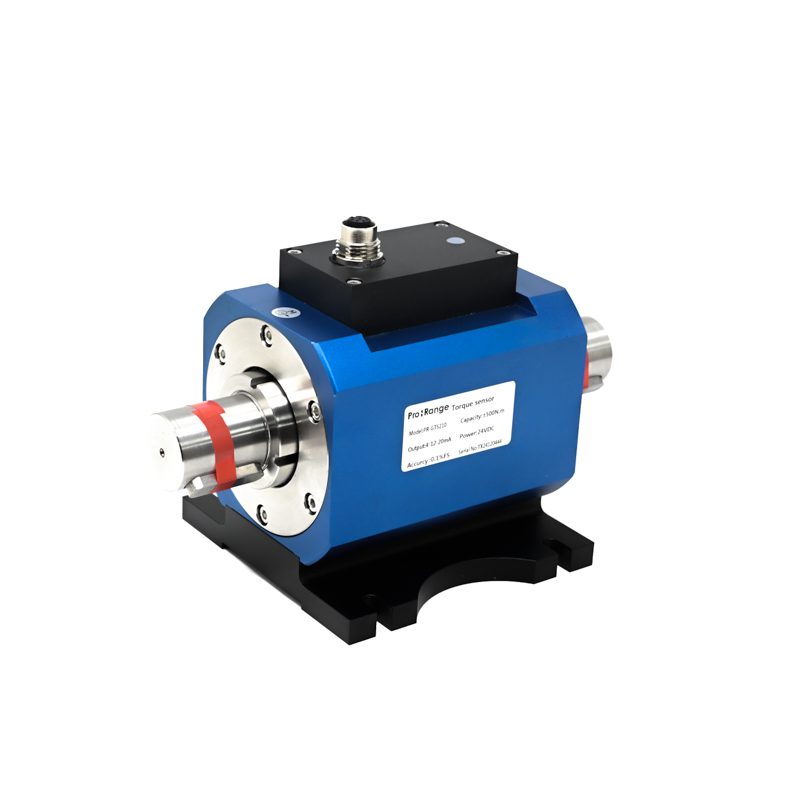

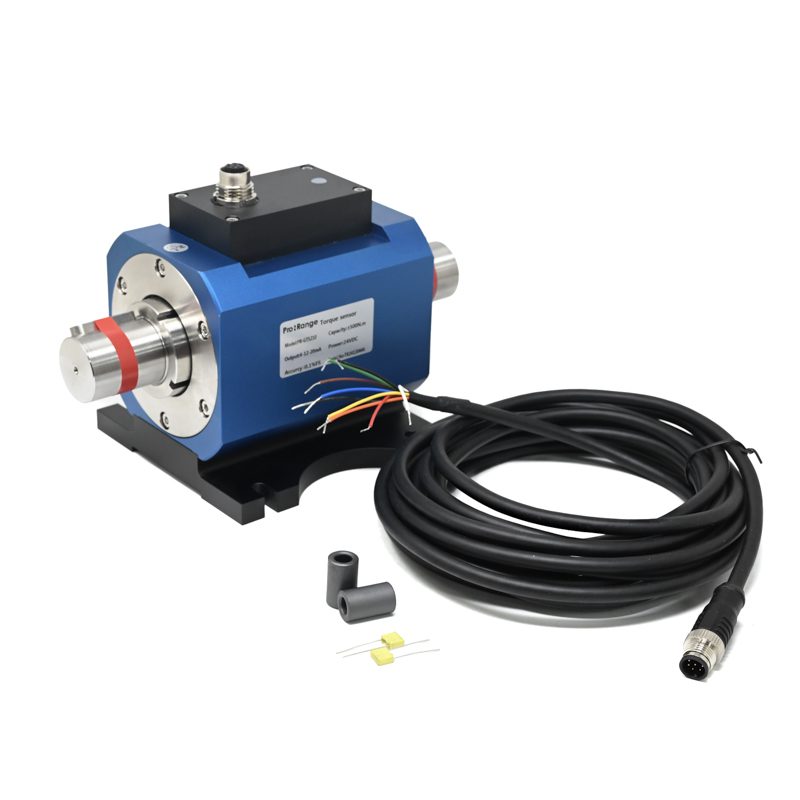

Pro-Range GTS210 Dynamic Torque Sensor 500Nm 15000RPM ±0.2% F.S - 4-20mA Output
The Pro-Range GTS210 is a high-performance dynamic torque sensor designed for industrial and automotive powertrain testing, offering a 500Nm capacity, ±0.2% F.S accuracy, and a 4-20mA output signal compatible with PLCs and data acquisition systems.
Features
- High-capacity torque measurement up to 500 Newton-meters (Nm).
- High standard accuracy of ±0.2% of full scale (F.S).
- Maximum rotational speed of 15,000 RPM for high-speed applications.
- Standard 4-20mA analog output; optional ±10V, RS485, and RS232 interfaces available.
- Constructed with a durable 17-4PH stainless steel shaft and aluminum alloy housing.
Out of stock
The Pro-Range GTS210 employs a non-contact sensing principle, typically using a magneto-elastic or optical method, to measure dynamic torque without physical wear, ensuring long-term reliability and bidirectional measurement capability. This design is ideal for monitoring rotating shafts in test stands, motor dynamometers, and transmission systems.
Engineered for demanding environments, the sensor operates from a 12-24VDC supply within a -20°C to +75°C temperature range. Its robust construction with a 17-4PH stainless steel shaft and aluminum alloy shell provides high torsional stiffness and resistance to industrial contaminants, making it suitable for integration into heavy-duty automotive, aerospace, and industrial machinery condition monitoring systems.
Additional Information
| Weight | 3.1 kg |
|---|---|
| Dimensions | 22 × 19 × 10 cm |
