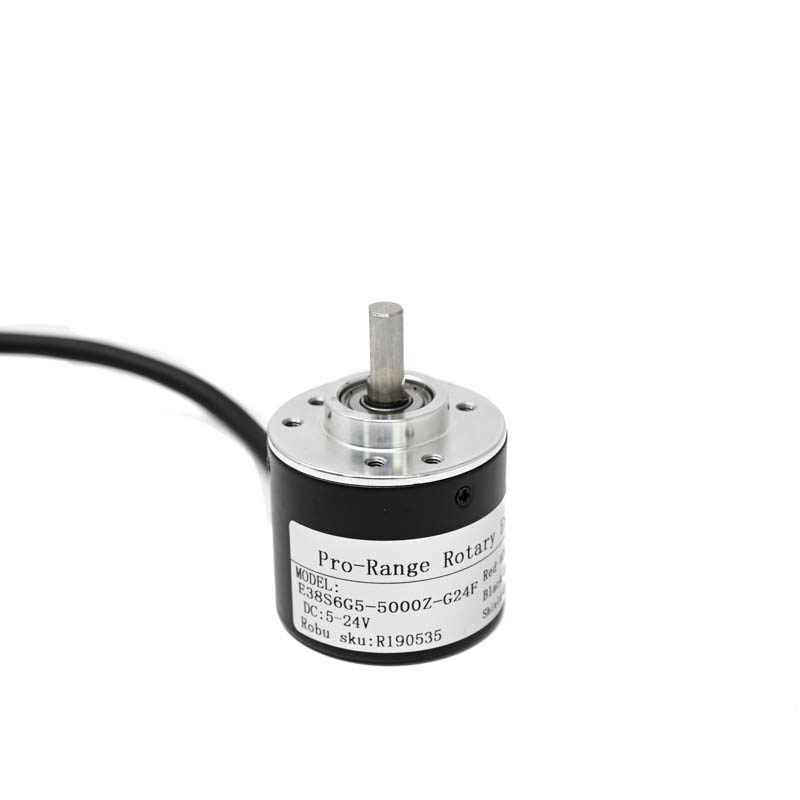

Pro-Range E38S6G5-5000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 5000 PPR

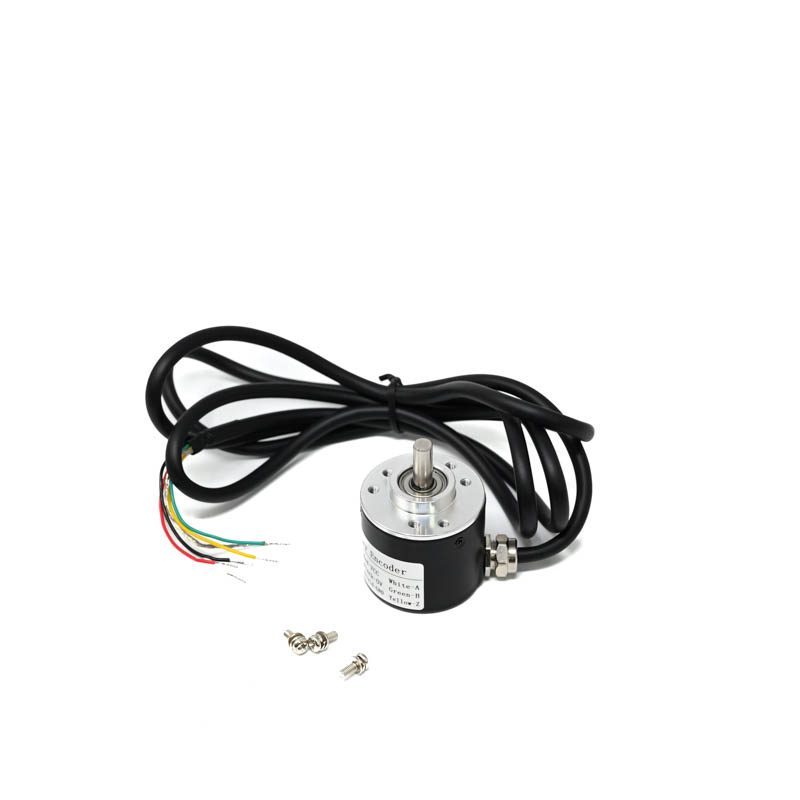

Pro-Range E38S6G5-5000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 5000 PPR - Image 2
SKU: SENS-2646
📋 GST Invoice Available

Pro-Range E38S6G5-5000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 5000 PPR

₹2,619.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E38S6G5-5000Z-G24F is a compact 38mm diameter incremental rotary encoder delivering 5000 pulses per revolution (PPR) via a photoelectric ABZ 3-channel output. It operates on a wide 5-24V DC supply, making it compatible with industrial PLCs, motion controllers, and stepper motor drivers for precise position and speed feedback.

Features

  • High-resolution 5000 PPR (Pulses Per Revolution) photoelectric encoder.
  • Compact 38mm diameter housing suitable for space-constrained installations.
  • Wide operating voltage range from 5V to 24V DC for flexible system integration.
  • ABZ 3-channel open-collector output for direction, position, and index sensing.
  • Robust construction designed for durability in industrial automation environments.

Out of stock

Description

The E38S6G5-5000Z-G24F encoder utilizes a contactless photoelectric sensing principle to generate precise quadrature (A/B) and index (Z) pulse trains. This method ensures reliable signal integrity and long operational life without mechanical wear, making it ideal for continuous motion control applications.

Engineered for industrial environments, its construction is optimized for shock and vibration resistance. The wide 5-24V DC input range allows direct interfacing with a variety of logic levels and industrial control systems, providing accurate feedback for closed-loop speed regulation and positional accuracy.

Key Features

  • High-resolution 5000 P/R (Pulses per Revolution) for precise angular measurement.
  • Contactless photoelectric sensing ensures reliable, long-life operation without mechanical degradation.
  • Wide operating voltage range (5-24V DC) for compatibility with diverse industrial and embedded systems.
  • ABZ three-phase open-collector output provides quadrature signals and a zero-index marker.
  • Compact 38mm diameter housing enables integration into space-limited machinery and motor assemblies.
  • Durable construction built to withstand typical industrial shock, vibration, and environmental contaminants.
  • High-speed capability with a rated speed of 6000 RPM for dynamic motion control applications.

Applications

  • Precision speed and position feedback for servo and stepper motor drives in CNC machinery.
  • Angular position sensing in industrial robotics, automated assembly arms, and rotary tables.
  • Closed-loop control and velocity monitoring in conveyor systems, printing presses, and textile machinery.
  • Integration into laboratory equipment, medical devices, and scientific instruments requiring precise rotary measurement.

Technical Specifications

BrandPro-Range
Model NumberE38S6G5-5000Z-G24F
TypeIncremental Rotary Encoder
Sensing PrinciplePhotoelectric
Resolution5000 PPR (Pulses Per Revolution)
Output Channels3 (ABZ)
Output TypeOpen Collector
Operating Voltage5V to 24V DC
Rated Speed6000 RPM
Housing Diameter38 mm
Shipping Weight0.143 kg

Frequently Asked Questions

What is the output signal type of this encoder?

The encoder provides an ABZ 3-channel open-collector output. Channels A and B produce quadrature square waves for direction and position, while the Z channel provides a single index pulse per revolution for a reference zero point.

What is the operating voltage range, and how do I interface it?

The encoder operates on a wide 5V to 24V DC supply. Connect the Vcc pin to your positive supply (within 5-24V), GND to ground, and the A, B, Z output pins to your controller's digital inputs, typically with pull-up resistors for the open-collector outputs.

What does 5000 PPR mean, and how is it used?

5000 PPR (Pulses Per Revolution) means the encoder generates 5000 pulses on the A (or B) channel per full 360-degree shaft rotation. This high resolution allows for precise angular position and speed calculation, essential for accurate motion control in CNC, robotics, and automation systems.

Is this encoder suitable for high-speed applications?

Yes, with a rated mechanical speed of 6000 RPM, this encoder is designed for dynamic motion control. The photoelectric sensing technology provides reliable signal integrity at high rotational speeds without the contact wear associated with mechanical encoders.

Package Includes

  • 1 x Pro-Range E38S6G5-5000Z-G24F Rotary Incremental Encoder

Additional Information

Weight 0.143 kg
Dimensions 8.5 × 8.5 × 6.5 cm
