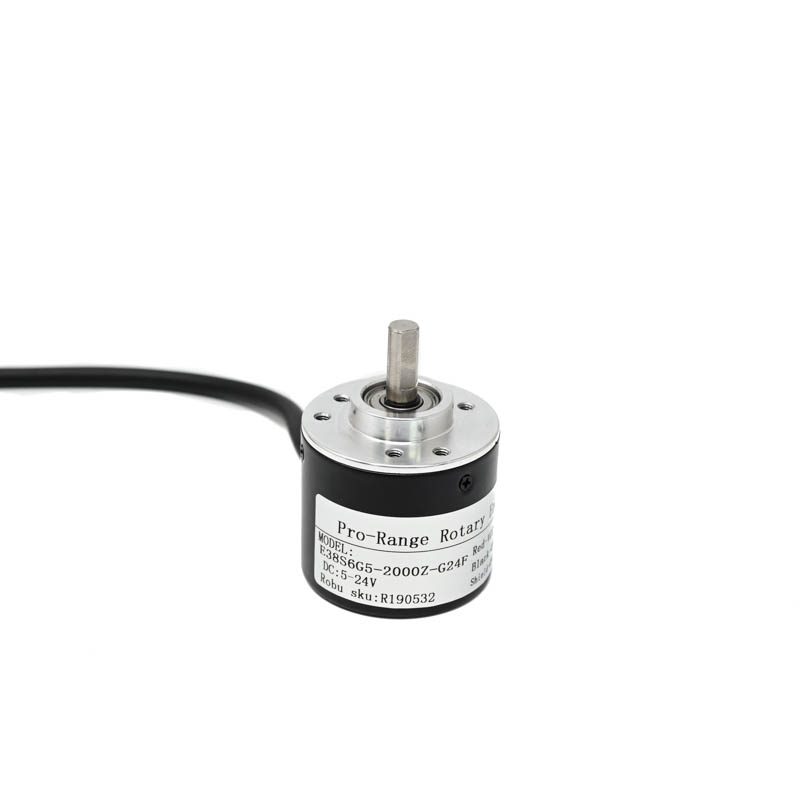

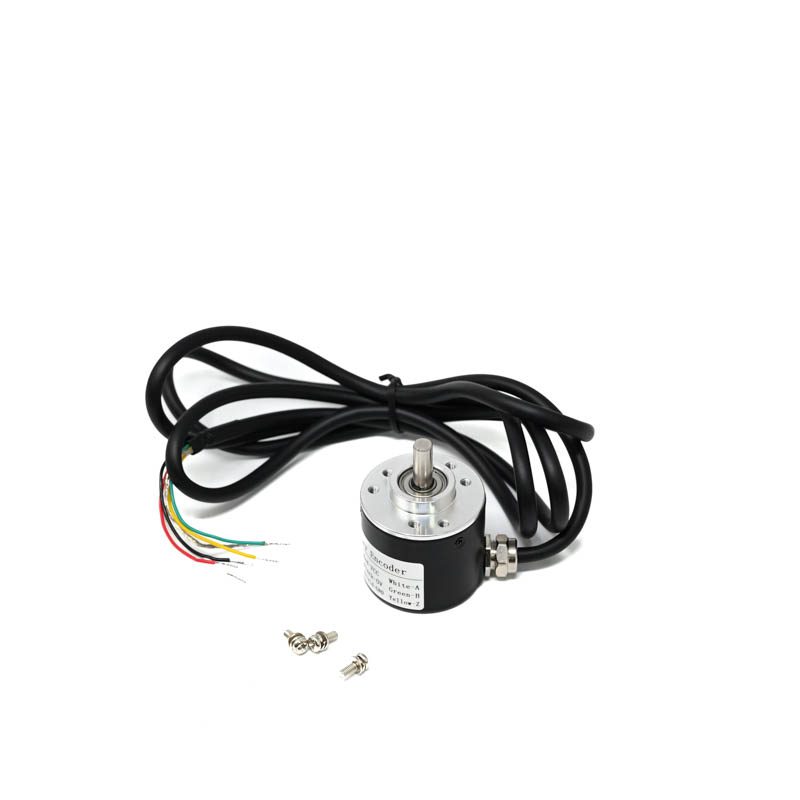

Pro-Range E38S6G5-2000Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 2000 PPR

The encoder provides an ABZ 3-channel open-collector output. Channels A and B are quadrature signals (90° out of phase) for determining direction and incremental position, while channel Z is an index pulse that occurs once per revolution for homing reference. This output is compatible with standard microcontroller input pins, PLC high-speed counters, and dedicated encoder interface modules.

The encoder operates on a wide DC voltage range from 5V to 24V. Connect the positive supply (Vcc) within this range to the encoder's power pin and ground to the corresponding GND pin. Ensure your power source can provide sufficient current for the encoder's internal circuitry, typically under 100mA. The open-collector outputs require pull-up resistors to your controller's logic voltage (e.g., 3.3V or 5V) for proper signal levels.

The encoder features a 38mm diameter housing with standard mounting holes. It is designed to be coupled to a motor shaft via a flexible coupling or direct mount adapter (not included) to prevent misalignment. Ensure the shaft is properly supported and centered. The ABZ output wires should be connected to your controller's digital inputs with appropriate noise filtering for long cable runs in industrial environments.
