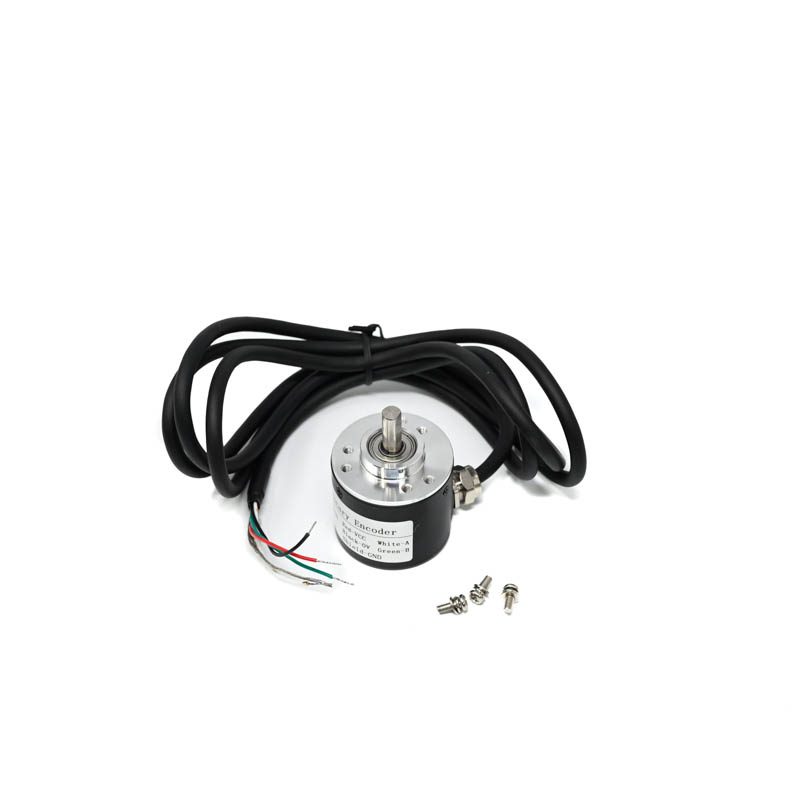

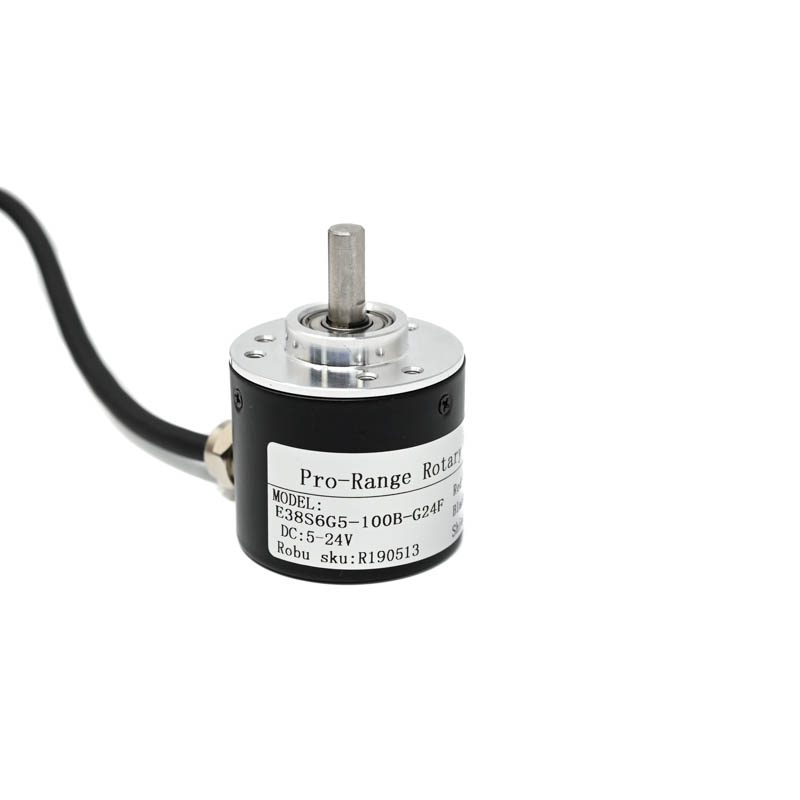

Pro-Range E38S6G5-100B-G24F Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 100 PPR
The Pro-Range E38S6G5-100B-G24F is a 38mm diameter rotary incremental encoder featuring photoelectric sensing and a resolution of 100 pulses per revolution (PPR). It provides reliable AB quadrature output for precise direction and position feedback, compatible with 5-24V DC systems for integration into stepper motor drives, CNC machines, and industrial automation controls.
Features
- 100 PPR Photoelectric Encoder: Delivers high-resolution incremental position feedback for precise motion control.
- Wide 5-24V DC Operating Range: Offers flexible compatibility with PLCs, industrial controllers, and microcontroller systems (Arduino, Raspberry Pi, STM32).
- AB 2-Channel Quadrature Output: Provides direction sensing and four-fold counting capability for enhanced positional accuracy.
- Robust 38mm Housing: Compact, durable construction suitable for integration into demanding industrial and automation environments.
- High-Speed Operation: Supports rated speeds up to 6000 RPM for dynamic motion control applications.
Out of stock
The E38S6G5-100B-G24F encoder utilizes a photoelectric sensing principle, where an internal LED light source and phototransistor detect interruptions on a coded disk to generate precise digital pulses. This technology ensures high signal integrity and immunity to electrical noise, making it suitable for long-term reliability in factory automation.
Designed for seamless integration, the encoder outputs standard AB two-phase square wave signals with a 90-degree phase shift, allowing connected systems to determine both rotational position and direction. Its wide operating voltage range from 5V to 24V DC ensures compatibility with a broad spectrum of industrial logic levels and control interfaces.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
