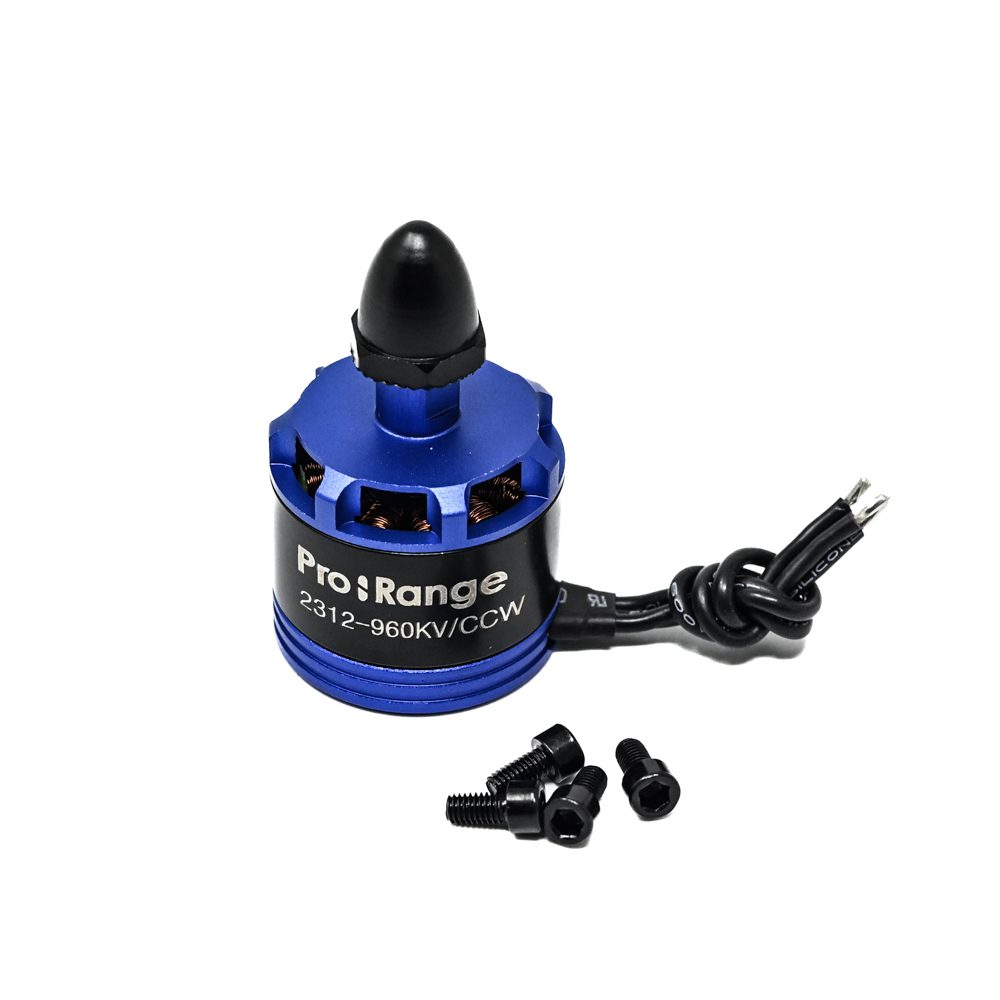

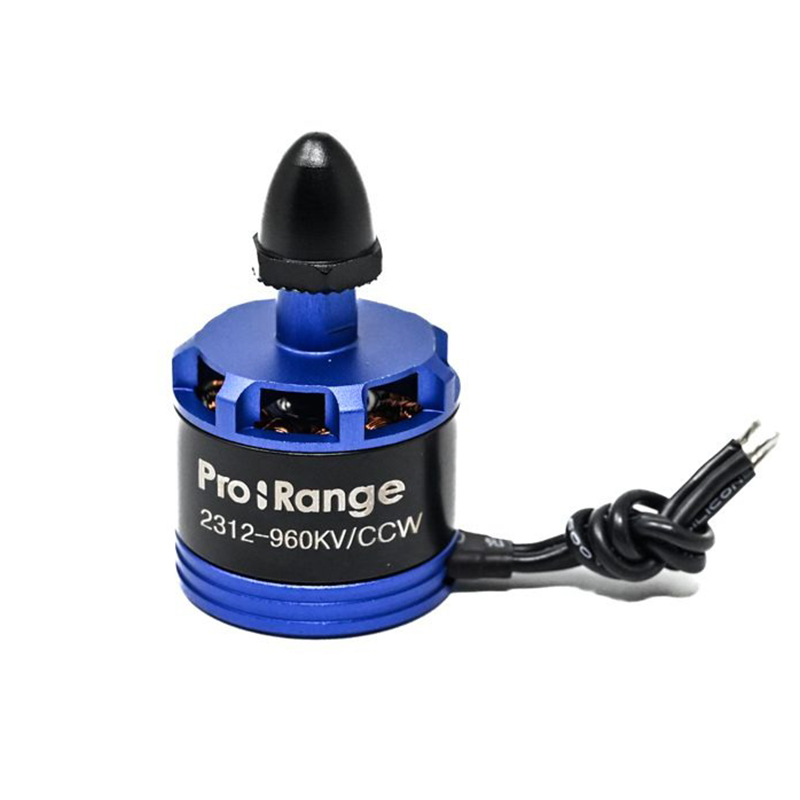

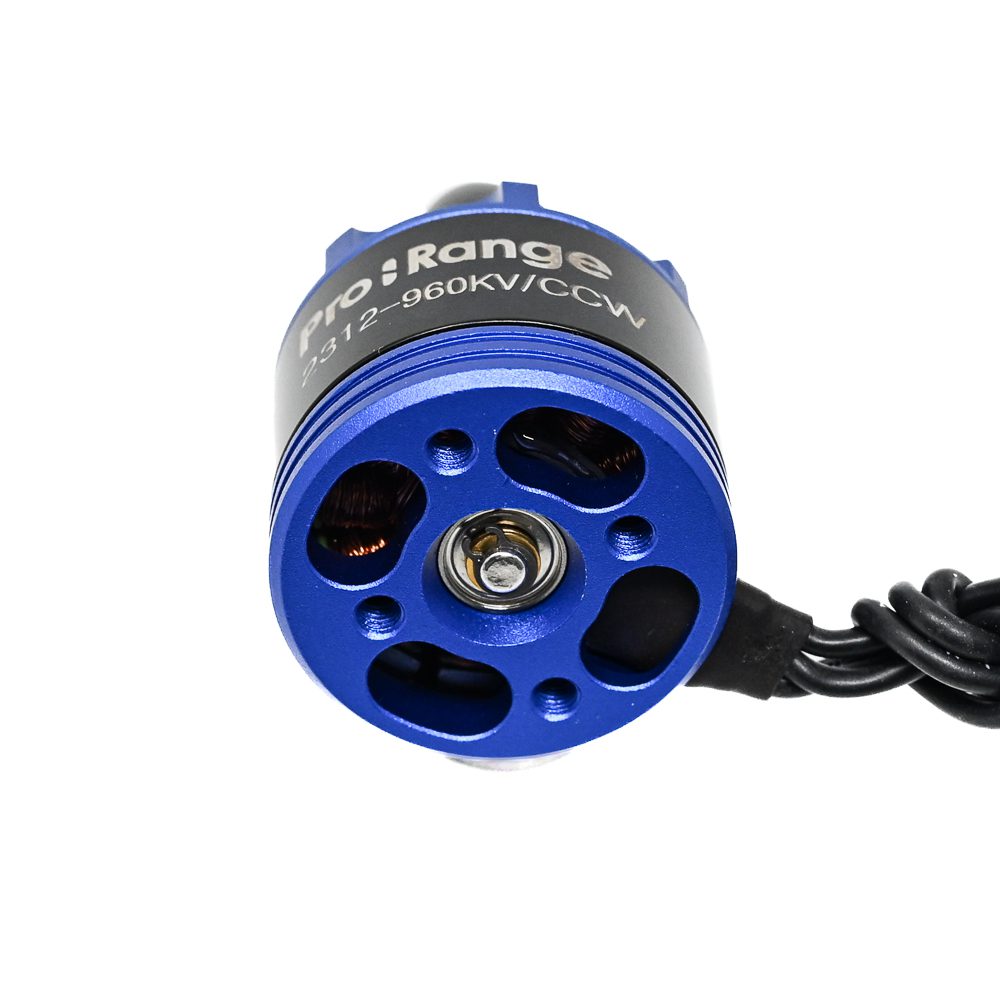

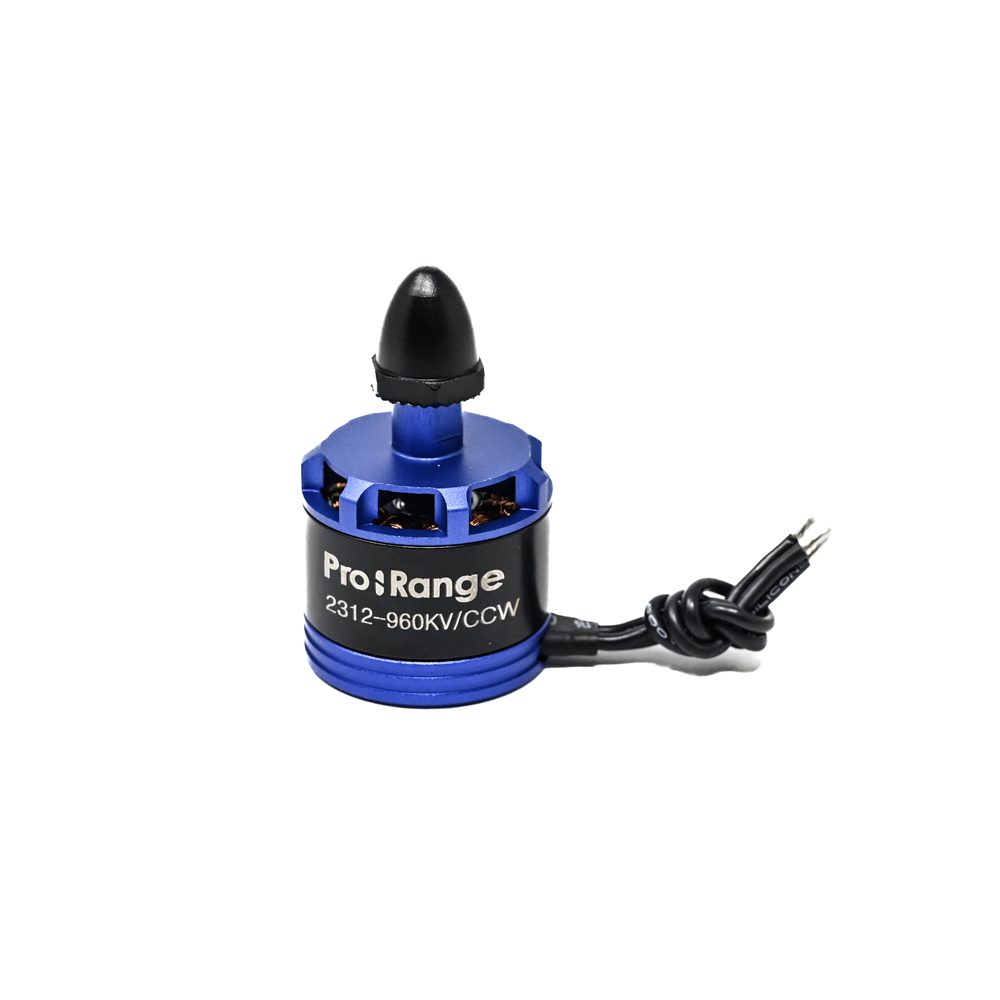

Pro-Range DX2312 960KV CCW Brushless Drone Motor
The Pro-Range DX2312 is a 960KV brushless outrunner motor designed for stable, efficient performance on 2S to 4S LiPo powered multirotor drones and UAVs, offering a high thrust-to-weight ratio for agile flight.
Features
- 960KV (±20 rpm/V) rating optimized for smooth, efficient power delivery on 2S-4S LiPo systems.
- Generates up to 845g of thrust with a peak power output of 136W for responsive aerial performance.
- Lightweight 52g construction with a 3mm shaft diameter and durable 20 AWG silicone wiring for improved heat resistance.
- 14-pole outrunner design provides reliable torque and operational efficiency within a -10°C to 65°C temperature range.
- Counterclockwise (CCW) rotation motor, typically installed on the right front and left rear arms of a quadcopter.
Out of stock
The Pro-Range DX2312-960KV brushless motor is engineered for high-performance multirotor applications, balancing power, efficiency, and durability. Its 960KV rating and support for 2S to 4S LiPo batteries provide flexible power options for stable aerial platforms and custom builds, achieving an optimal efficiency of 6.2g/W to help extend flight times.
Constructed with high-quality materials, the motor features robust internal components and 20 AWG silicone wire for superior heat dissipation and longevity under continuous load. With a maximum current of 9.2A and a no-load current of 0.6A, it delivers reliable thrust up to 845g while maintaining a compact form factor with a 28.2mm outer diameter.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
