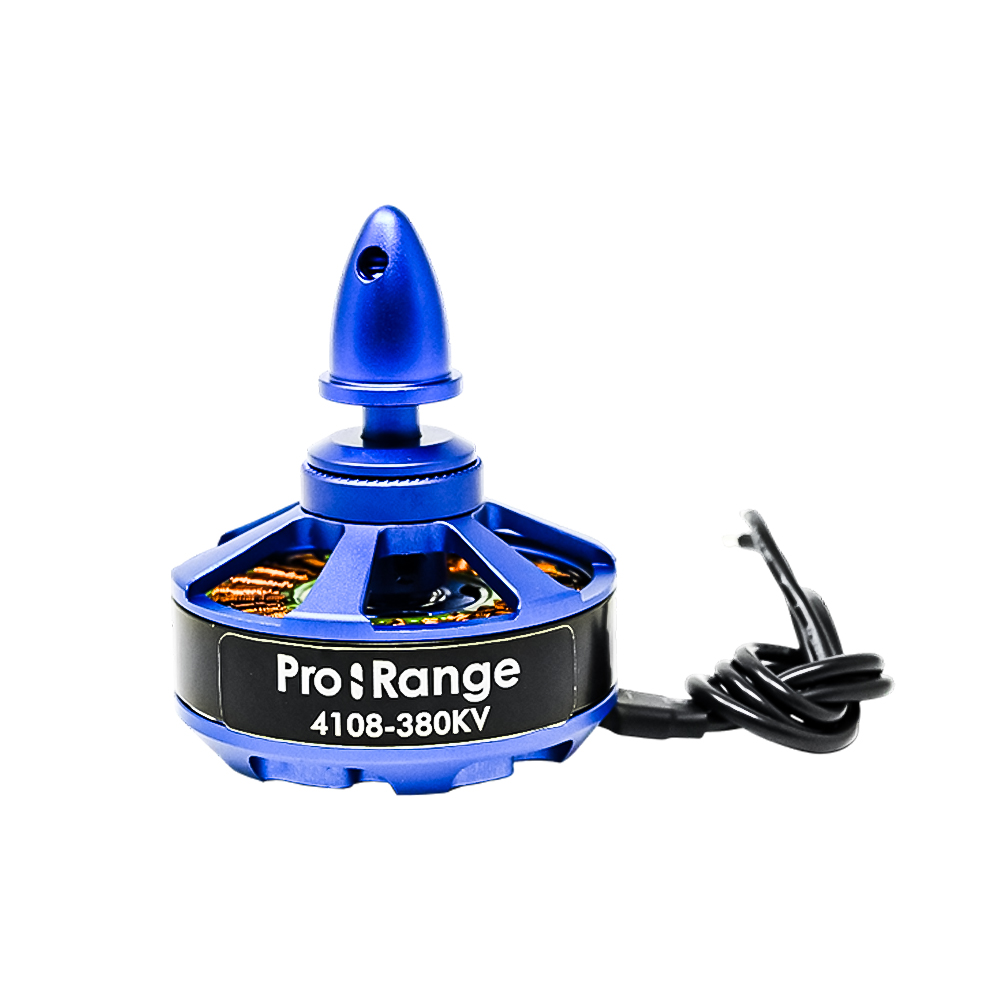

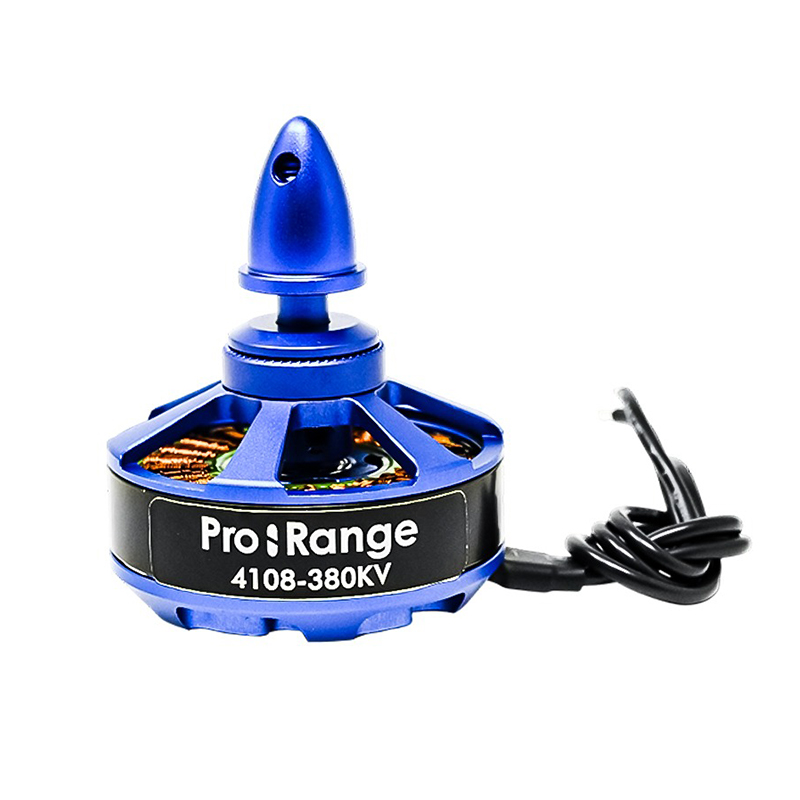

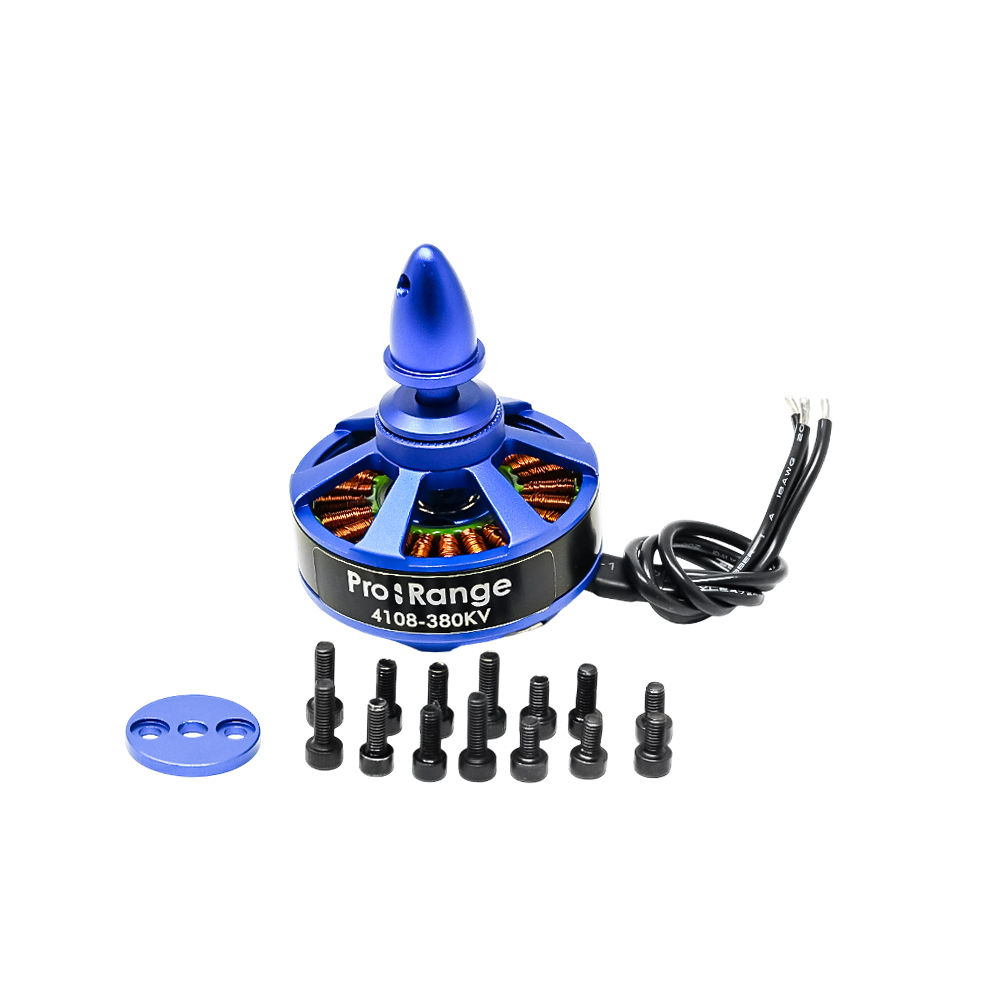

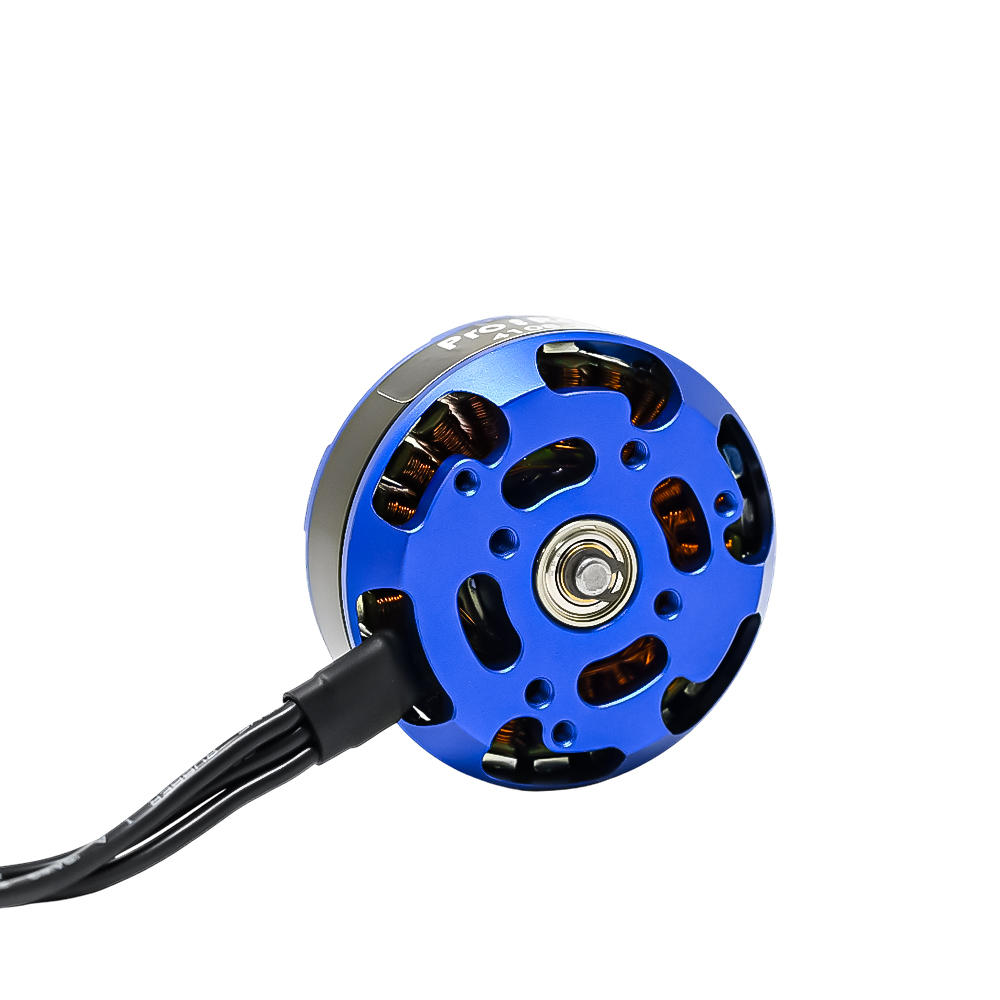

Pro-Range D4108 380KV CCW Brushless Drone Motor
The Pro-Range D4108-380KV brushless motor is engineered for medium to heavy-lift multirotor drones, operating efficiently on 4S to 6S LiPo battery systems. Its 380KV rating provides high torque for stable flight with large propellers.
Features
- 380KV rating optimized for high-torque, stable flight on 4S-6S LiPo.
- Delivers up to 2140g of maximum thrust with a peak power output of 480W.
- High efficiency rating of up to 5.8 g/W for extended flight times.
- Lightweight 92g construction with a 4mm shaft diameter for robust mounting.
- Designed for compatibility with large propellers including APC1238, APC1447, and 1555CF.
Out of stock
The Pro-Range D4108-380KV is a high-performance brushless outrunner motor built for demanding multirotor applications. Its 14-pole design and 380KV rating are engineered to deliver smooth, high-torque rotation ideal for lifting heavier payloads, making it a core component for aerial photography platforms and industrial drones.
Constructed with a focus on thermal management and low vibration, this motor ensures reliable operation across an extended temperature range from -20°C to 80°C. The efficient electromagnetic design minimizes no-load current to 0.6A, translating to optimized power consumption and longer endurance during flight missions.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 6 × 6 × 4 cm |
