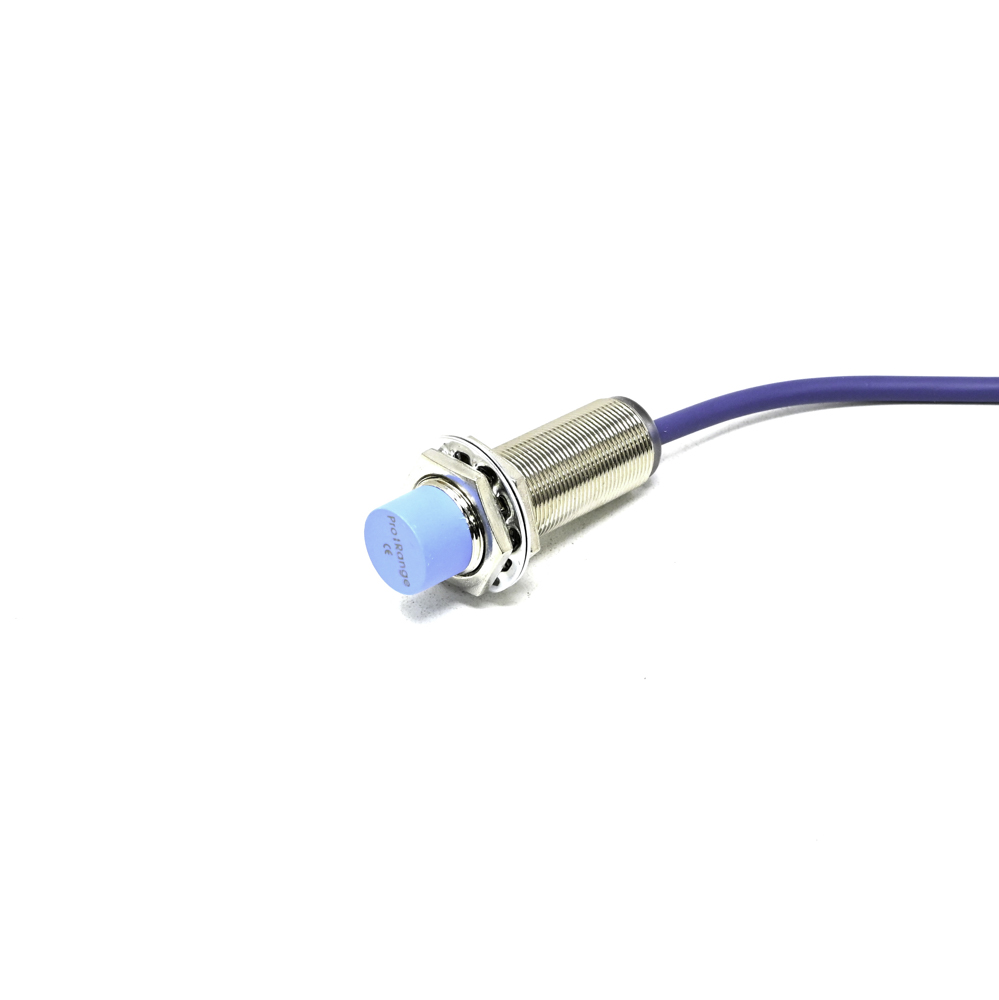

Pro-Range CZJ-A18-16ANB NPN M18 Inductive Proximity Sensor - 16mm Detection

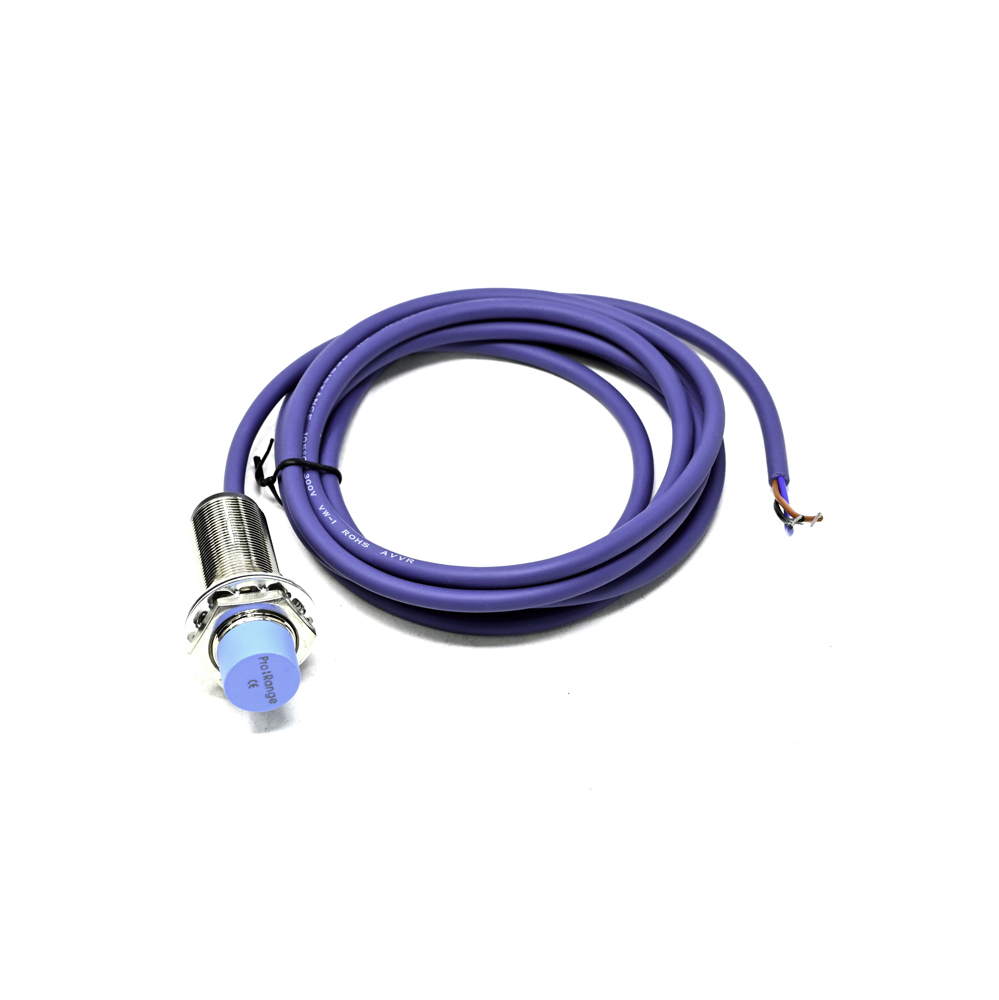

Pro-Range CZJ-A18-16ANB NPN M18 Inductive Proximity Sensor - 16mm Detection - Image 2
SKU: SENS-2283
📋 GST Invoice Available

Pro-Range CZJ-A18-16ANB NPN M18 Inductive Proximity Sensor - 16mm Detection

₹1,689.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range CZJ-A18-16ANB is an NPN-output inductive proximity sensor with a 16mm detection range and M18 threaded housing, designed for non-contact metal object detection in industrial automation, PLC, and control systems.

Features

  • NPN Normally Open (NO) output compatible with PLCs and industrial controllers.
  • 16mm nominal sensing distance for reliable detection of ferrous and non-ferrous metals.
  • M18 x 1 threaded stainless steel housing for robust panel mounting.
  • Red LED status indicator for visual confirmation of target detection.
  • Built-in short-circuit and reverse polarity protection for enhanced system durability.

Out of stock

Description

The CZJ-A18-16ANB is an industrial-grade inductive proximity sensor utilizing an electromagnetic field to detect the presence of metallic objects without physical contact. Its oscillation-damping principle ensures high repeat accuracy and immunity to surface contaminants like dust or oil, making it suitable for harsh industrial environments.

Featuring a shielded (flush-mountable) design, the sensor can be installed in metal surroundings without loss of sensing range. The NPN sinking output provides a reliable signal interface for standard 10-30V DC control systems, with fast response times enabling high-speed counting and positioning applications.

Key Features

  • Inductive sensing technology for reliable metal detection.
  • 16mm standard detection range with ±10% tolerance.
  • NPN Normally Open (NO) transistor output configuration.
  • Stainless steel M18 threaded barrel for durable installation.
  • 10-30V DC operating voltage range with reverse polarity protection.
  • Red LED indicator for real-time operational status.
  • Shielded design allows flush mounting in metal.
  • High switching frequency suitable for rapid counting tasks.

Applications

  • Metal part presence detection on conveyor lines and assembly machines.
  • Position limiting and end-of-travel sensing in automated linear actuators.
  • High-speed counting of metallic components in packaging and sorting systems.
  • Tool position verification in CNC machining centers and robotic arms.
  • Liquid level detection in metal tanks via float mechanism.

Technical Specifications

Model NumberCZJ-A18-16ANB
Brand / OEMPro-Range
Sensing TypeInductive
Output TypeNPN Normally Open (NO)
Detection Distance16 mm
Housing ThreadM18 x 1
Operating Voltage10-30V DC
Output Current≤ 200 mA
Response Frequency100 Hz (Typical)
Protection FeaturesShort-circuit, Reverse Polarity
IndicatorRed LED
Housing MaterialStainless Steel

Frequently Asked Questions

What is the operating voltage range for this NPN proximity sensor?

The CZJ-A18-16ANB sensor operates from 10 to 30V DC. Ensure your power supply is within this range and properly grounded. The built-in reverse polarity protection safeguards against accidental wiring mistakes.

Can this sensor detect non-metallic objects like plastic or wood?

No, this is an inductive proximity sensor designed specifically to detect metallic objects. For non-metallic materials, a capacitive proximity sensor would be required. Its sensing principle relies on disturbing an electromagnetic field, which only conductive metals can achieve.

How do I wire the NPN output to a PLC or microcontroller?

Wire the brown wire to your DC positive supply (10-30V), the blue wire to DC negative (0V/GND), and the black wire is the NPN output. When a target is detected, the black wire switches to ground (sinks current). Connect it to your PLC's digital input, typically through a pull-up resistor to the PLC's internal voltage.

Is this sensor suitable for flush mounting in a metal bracket?

Yes, the CZJ-A18-16ANB features a shielded (flush-mountable) design. This allows it to be installed flush with or embedded into a metal mounting surface without a significant reduction in its nominal 16mm sensing range, unlike unshielded sensors.

Package Includes

  • 1 x Pro-Range CZJ-A18-16ANB Inductive Proximity Sensor

Additional Information

Weight 0.03 kg
