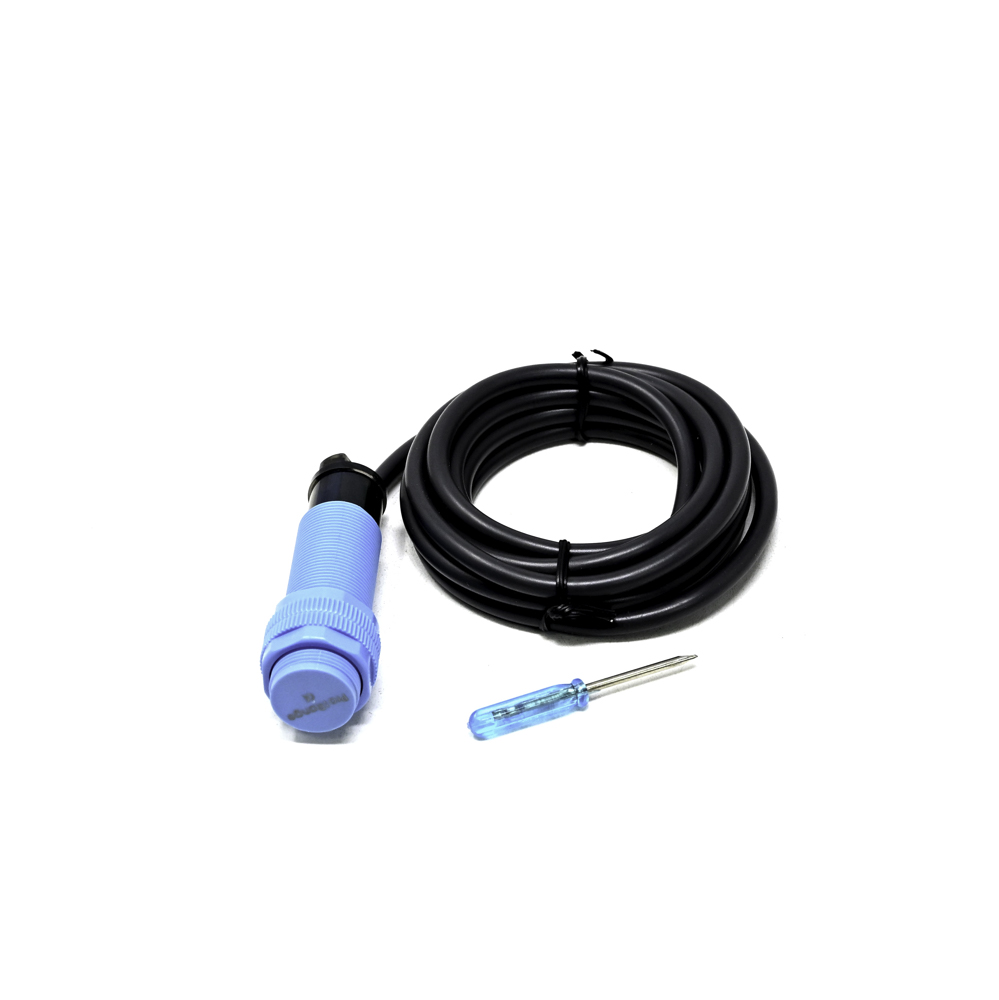

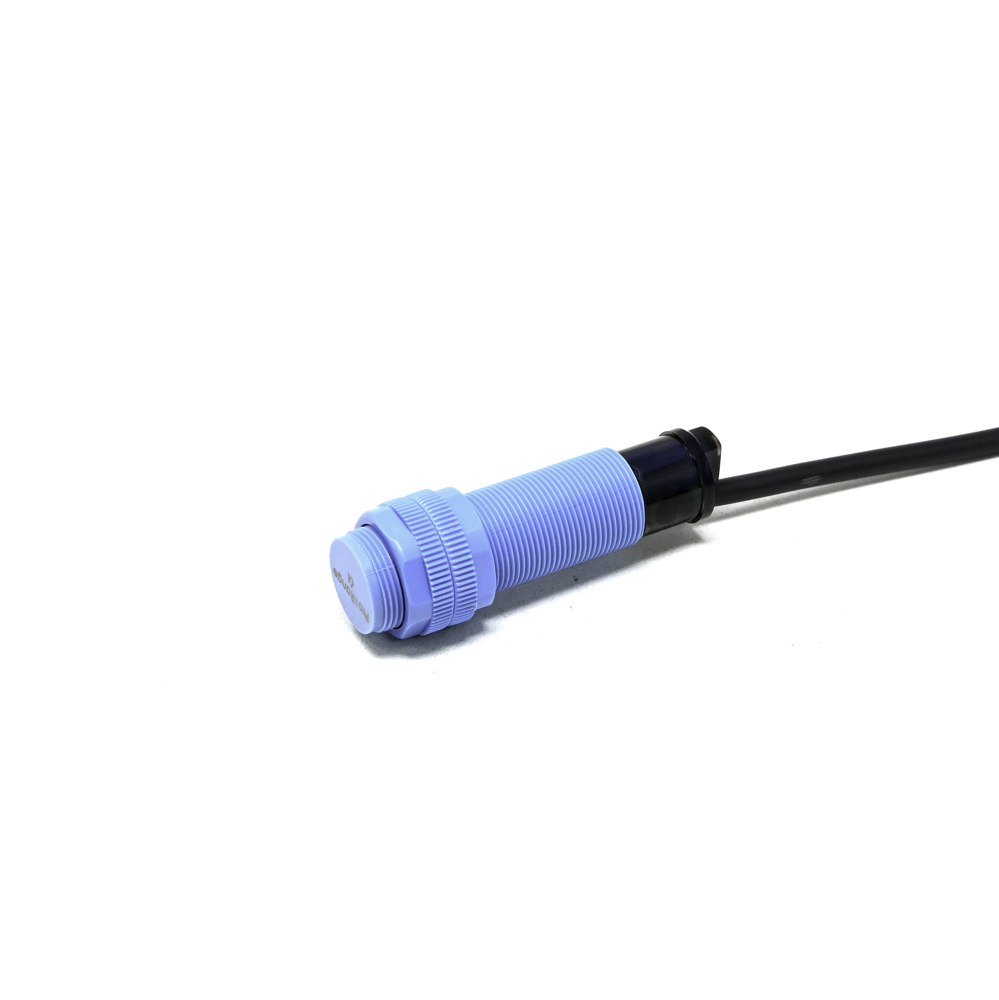

Pro-Range CCJ-A18-8ANB Capacitive Proximity Sensor, NPN Output, M18 Thread, 8mm Detection Distance
The Pro-Range CCJ-A18-8ANB is an NPN output, M18-threaded capacitive proximity sensor designed for non-contact detection of non-metallic objects at a range of 8mm. It integrates seamlessly with industrial PLCs and 24V DC control systems for automation tasks.
Features
- Capacitive sensing principle for detecting non-metallic objects (plastics, liquids, powders).
- Standard M18 threaded barrel housing for easy panel or bracket mounting.
- NPN open-collector output compatible with PLC sinking inputs and 24V DC systems.
- Integrated red LED indicator provides real-time operational status.
- Features sensitivity adjustment for fine-tuning detection performance.
Out of stock
The CCJ-A18-8ANB capacitive proximity sensor operates by detecting changes in capacitance caused by the presence of a target object, enabling reliable detection of non-conductive materials without physical contact. Its dedicated IC ensures stable operation with excellent immunity to electrical noise and interference common in industrial environments.
Built into a robust M18 threaded metal housing, the sensor is designed for durability in automation applications. It includes built-in polarity and short-circuit protection for enhanced system safety and longevity. The adjustable sensitivity potentiometer allows for precise tuning to accommodate different material types and environmental conditions.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 5 × 10 cm |
