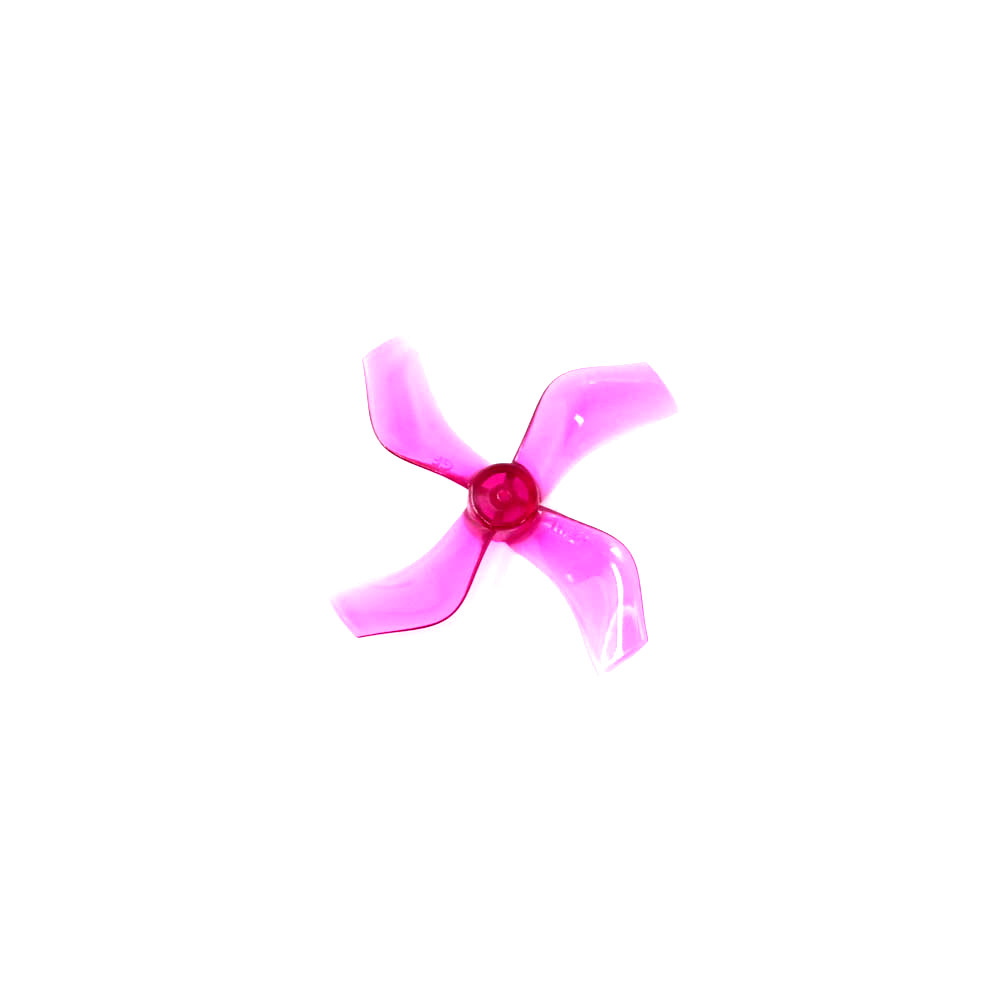

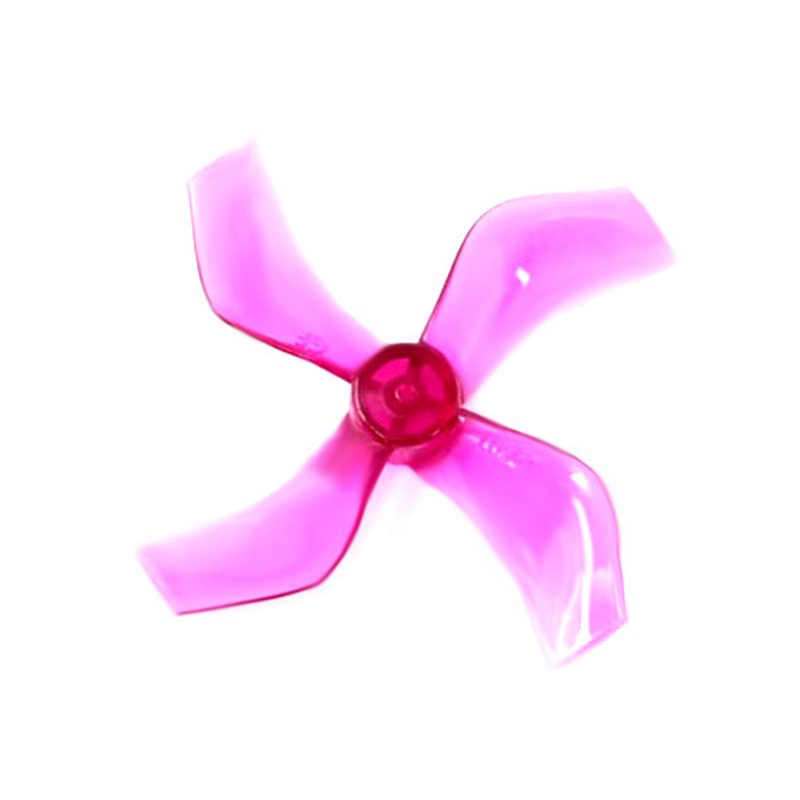

Pro-Range 1636 PC 4-Blade 40mm Propellers 4CW+4CCW - Clear Purple

₹127.00 (Inclusive of all taxes)
Out of Stock

Pro-Range 1636 series 40mm quad-blade propellers, constructed from durable polycarbonate (PC) with a 1mm single-hole mounting pattern. Designed for 1103-1105KV brushless motors to enhance thrust efficiency and flight stability for micro and cinewhoop drones.

Features

  • 40mm diameter with a 3.6-inch pitch for optimized thrust-to-weight ratio.
  • Constructed from durable, lightweight polycarbonate (PC) for a high-performance balance.
  • 1mm single-hole mounting hub compatible with 1103-1105KV micro brushless motors.
  • Quad-blade (4-blade) design increases disc loading for improved low-speed stability and control.
  • Pack includes 4 clockwise (CW) and 4 counter-clockwise (CCW) propellers for a complete set.

Out of stock

Description

The Pro-Range 1636 series propellers are engineered for micro FPV drones and cinewhoops requiring precise control and efficient thrust. The 40mm diameter combined with a 3.6-inch pitch creates a blade geometry optimized for the high-RPM torque characteristics of 1103-1105KV motors, delivering responsive power across the throttle range.

Manufactured from injection-molded polycarbonate, these blades offer a critical balance of rigidity and impact resistance. This material choice minimizes flex under load for consistent performance while providing durability against minor crashes. The single 1mm mounting hole ensures a secure fit on standard micro motor shafts, preventing slippage during aggressive maneuvers.

Key Features

  • High-efficiency 4-blade design for increased thrust and improved low-speed handling.
  • Polycarbonate construction delivers an optimal strength-to-weight ratio for agile flight.
  • Precision-molded blades are factory-balanced to reduce vibration and motor wear.
  • Vibrant Clear Purple finish provides a distinctive visual marker for orientation.
  • Designed specifically for the torque curve of 1103-1105KV micro brushless motors.

Applications

  • 3-inch micro FPV racing and freestyle drones built with 1103-1105KV motors.
  • Compact cinewhoops and ducted micro drones for indoor or tight-space filming.
  • Lightweight toothpick-style builds requiring high thrust for aggressive acrobatics.
  • Micro long-range builds where efficient propeller loading is critical for flight time.

Technical Specifications

Model Series1636
Diameter40mm
Pitch3.6 inch
Blade Count4
MaterialPolycarbonate (PC)
Center Hole Diameter1mm (Single Hole)
Compatible Motor KV1103-1105KV
ColorClear Purple

Frequently Asked Questions

What size motors are these Pro-Range 1636 40mm propellers designed for?

These propellers are specifically engineered for 1103 to 1105KV brushless motors. The 1mm single-hole mounting pattern is standard for this motor size class. Using them on significantly larger or smaller motors may result in inefficient performance or potential damage.

Are these propellers suitable for both racing and freestyle micro drones?

Yes, the 4-blade design and 3.6-inch pitch provide a good balance. The quad blades offer increased disc loading for punchy thrust and stability in corners (beneficial for racing), while the polycarbonate construction provides the durability needed for freestyle crashes. They are a versatile choice for 3-inch micro builds.

Do I need to balance these Pro-Range propellers before use?

Pro-Range propellers are injection-molded and typically come from the factory with good balance, reducing the need for immediate manual balancing for most pilots. However, for the smoothest possible flight performance, especially in high-RPM applications, fine-tuning with a propeller balancer is always recommended.

Package Includes

  • 4 x Pro-Range 1636 40mm PC Propellers (Clockwise Rotation)
  • 4 x Pro-Range 1636 40mm PC Propellers (Counter-Clockwise Rotation)

Additional Information

Weight 0.1 kg
Dimensions 10 × 10 × 5 cm
