SKU: DRFC-1680
📋 GST Invoice Available

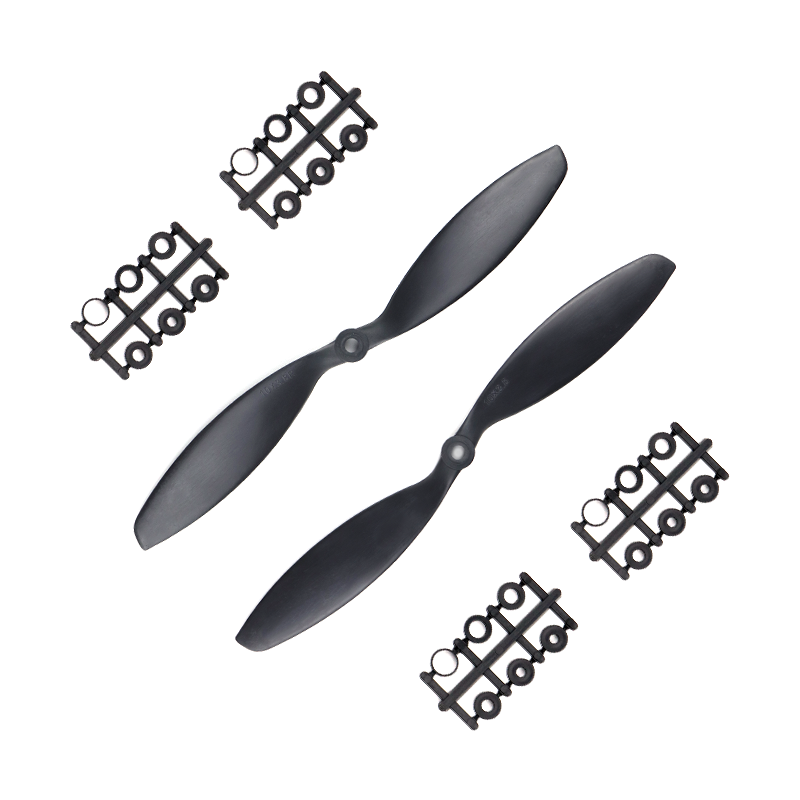

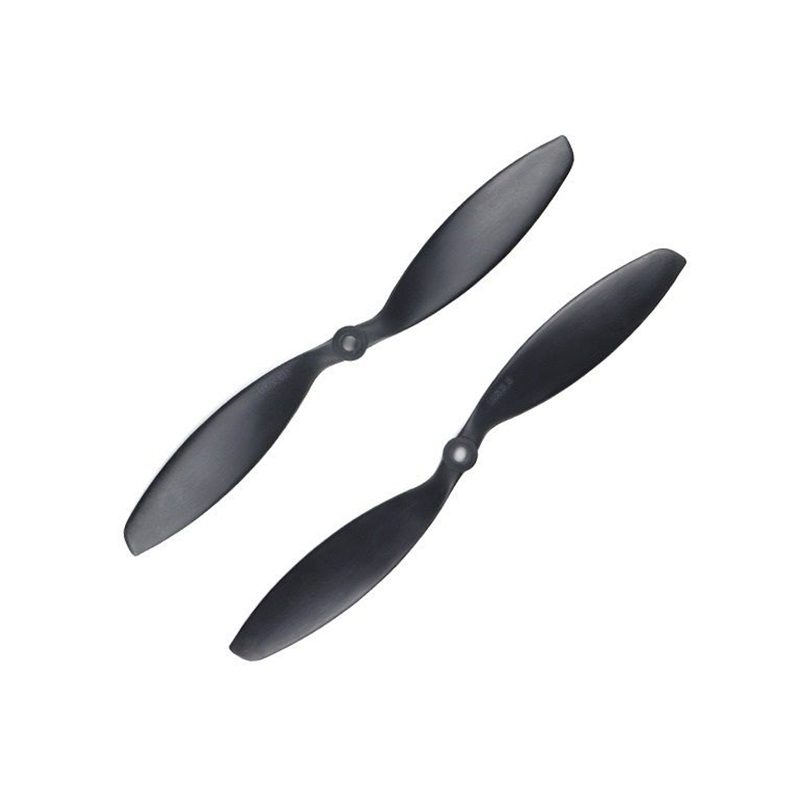

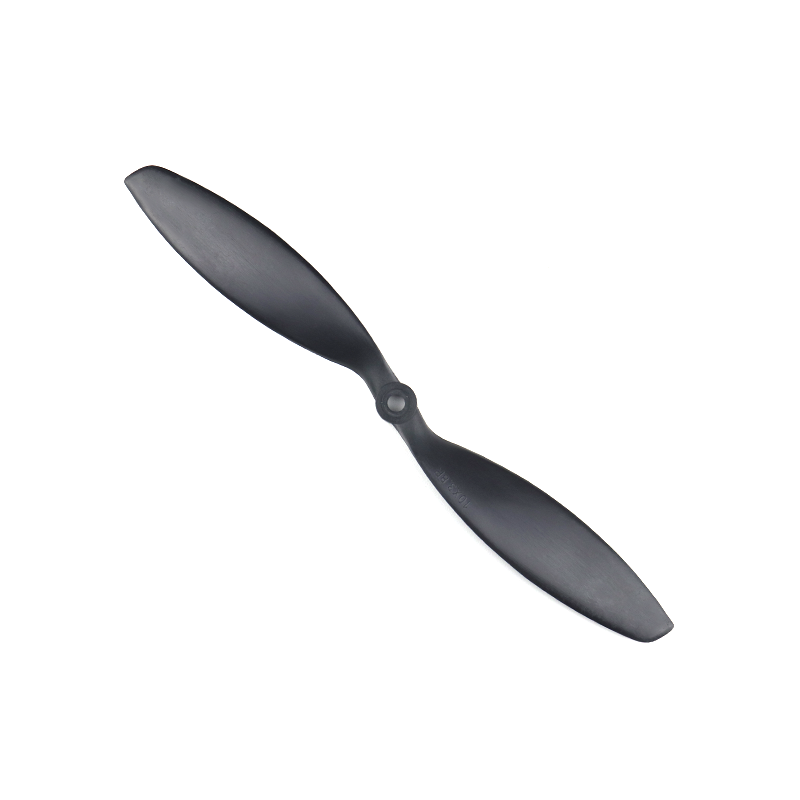

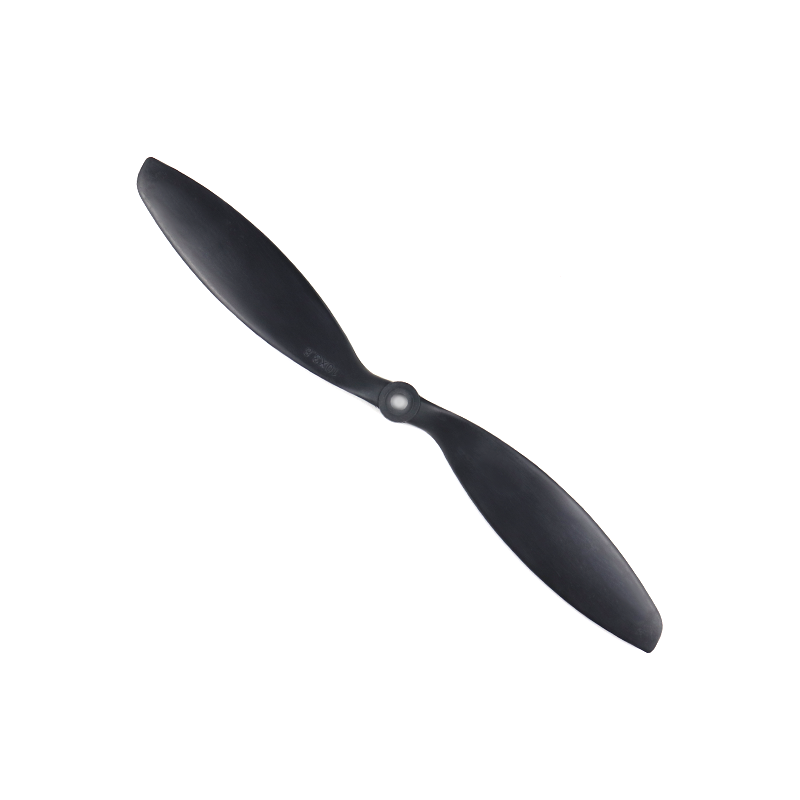

Pro-Range 1038 (10x3.8) Carbon Nylon Propellers 1CW+1CCW Pair - Black

₹197.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 1038 (10×3.8) propellers are a 2-blade carbon nylon set designed for 10-inch multirotor platforms, offering a balance of durability and aerodynamic efficiency for stable flight performance.

Features

  • 10-inch diameter with 3.8-inch pitch for efficient thrust generation.
  • Constructed from durable carbon nylon composite for impact resistance.
  • Standard 9.5mm shaft diameter compatible with common large brushless motors.
  • Includes one clockwise (CW) and one counter-clockwise (CCW) propeller.
  • Weighs 32 grams per propeller, optimizing performance-to-weight ratio.

Out of stock

Description

The Pro-Range 1038 propellers are engineered for 10-inch multirotor drones, providing a reliable thrust solution for aerial photography, mapping, and heavy-lift applications. The 3.8-inch pitch offers a solid balance between lift efficiency and motor current draw, suitable for stable, controlled flight.

Manufactured from a carbon nylon composite, these propellers deliver enhanced rigidity and fatigue resistance compared to standard nylon, reducing deformation under high RPM loads. The black color provides a neutral, professional appearance, while the precise blade geometry ensures consistent aerofoil stability across the operating envelope.

Key Features

  • Carbon Nylon Construction: Combines the strength of carbon fiber with the flexibility of nylon for high endurance and impact resistance.
  • Precision Aerofoil Design: Blade profile optimized for improved air-powered efficiency and in-flight stability.
  • Standard Shaft Compatibility: 9.5mm bore fits a wide range of large-diameter motor shafts used in industrial and heavy-lift drones.
  • Balanced Performance: The 10x3.8 spec provides a favorable thrust-to-power ratio for extended flight times.
  • Matched Pair Set: Includes one CW and one CCW propeller for immediate installation on standard quadcopter and hexacopter configurations.

Applications

  • Heavy-lift and aerial photography drones utilizing 10-inch motor-to-motor frames.
  • Mapping and surveying multirotor platforms requiring stable, efficient thrust.
  • DIY large-scale quadcopter and hexacopter builds for educational or commercial use.
  • Industrial inspection drones where durable propeller components are critical.

Technical Specifications

Propeller Diameter10 inches (254 mm)
Pitch3.8 inches
MaterialCarbon Nylon
ColorBlack
Rotation DirectionCW & CCW (1CW+1CCW Pair)
Number of Blades2
Shaft Diameter (Bore)9.5 mm
Weight (per propeller)32 g
Shipping Weight0.033 kg

Frequently Asked Questions

What is the shaft diameter compatibility for these Pro-Range 1038 propellers?

These propellers feature a standard 9.5mm bore diameter, designed to fit motor shafts of that exact size. They are commonly used with larger brushless motors found on heavy-lift and industrial-grade multirotor platforms. Adapters or reducers may be required for motors with different shaft diameters.

Are these propellers suitable for high-RPM FPV racing drones?

No, the Pro-Range 1038 propellers are not designed for high-RPM FPV racing. Their 10-inch diameter and 3.8-inch pitch are optimized for efficient, stable thrust on larger, slower-flying drones like aerial photography rigs, mappers, or heavy-lift platforms. Using them on a high-KV racing motor would likely overload the ESC and motor.

What material are these propellers made from, and what are the advantages?

These propellers are constructed from carbon nylon, a composite material that blends nylon's flexibility with carbon fiber's strength. This results in propellers that are more rigid and resistant to bending under load than standard nylon, while also offering better impact resistance and fatigue life compared to brittle materials like pure carbon fiber.

Package Includes

  • 1x Black Carbon Nylon Propeller (Clockwise Rotation)
  • 1x Black Carbon Nylon Propeller (Counter-Clockwise Rotation)

Additional Information

Weight 0.033 kg
Dimensions 4 × 27 × 1 cm
