Pimoroni Pico Audio Pack - Line-Out & Headphone Amp

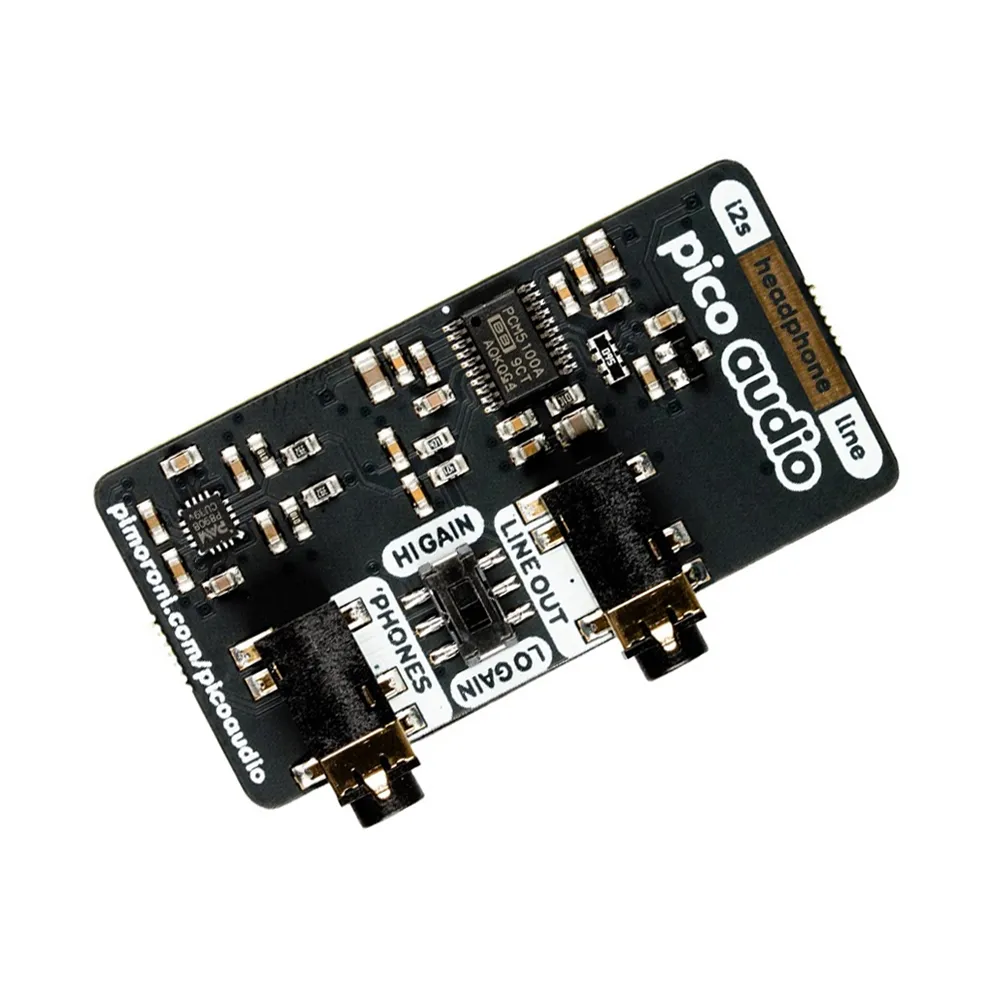

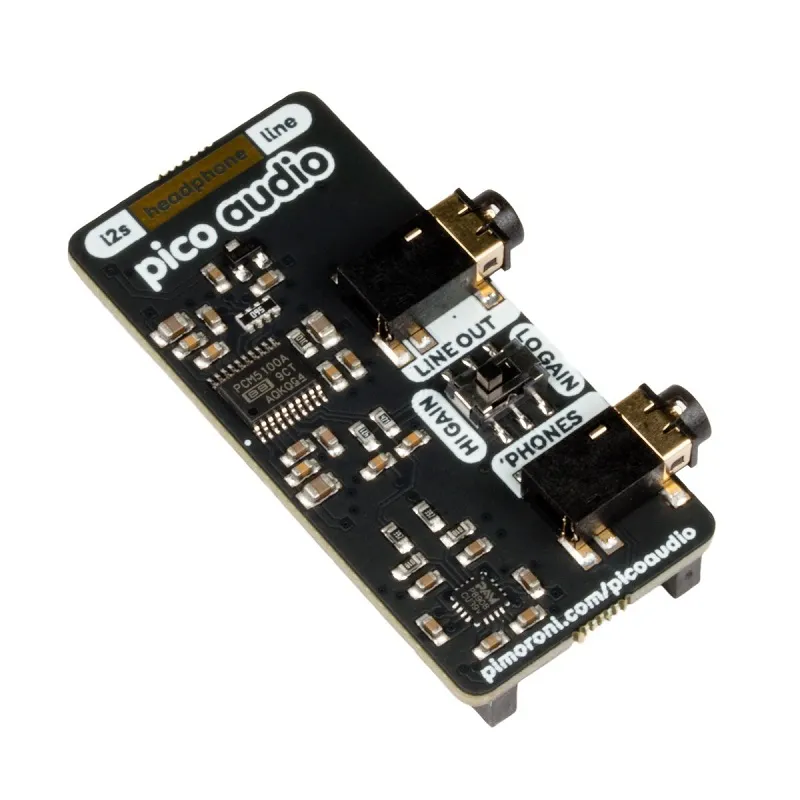

The Pimoroni Pico Audio Pack extends your Raspberry Pi Pico with high-quality stereo audio capabilities. Featuring a PCM5100A I2S DAC, it provides both amplified 3.5mm headphone and unamplified 3.5mm line-out connectors, perfect for integrating sound into your Pico projects.
Features
- High-fidelity stereo audio output via PCM5100A I2S DAC.
- Includes both 3.5mm amplified headphone and 3.5mm unamplified line-out jacks.

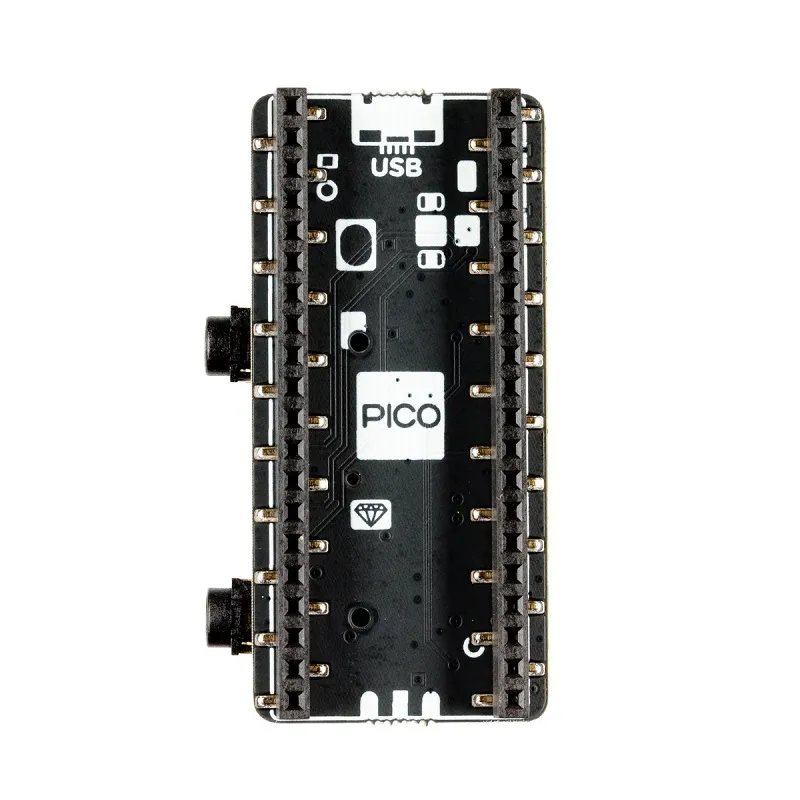

- Pre-soldered female headers ensure quick, solder-free attachment to Raspberry Pi Pico.
- Features a PAM8908JER stereo headphone amplifier with adjustable gain.
Out of stock
The Pimoroni Pico Audio Pack is designed to bring robust audio functionality to your Raspberry Pi Pico projects. Utilizing a high-quality PCM5100A I2S DAC, this add-on board delivers up to 32-bit, 384KHz stereo audio. It offers dual output options: a 3.5mm line-out connector for unamplified audio, ideal for connecting to external amplifiers or powered speakers, and a 3.5mm headphone jack that provides amplified stereo sound through its integrated PAM8908JER headphone amplifier, featuring a switch for gain adjustment (low/high).
This versatile audio pack enables a range of creative applications, from generating unique noises for lo-fi synthesizers to transforming your Pico into a custom USB sound card when paired with another device. It’s also perfect for adding sound effects or short audio clips to embedded projects. While I2S audio for Pico/RP2040 is not currently supported in MicroPython, it is fully compatible with CircuitPython, offering developers a flexible platform for audio experimentation.
Additional Information
| Weight | 0.024 kg |
|---|---|
| Dimensions | 5.3 × 2.9 × 1.1 cm |
