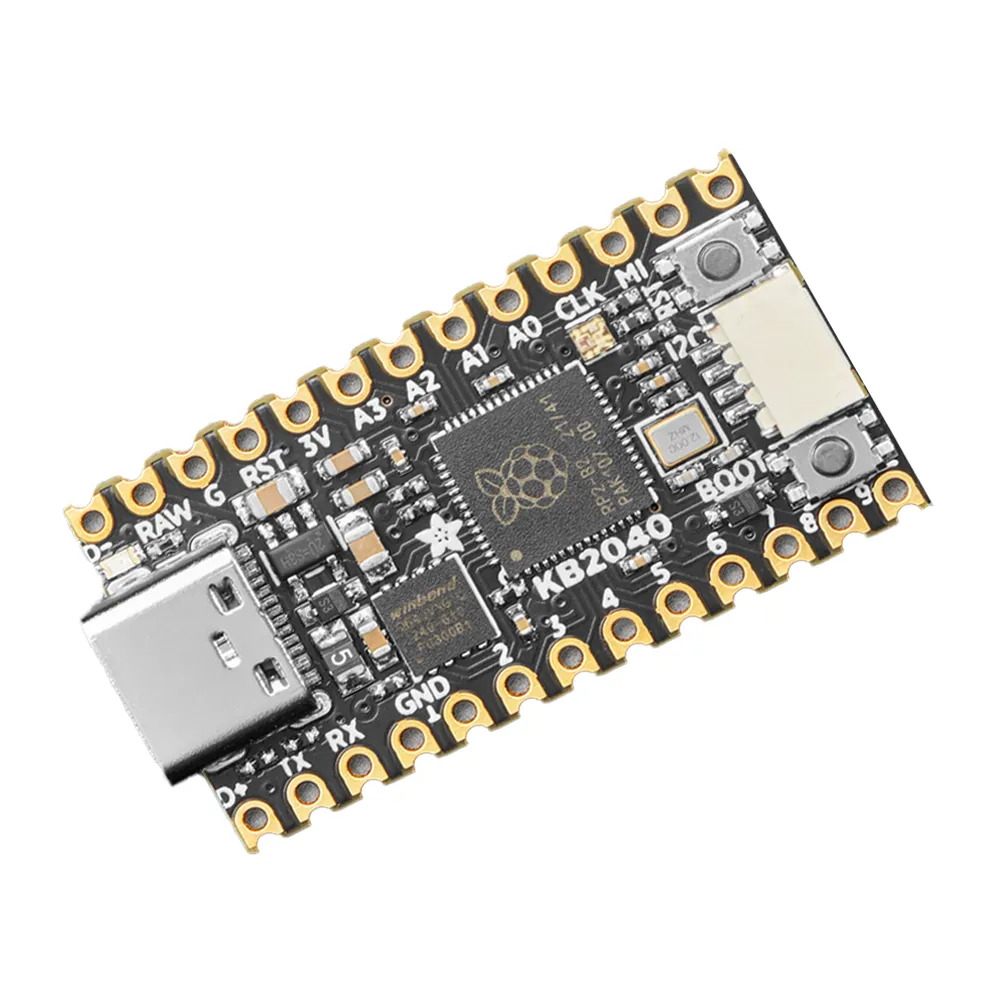

Adafruit KB2040 RP2040 Pro Micro Keyboard Driver
The Adafruit KB2040 is an RP2040-based microcontroller board, designed with a Pro Micro-compatible form factor specifically for custom keyboard projects. Featuring a dual-core ARM Cortex-M0+ processor, 8MB QSPI flash, and a STEMMA QT connector, it offers robust performance and simplified peripheral integration for makers.
Features
- RP2040 dual-core ARM Cortex-M0+ MCU with 264 KB RAM for powerful processing.
- Pro Micro-compatible footprint (1.3″ x 0.7″) ideal for compact keyboard designs.
- Integrated 8MB SPI flash for ample CircuitPython/MicroPython code and file storage.
- STEMMA QT port enables solder-less I2C peripheral connections.

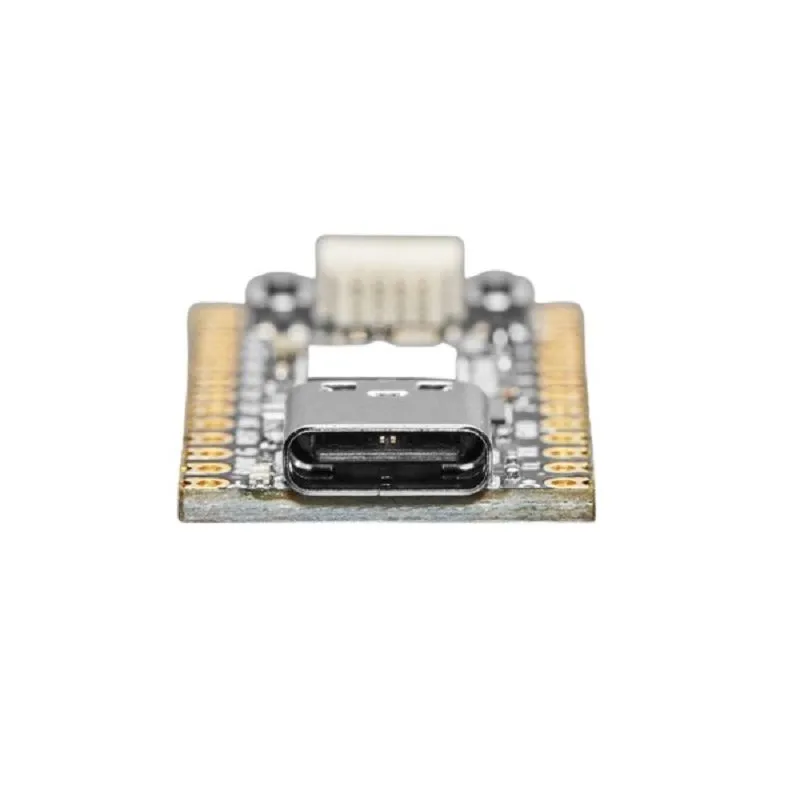

- USB Type-C connectivity with dedicated D+/D- breakouts for flexible integration.
Out of stock
The Adafruit KB2040 is an RP2040 Kee Boar Driver-board, meticulously engineered for custom keyboard applications and designed in the familiar Arduino Pro Micro footprint. It integrates advanced features inspired by SparkFun’s Pro Micro RP2040 and Elite-C, including a convenient Qwiic I2C port, robust castellated pads, 8MB QSPI flash for extensive code storage, and a dedicated jumper for high-power RGB LEDs. This board provides a solid foundation for sophisticated human interface devices.
With 20 versatile GPIO pins, the KB2040 readily supports complex key matrices, accommodating layouts up to 100 keys or 65% (5×15) configurations. The plug-and-play STEMMA QT cable significantly simplifies peripheral connections, eliminating the need for desoldering. This board is an excellent choice for developers and makers aiming to craft custom keyboards with the flexibility and ease of CircuitPython.
Additional Information
| Weight | 0.021 kg |
|---|---|
| Dimensions | 6 × 5 × 2 cm |
