Pepperl+Fuchs ENA36TL-R06DA5-0016-IO-RBD01 Absolute Rotary Encoder - IO-Link V1.1, 12000 RPM, 6mm Hollow Shaft, IP65/IP67

₹78,949.00 (Inclusive of all taxes)
Out of Stock

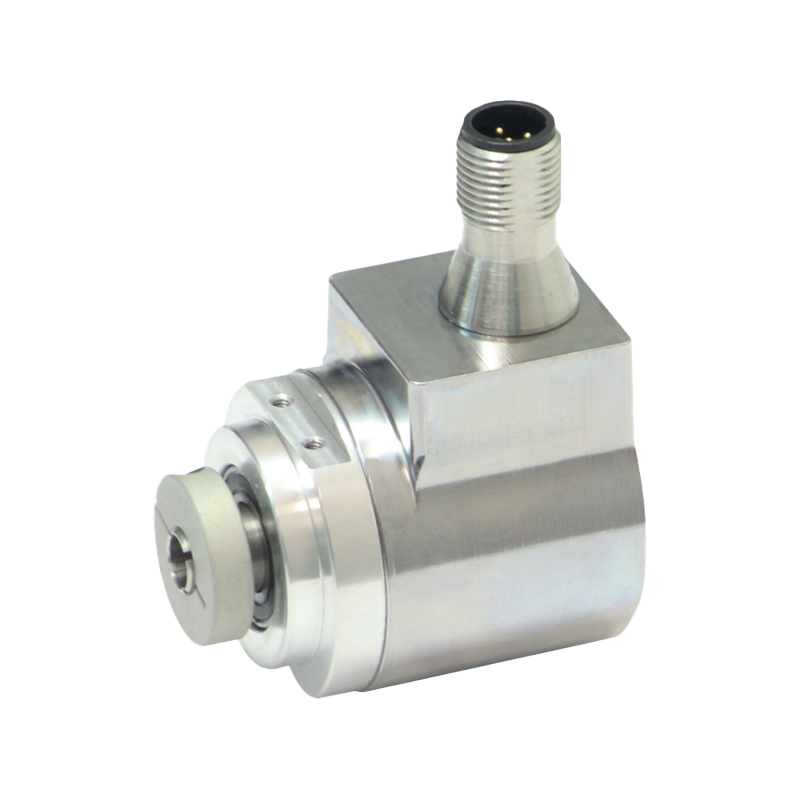

The Pepperl+Fuchs ENA36TL-R06DA5-0016-IO-RBD01 is an industrial-grade absolute rotary encoder with an IO-Link V1.1 interface, designed for high-speed, high-precision position feedback in automation systems, PLCs, and motion control applications requiring 18-30V DC supply.

Features

  • Absolute magnetic encoder with programmable resolution up to 31-bit for precise position tracking.
  • IO-Link V1.1 interface (COM3, 230.4 kBaud) enables remote parameterization, diagnostics, and process data integration for Industry 4.0.
  • High-speed operation up to 12,000 RPM with wear-free magnetic sampling for long-term reliability.
  • Robust zinc-plated steel housing with IP65/IP67 protection for demanding industrial environments.
  • Recessed 6mm stainless steel hollow shaft for secure, tool-free mounting and easy integration.

Out of stock

Description

The ENA36TL-R06DA5-0016-IO-RBD01 absolute rotary encoder utilizes advanced magnetic sampling technology to provide non-contact, wear-free position detection. This principle ensures consistent accuracy and extended operational life even under continuous high-speed rotation. The encoder delivers absolute position data directly upon power-up, eliminating the need for a homing routine.

Integrated with an IO-Link V1.1 communication interface via a standard 5-pin M12 A-coded connector, the device supports bidirectional data exchange for configuration, real-time process values, and detailed diagnostic information. Its rugged zinc-plated steel housing and IP65/IP67 ingress protection rating make it suitable for operation in harsh conditions with exposure to dust, oils, and water jets, across a wide temperature range of -40°C to +85°C.

Key Features

  • High-Precision Magnetic Sensing: Wear-free absolute position detection with programmable resolution up to 31 bits ensures exceptional long-term accuracy.
  • Industrial IO-Link Connectivity: Standardized point-to-point serial communication (V1.1, COM3) simplifies integration into smart factory and Industry 4.0 networks.
  • Robust Mechanical Construction: Zinc-plated steel housing and stainless steel shaft provide high resistance to mechanical stress, vibration, and corrosive environments.
  • Wide Operating Voltage Range: Operates from 18V to 30V DC, compatible with standard 24V industrial control systems.
  • Extended Environmental Rating: IP65/IP67 protection and a -40°C to +85°C operating temperature range guarantee performance in challenging installations.
  • Status Indication: Integrated LED provides visual feedback on operating mode and communication status for quick diagnostics.
  • Easy Mounting Design: Recessed 6mm hollow shaft allows for straightforward, tool-free installation and secure coupling.

Applications

  • High-speed servo motor and spindle position feedback in CNC machinery and robotics.
  • Absolute angular position measurement in automated material handling and packaging systems.
  • Condition monitoring and predictive maintenance on rotating equipment in industrial plants.
  • Precision motion control and indexing in assembly automation and conveyor systems.
  • Integration into Industry 4.0 and IoT networks via IO-Link for centralized data acquisition and control.

Technical Specifications

Manufacturer Part NumberENA36TL-R06DA5-0016-IO-RBD01
Sensor TypeAbsolute Rotary Encoder
Sensing PrincipleMagnetic Sampling
Operating Voltage18 - 30 V DC
Communication InterfaceIO-Link V1.1
Data RateCOM3 (230.4 kBaud)
ConnectorM12, 5-pin, A-coded
Maximum ResolutionProgrammable up to 31-bit
Maximum Rotational Speed12000 RPM
Shaft TypeRecessed Hollow Shaft
Shaft Diameter6 mm
Shaft MaterialStainless Steel
Housing MaterialZinc Plated Steel
Ingress Protection (IP)IP65 / IP67
Operating Temperature-40°C to +85°C
Dimensions (L x W x H)68 x 68 x 68 mm (Note: Conflicting data present; primary spec is 68mm cube)
WeightApprox. 270 g

Frequently Asked Questions

What is the operating voltage range for this Pepperl+Fuchs encoder?

The encoder requires a DC supply voltage between 18V and 30V. It is designed for direct compatibility with standard 24V industrial power systems. Ensure your power source is within this range and properly regulated to ensure stable operation and communication.

How do I communicate with this encoder, and what connector does it use?

The device communicates via the IO-Link V1.1 protocol at the COM3 data rate (230.4 kBaud). It uses a standard 5-pin M12 A-coded male connector for both power and bidirectional data communication. You will need a compatible IO-Link master device and an M12 A-coded female cable to interface with it.

Is this an incremental or absolute encoder, and what is its resolution?

This is an absolute rotary encoder, meaning it provides a unique position value immediately upon power-up without requiring a reference move. Its resolution is programmable up to 31 bits, allowing you to configure the number of steps per revolution to match the precision requirements of your specific application.

What are the environmental protection ratings and suitable operating conditions?

The encoder is rated IP65 and IP67, making it dust-tight and protected against temporary immersion in water (up to 1m for 30 minutes). It can operate in temperatures from -40°C to +85°C. The robust metal housing ensures reliable performance in harsh industrial environments with exposure to vibration, oils, and coolants.

How is the encoder mechanically mounted?

It features a recessed hollow shaft with a 6mm diameter. This design allows for tool-free mounting by sliding the shaft over a matching drive axle and securing it with a setscrew (not included). The compact, Cubic Sensor housing can also be mounted using its threaded holes for additional stability.

Package Includes

  • 1 x Pepperl+Fuchs ENA36TL-R06DA5-0016-IO-RBD01 Absolute Rotary Encoder

Additional Information

Weight 0.27 kg
Dimensions 6.8 × 6.8 × 6.8 cm
