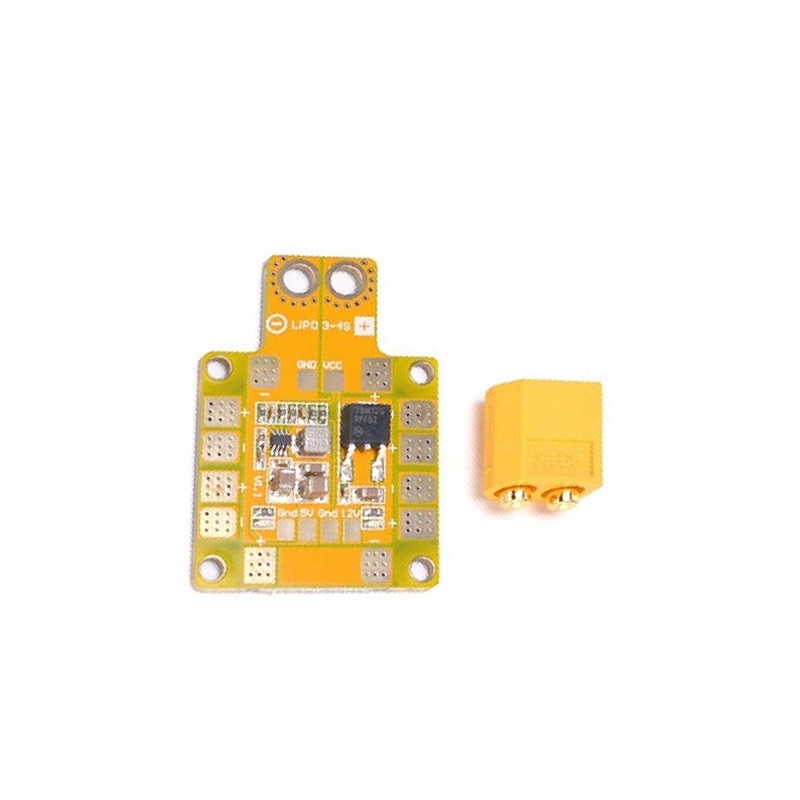

PDB-XT60 with 5V & 12V BEC Power Distribution Board

This Power Distribution Board (PDB) efficiently routes main battery power to various drone components. It integrates an XT60 connector for direct battery input and features a Battery Eliminator Circuit (BEC) that provides stable, regulated 5V and 12V outputs. This ensures critical electronics like flight controllers, receivers, video transmitters, and cameras receive clean, consistent power, optimizing overall system performance and reliability for multirotor applications.

The 5V output is specifically designed for sensitive electronics requiring precise voltage, such as your flight controller, radio receiver, and GPS modules. The 12V output is ideal for components with higher power demands, including most FPV cameras, video transmitters (VTX), and LED lighting systems. Both outputs deliver stable, filtered power to prevent interference and ensure optimal operation across your drone's auxiliary systems.

This PDB is designed to be compatible with LiPo batteries featuring an XT60 connector, which is a standard in the FPV and RC drone community. While the raw input voltage range isn't explicitly stated, PDBs with 5V and 12V BECs typically support 3S-6S LiPo batteries. Always verify the maximum input voltage specified by the manufacturer to ensure safe operation and prevent damage to the board and connected components.

This PDB is engineered to minimize electrical noise and ripple, which is crucial for sensitive drone electronics. By providing dedicated regulated 5V and 12V outputs, it isolates components from the potentially noisy main battery line, ensuring cleaner power delivery. This reduction in electrical interference leads to more stable flight controller performance, clearer FPV video feeds, and extends the lifespan of your onboard electronics in demanding flight conditions.
