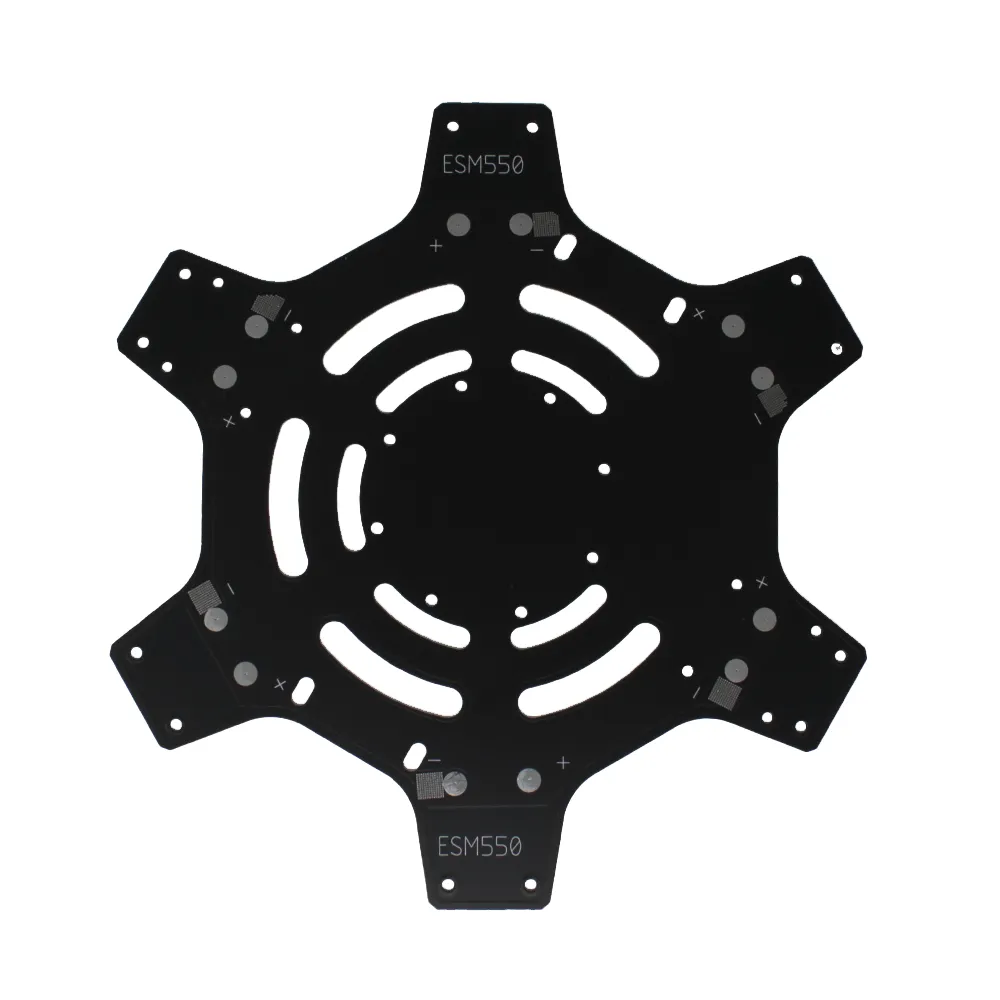

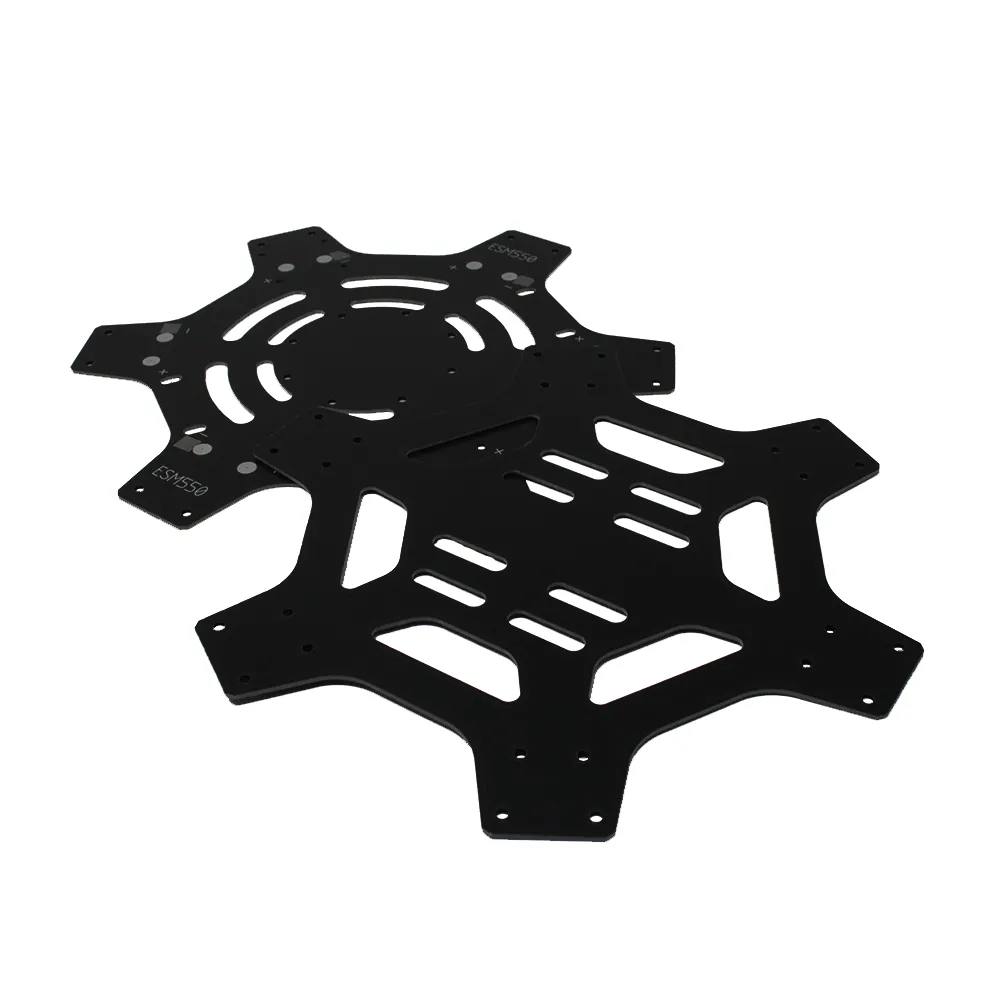

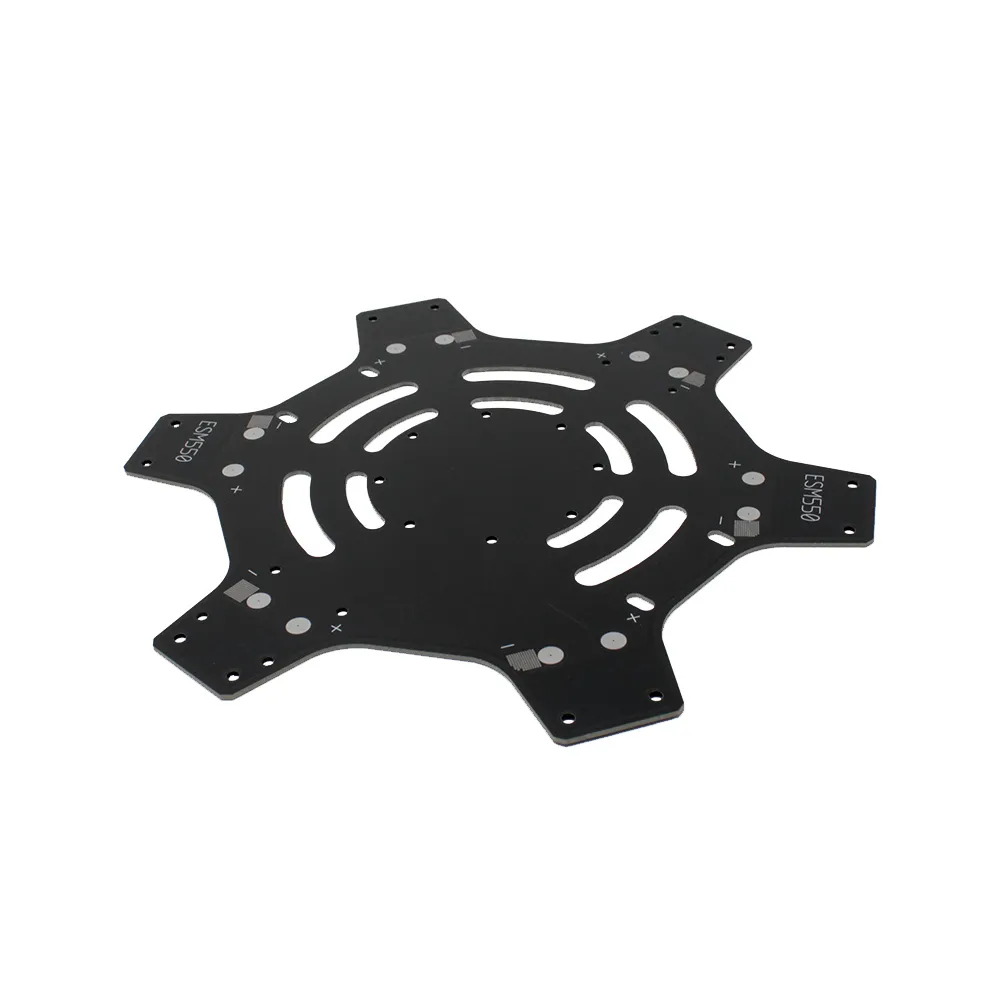

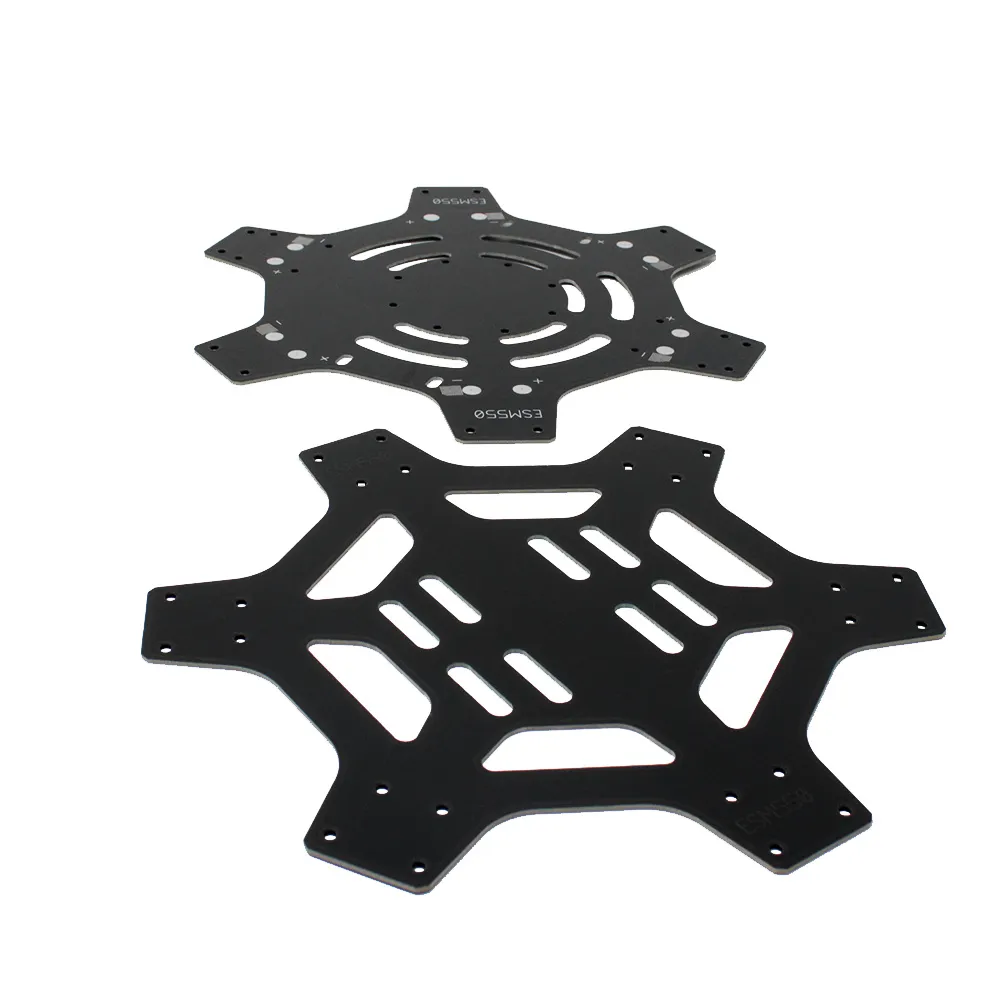

F550 / Q550 Hexacopter Frame PCB Power Distribution Board

This board integrates power distribution directly into the hexacopter's frame structure. It allows for direct soldering of ESCs and battery terminals, eliminating the need for a separate power distribution board (PDB). This design simplifies wiring, reduces clutter, and contributes to a tidier and more efficient drone build.

The PCB board is constructed from durable glass fiber, reportedly containing around 35% glass fiber content. This material choice enhances the frame's structural integrity and provides increased resistance to impacts and hard landings. It contributes to a more robust and long-lasting hexacopter platform compared to standard designs.

By integrating power distribution directly into the frame, this PCB board streamlines wiring. Pilots can solder their electronic speed controllers (ESCs) directly to the designated pads on the board. This consolidated design removes the need for additional PDBs or complex multi-connector setups, resulting in a cleaner and more organized internal electronics layout.

This specific PCB board is designed for direct compatibility with the DJI F550 and Q550 hexacopter frame series. Its mounting pattern and dimensions are tailored for these platforms. While technically usable in custom builds, optimal fit and functionality are guaranteed when used with the intended F550 or Q550 chassis, ensuring proper alignment and stability.
