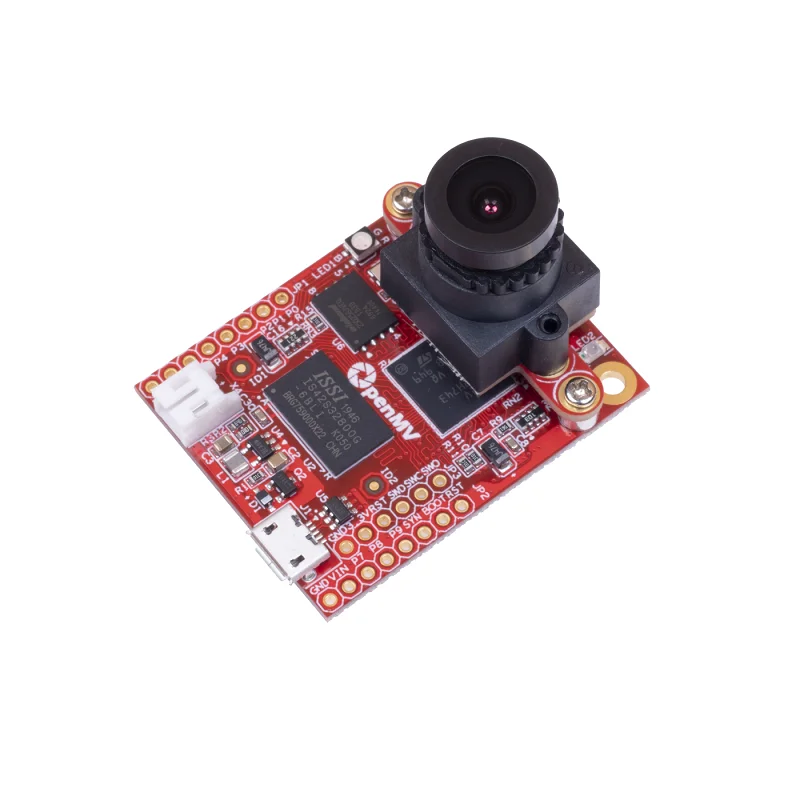

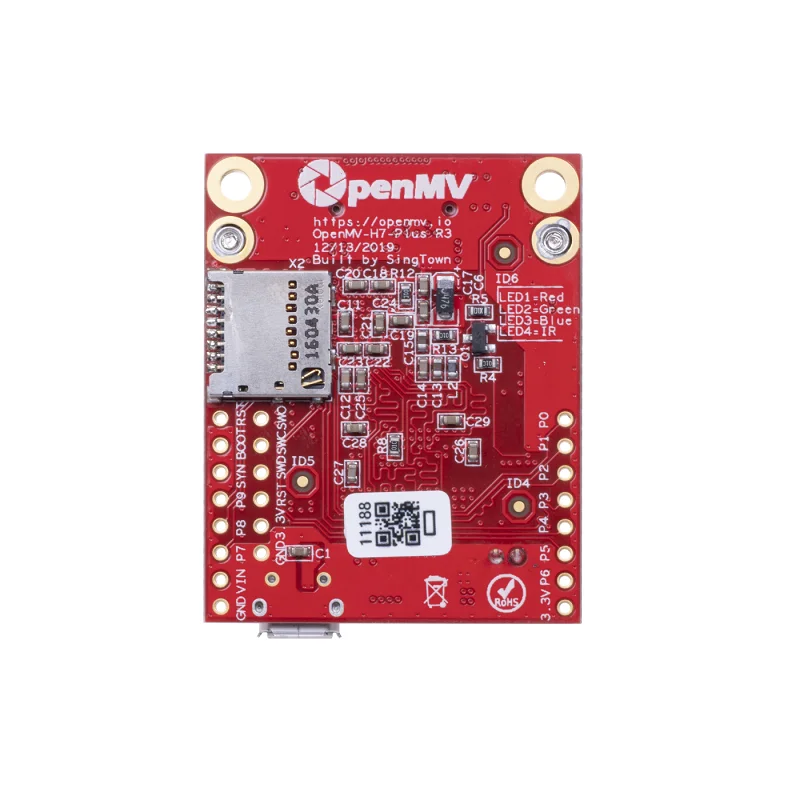

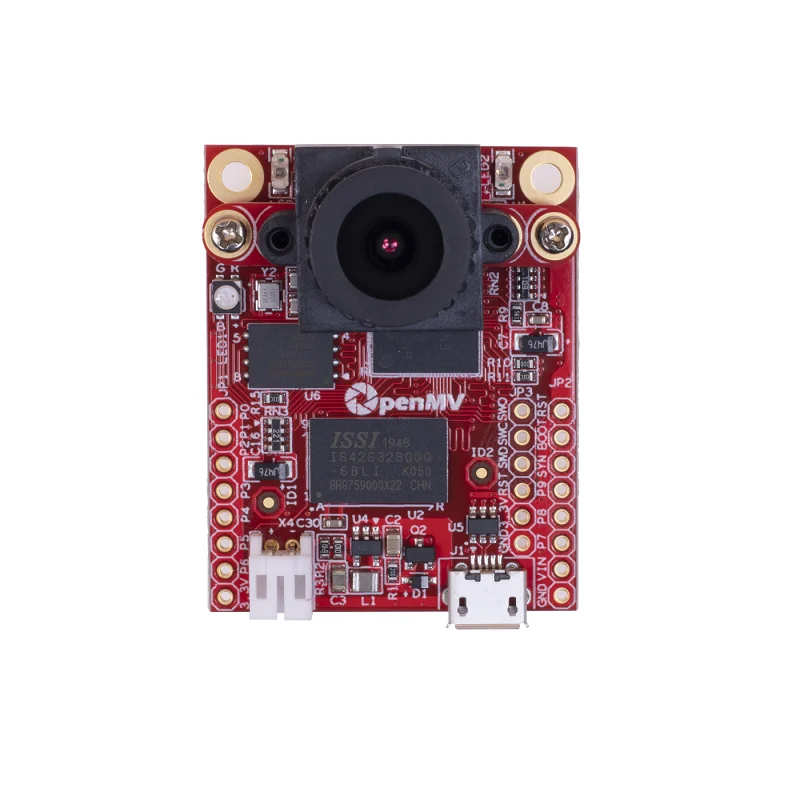

OpenMV Cam H7 Plus ARM Cortex-M7 Machine Vision Camera
The OpenMV Cam H7 Plus is a compact, low-power machine vision camera built around a powerful 480MHz ARM Cortex-M7 processor (STM32H743II). It runs high-level Python scripts via the OpenMV IDE for rapid development of real-world vision applications like object detection, tracking, and QR code decoding.
Features
- Powered by a 480MHz ARM Cortex-M7 processor (STM32H743II) for high-performance on-device machine vision processing.
- Features a 5MP OV5640 image sensor supporting up to 2592×1944 resolution for detailed image capture and analysis.
- Programmable in high-level MicroPython via the user-friendly OpenMV IDE, simplifying complex vision algorithm implementation.
- Includes extensive I/O interfaces: SPI, I2C, CAN, UART, PWM, and servo control pins for easy sensor and actuator integration.
- Low-power design suitable for embedded deployment in robotics, automation, and portable vision systems.
Out of stock
The OpenMV Cam H7 Plus is a dedicated embedded vision platform designed to bring machine vision capabilities to microcontroller-based projects. Its core is the STM32H743II Arm Cortex-M7 processor, delivering 480MHz of processing power to handle real-time image processing tasks directly on the board, eliminating the need for a separate computer. This allows for standalone operation in space-constrained or power-sensitive applications.

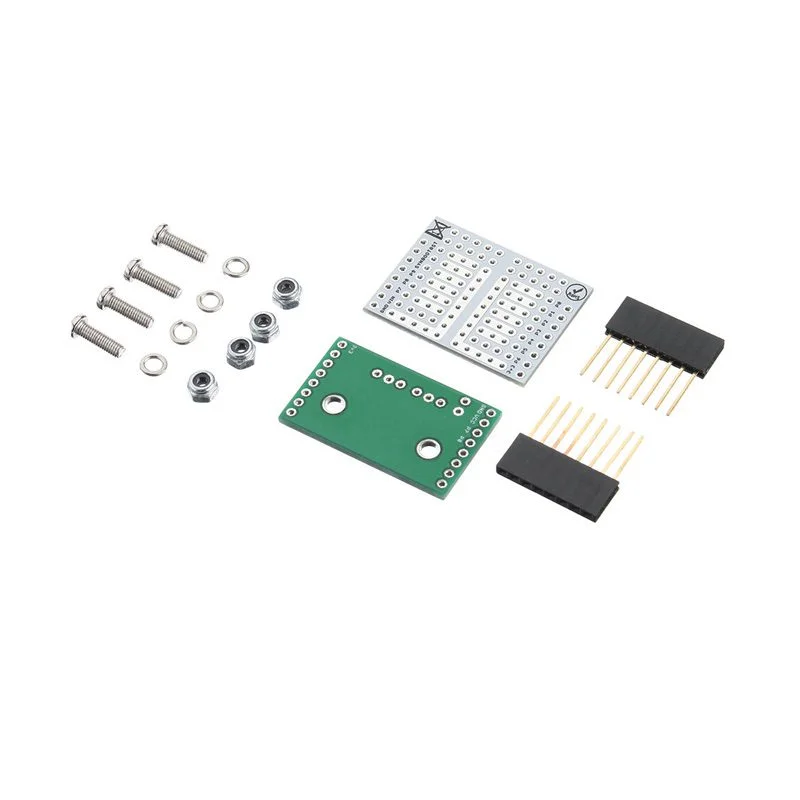

The board is pre-programmed with a MicroPython runtime and the OpenMV firmware, providing a comprehensive library of computer vision functions accessible through simple Python scripts. This approach abstracts away the complexities of low-level C/C++ coding, enabling developers, students, and makers to quickly prototype vision-based systems for object recognition, color tracking, face detection, and optical flow analysis. The removable camera module system and support for expansion shields offer flexibility for advanced applications and project scaling.
Additional Information
| Weight | 0.017 kg |
|---|---|

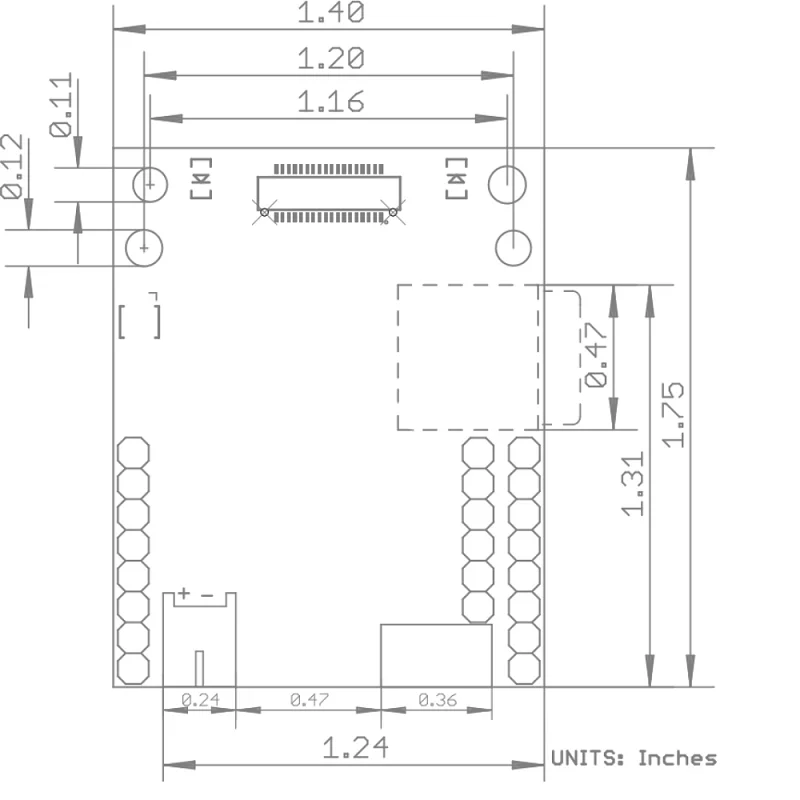

| Dimensions | 4.5 × 3.6 cm |
