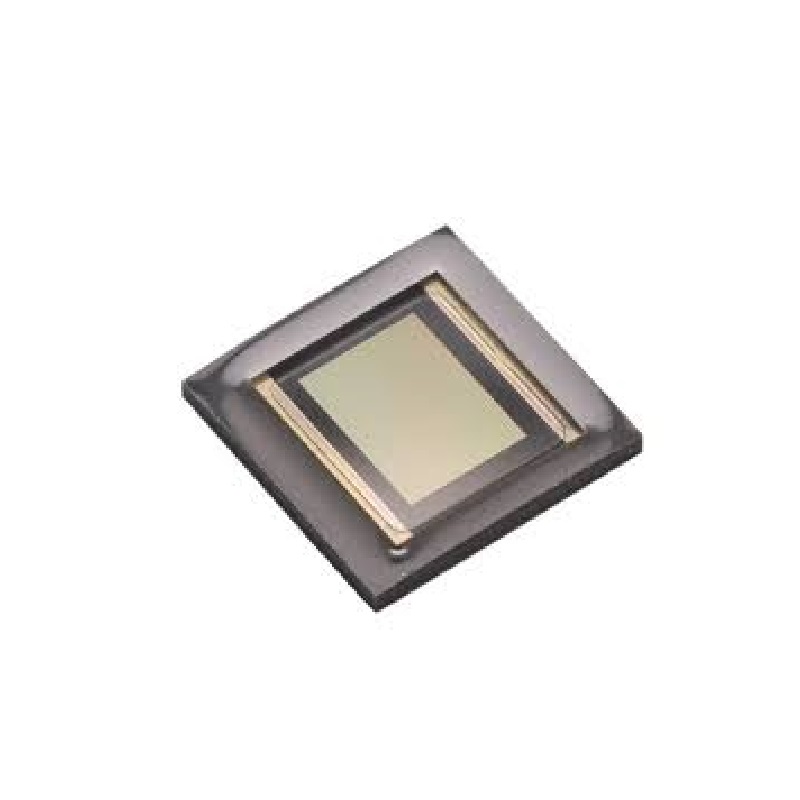

onsemi MT9P031I12STM-DR 2.2um CMOS 2592Hx1944V LCC-48 Image Sensor
The onsemi MT9P031I12STM-DR is a high-resolution 5-megapixel CMOS image sensor in a compact LCC-48 package, featuring 2.2µm pixel technology for detailed image capture. It is designed for integration into embedded vision systems, industrial cameras, and advanced imaging applications requiring a balance of resolution and power efficiency.
Features
- 5MP CMOS Image Sensor with 2592(H) x 1944(V) active pixel resolution.
- 2.2µm x 2.2µm pixel size for enhanced light sensitivity and image detail.
- Compact 48-pin LCC (Leadless Chip Carrier) package measuring 10mm x 10mm.
- Wide operating temperature range from -30°C to +75°C for industrial environments.
- Typical power consumption of 381mW, optimized for power-sensitive applications.
Out of stock
The MT9P031I12STM-DR from onsemi is a monochrome CMOS image sensor engineered for machine vision, security, and portable imaging devices. Its 2.2µm pixel architecture provides a strong signal-to-noise ratio, enabling clear image capture in various lighting conditions. The sensor outputs digital data through a parallel interface, making it compatible with standard image signal processors (ISPs) and FPGAs.
Designed for reliability, the sensor operates across an industrial temperature range, ensuring stable performance in challenging thermal environments. Its LCC package offers a robust and space-efficient footprint for PCB mounting, suitable for compact camera module designs. The sensor’s performance characteristics make it a core component for applications demanding precise visual data acquisition.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
