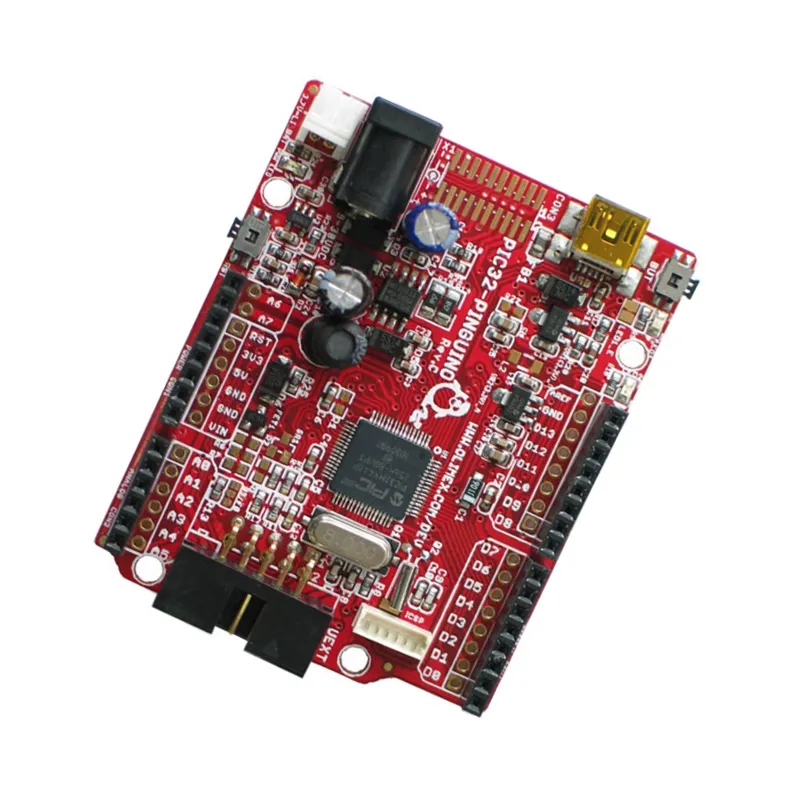

Olimex PIC32-PINGUINO-OTG PIC32MX440F256H USB Dev Board

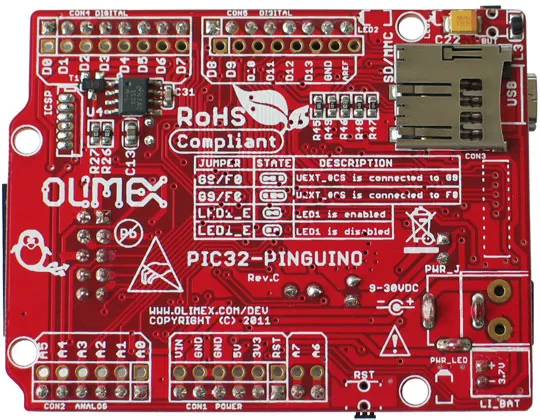

Olimex PIC32-PINGUINO-OTG PIC32MX440F256H USB Dev Board - Image 2

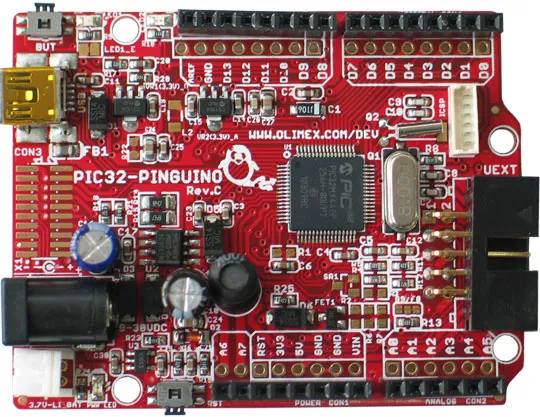

Olimex PIC32-PINGUINO-OTG PIC32MX440F256H USB Dev Board - Image 3
SKU: SBCD-0829
📋 GST Invoice Available

Olimex PIC32-PINGUINO-OTG PIC32MX440F256H USB Dev Board

₹3,139.00 (Inclusive of all taxes)
Out of Stock

The Olimex PIC32-PINGUINO-OTG is a robust development board featuring the Microchip Technology PIC32MX440F256H microcontroller, offering 80MHz performance, 256KB Flash, and 32KB RAM. Designed for industrial applications, it supports a wide 9-30V DC input, ultra-low power consumption, and USB-OTG connectivity, providing a versatile platform for embedded projects.

Features

  • Features PIC32MX440F256H MCU with 80MHz, 256KB Flash, 32KB RAM.
  • Wide input DC power supply (9-30V DC) for industrial compatibility.
  • Designed for industrial temperature range (-25°C to +85°C) and noise immunity.
  • Integrated Li-Ion battery charger for portable, ultra-low power applications.
  • Includes microSD card slot for data logging and UEXT connector for expansion.

Out of stock

Description

The Olimex PIC32-PINGUINO-OTG development board provides a powerful and user-friendly platform for embedded applications utilizing Microchip Technology’s high-performance 32-bit PIC32 microcontrollers. Equipped with a PIC32MX440F256H running at 80 MHz, it offers ample processing power and memory for a wide array of projects, from industrial automation to battery-powered handheld devices.

This board is engineered for reliability, featuring components selected to operate within an industrial temperature range of -25°C to +85°C, ensuring stability in demanding environments. Its ultra-low power voltage regulators enable efficient battery-powered operation, complemented by an on-board Li-Ion charger for seamless transition between external power and battery. With USB-OTG capabilities, a microSD card slot for data logging, and a versatile UEXT connector for external modules, the PIC32-PINGUINO-OTG offers extensive peripheral support and expansion options, making it ideal for engineers, makers, and students.

Key Features

  • Microchip Technology PIC32MX440F256H microcontroller, 80 Mhz, 256KB Flash, 32KB RAM.
  • Accepts a wide DC power supply input range from 9V to 30V, suitable for industrial 24VDC systems.
  • All components rated for industrial temperature range of -25°C to +85°C.
  • Ultra-low power voltage regulators minimize consumption, enabling battery-powered designs.
  • Integrated Li-Ion rechargeable battery power option with on-board automatic charger.
  • Includes a microSD card slot for robust data logging capabilities.
  • Features a UEXT connector for easy integration of RF, Zigbee, GSM, GPS, and other modules.
  • Built-in Real Time Clock (RTC) functionality.
  • Robust noise immune design for reliable operation in noisy electrical environments.
  • Optional Aref precise source for higher precision and temperature stability in analog readings.
  • User-friendly layout with LEDs and buttons positioned on the board's edge, accessible even with shields.
  • Components are positioned lower than connectors to prevent interference with expansion shields.
  • Utilizes a common Mini USB connector for power and data, eliminating the need for specialized cables.
  • Arduino-compatible connector spacing with added 0.1" pitch holes for breadboard compatibility.
  • Clearly labeled signals on both sides of the board for easy probing and debugging.
  • Equipped with four mounting holes for secure attachment in enclosures.
  • MiniICSP connector (0.05" step) for direct programming with PIC-KIT3 via a convertor board.

Applications

  • Industrial control systems and automation.
  • Low-power, battery-operated handheld devices.
  • Data logging applications with microSD storage.
  • Embedded sensing and measurement systems in harsh environments.
  • IoT gateways and wireless communication projects using UEXT modules.
  • Robotics control and motor drive applications.
  • Real-time clock dependent systems for scheduling and timing.

Technical Specifications

Item TypeOlimex Board
IC ChipPIC32MX440F256H
Operating Temperature-25°C to +85°C
Microcontroller Speed80 Mhz
Flash Memory256KB
RAM32KB
Power Supply Input9V to 30V DC
USBUSB-OTG (Mini USB)
ExpansionUEXT connector, microSD slot, Arduino-compatible headers
Battery SupportLi-Ion rechargeable with on-board charger

Frequently Asked Questions

What is the primary microcontroller on the Olimex PIC32-PINGUINO-OTG board?

The board features the Microchip Technology PIC32MX440F256H, a 32-bit MIPS M4K core microcontroller. It operates at 80 MHz, offering 256KB of Flash program memory and 32KB of SRAM, making it suitable for a wide range of embedded applications requiring significant processing power and memory resources.

What are the power supply options and temperature range for this board?

The Olimex PIC32-PINGUINO-OTG supports a broad DC input voltage range from 9V to 30V, accommodating various power adapters and industrial 24VDC supplies. It's engineered with components selected for an industrial temperature range of -25°C to +85°C, ensuring robust operation in challenging environments.

How does the board support portable and expandable applications?

For portable use, it includes an on-board Li-Ion battery charger and ultra-low power regulators. Expandability is provided via a microSD card slot for data logging and a UEXT connector, allowing seamless integration of modules like RF, GSM, or GPS, extending its application versatility considerably.

Which development environments and tools are compatible with the PIC32-PINGUINO-OTG?

This board is designed to be compatible with the Pinguino IDE, an Arduino-like development environment that simplifies programming. For more advanced users, it can also be programmed using Microchip Technology's MPLAB IDE and a PIC-KIT3 programmer via the miniICSP connector, requiring a separate convertor board.

Package Includes

  • 1 x Olimex PIC32-PINGUINO-OTG Development Board

Additional Information

Weight 0.05 kg
Dimensions 12 × 9 × 4 cm
