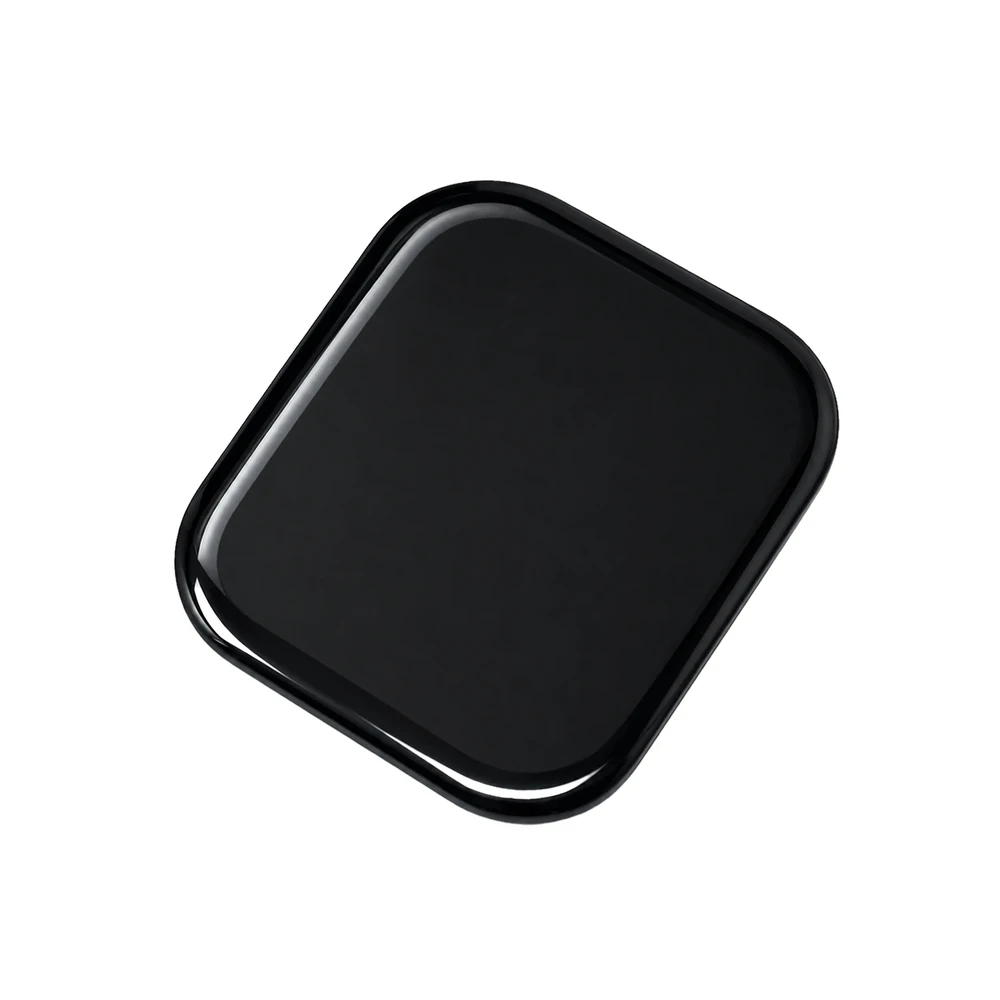

SIFLI 1.85" AMOLED Full Laminated Touch QSPI Dev Board

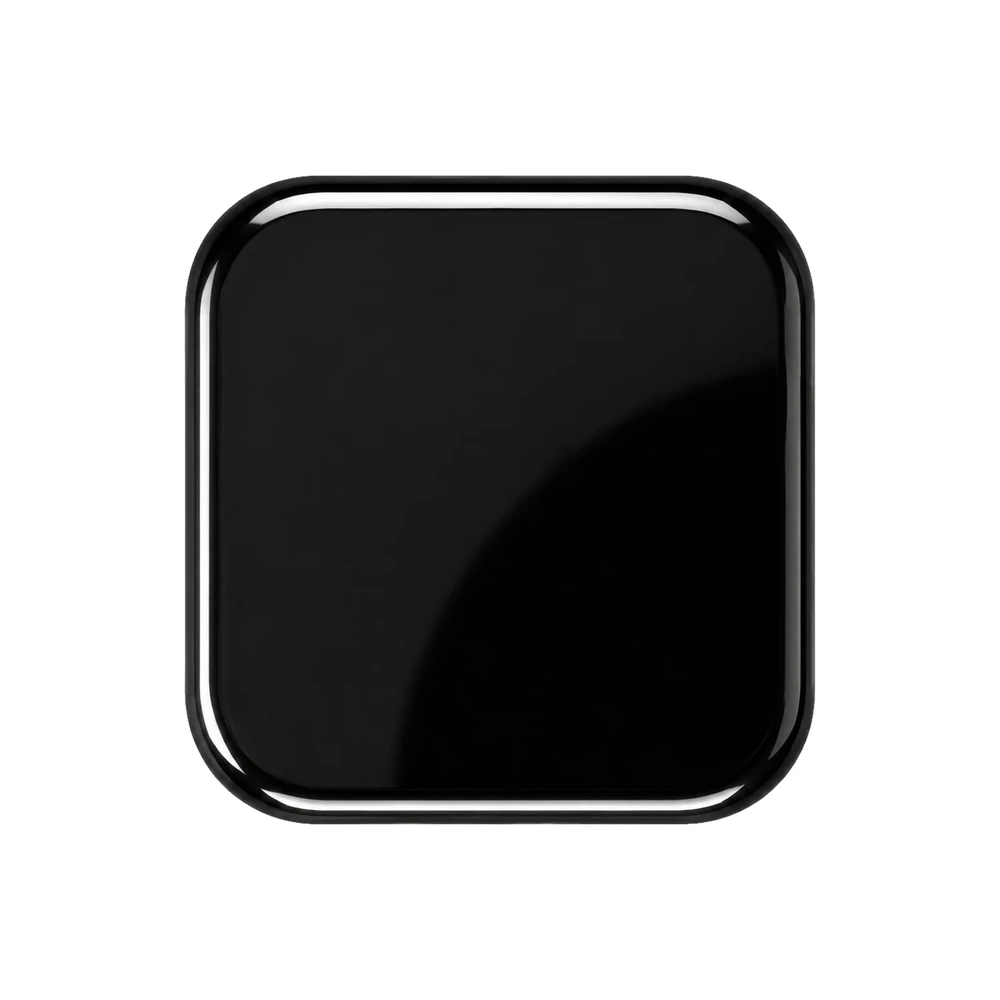

SIFLI 1.85" AMOLED Full Laminated Touch QSPI Dev Board - Image 2

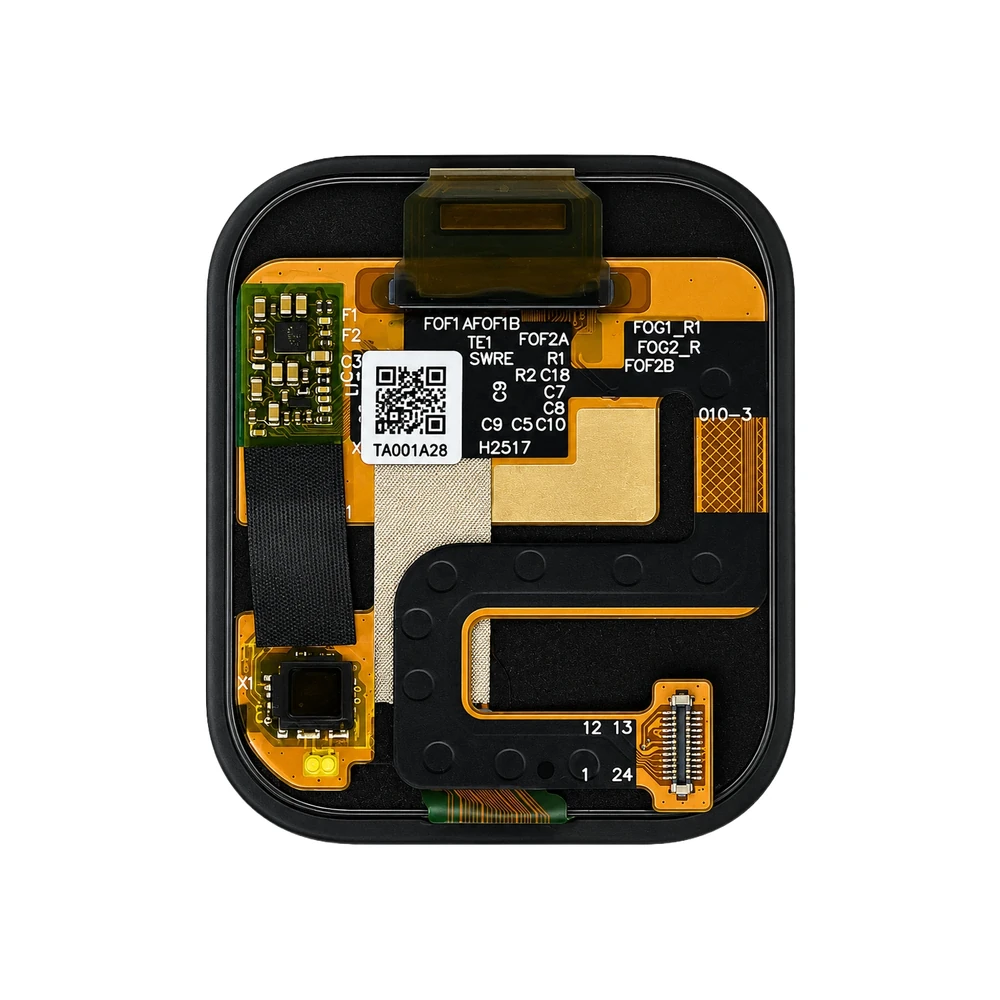

SIFLI 1.85" AMOLED Full Laminated Touch QSPI Dev Board - Image 3
SKU: SBCD-0042
📋 GST Invoice Available

SIFLI 1.85" AMOLED Full Laminated Touch QSPI Dev Board

₹1,339.00 (Inclusive of all taxes)
Out of Stock

The SIFLI 1.85-inch AMOLED Full Laminated Touch QSPI Development Board provides a vibrant 390×450 resolution display with integrated FT6146-M00 touch support, ideal for compact HMI and wearable prototypes based on the SF32LB52 platform.

Features

  • 1.85-inch AMOLED display with 390×450 resolution
  • Quad SPI (QSPI) high-speed display interface
  • Integrated FT6146-M00 touch controller for responsive HMI
  • Supports lithium battery via GH 1.25mm connector
  • Optimized for SF32LB52 wearable development platform

Out of stock

Description

The SIFLI 1.85-inch AMOLED Full Laminated Touch Screen QSPI Adapter Development Board is designed for smart wearable and compact HMI applications based on the SF32LB52 platform. It enables developers to build high-quality smartwatch and smart band prototypes with a vibrant AMOLED display, responsive touch interface, and integrated multimedia support.

The board is optimized for low-power operation and supports rich peripherals including audio, sensors, motor control, and wireless connectivity. With its compact design and ready-to-use display integration, it significantly reduces development time for next-generation wearable devices, making it ideal for IoT, fitness trackers, and embedded UI product development.

Key Features

  • Features a 1.85-inch AMOLED Full Laminated Display for vibrant visuals
  • Supports high-resolution 390×450 touchscreen with integrated controller
  • Built on the SF32LB52 wearable development platform
  • Utilizes a QSPI high-speed interface for efficient display communication
  • Designed for rapid smartwatch and smart band prototyping
  • Includes support for external audio, various sensors, and motor control
  • Optimized for low-power operation in wearable systems
  • Provides USB Type-C for power and UART communication (CH340N)

Applications

  • Smartwatch and Smart Band Prototyping
  • Compact Human-Machine Interface (HMI) Solutions
  • IoT Device Development with Rich UI
  • Fitness Trackers and Wearable Electronics
  • Embedded UI Product Development requiring AMOLED

Technical Specifications

Item TypeAMOLED Display Development Board
ModelSF32LB52 AMOLED QSPI Adapter Board
PlatformSF32LB52-MOD-1 Based System
MCU SeriesSF32LB52x
Display Size1.85 inch
Display TypeAMOLED Full Laminated
InterfaceQuad SPI (QSPI) Display Support
Resolution390 × 450
Brightness800 cd/m²
Display Connector22-pin FPC + 40-pin Header
Touch InterfaceI2C Touch Support
Touch ICFT6146-M00
Display Driver ICCO5300AF-01
Power ICBV6802W
Speaker SupportExternal 3W / 4Ω or 2W / 8Ω
Motor SupportOnboard Motor Driver Circuit
USB InterfaceUSB Type-C (CH340N UART)
SD CardMicro SD (SPI Interface)
Battery SupportLithium Battery (GH 1.25mm Connector)
Power InputBattery / USB Type-C
GPIO Expansion30-pin (2×15, 1.27mm)

Frequently Asked Questions

What microcontrollers or platforms are compatible with this SIFLI AMOLED development board?

This development board is specifically designed around the SIFLI SF32LB52 wearable development platform. While it includes a general QSPI display interface and I2C touch, full functionality leverages the SF32LB52-MOD-1 based system, providing integrated support for audio, sensors, and motor control, making it a complete solution for dedicated wearable projects.

What are the primary display and touch specifications of this board?

The board features a 1.85-inch AMOLED full laminated display with a resolution of 390x450 pixels and a brightness of 800 cd/m². Its high-speed Quad SPI (QSPI) interface ensures efficient data transfer. Touch input is managed by the integrated FT6146-M00 IC, supporting responsive I2C communication for interactive user interfaces.

How is the SIFLI development board powered, and what battery options are available?

The SIFLI AMOLED development board can be powered via its USB Type-C port, which also provides UART communication through a CH340N chip. Additionally, it features a dedicated GH 1.25mm connector for direct lithium battery support, making it suitable for portable, low-power wearable applications where untethered operation is crucial.

What kind of peripheral expansion and debugging options does this board offer?

The board includes a 30-pin (2x15, 1.27mm pitch) GPIO expansion header, allowing integration of various external components. For data storage, it supports Micro SD cards via an SPI interface. The USB Type-C port provides a convenient UART interface for debugging and flashing, simplifying the development workflow for embedded projects.

Package Includes

  • 1 x SiFli Technologies 1.85 inch AMOLED touch screen QSPI adapter SiChe development board

Additional Information

Weight 0.009 kg
Dimensions 5 × 5 × 3 cm
