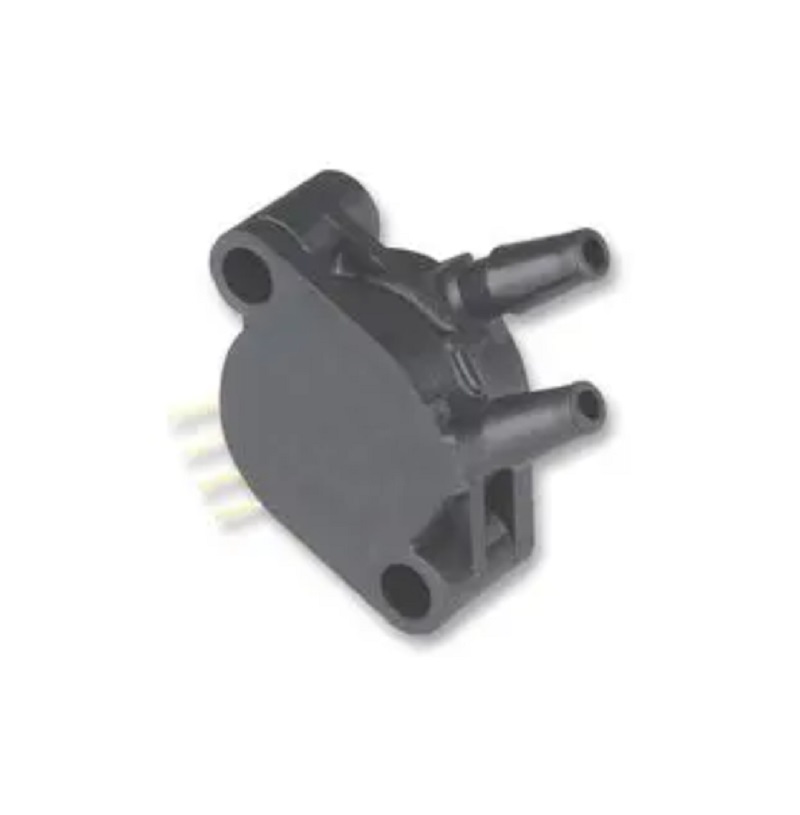

NXP Semiconductors MPX2010DP Differential Pressure Sensor, 0-10 kPa, 2.5 mV/kPa, 4-Pin SIP
The NXP Semiconductors MPX2010DP is a differential, dual-port silicon piezoresistive pressure sensor in a 4-pin SIP package, delivering a ratiometric analog voltage output proportional to applied pressure. It is laser-trimmed for precise calibration and temperature compensation, making it suitable for integration into industrial instrumentation and control systems requiring 10-16V DC supply.
Features
- Differential pressure sensing with a 0 to 10 kPa range and 2.5 mV/kPa sensitivity.
- On-chip temperature compensation and calibration for stable output from -40°C to 125°C.
- Ratiometric analog voltage output simplifies interface with ADCs and microcontrollers.
- Fast 1 ms response time for dynamic pressure monitoring applications.
- Robust silicon MEMS construction in a 4-pin SIP package for reliable performance.
Out of stock
The MPX2010DP is a piezoresistive micro-machined silicon pressure sensor designed for differential pressure measurement. Its integrated strain gauge and thin-film resistor network produce a highly linear analog voltage signal directly proportional to the applied pressure differential between its two ports. The device is laser-trimmed at the factory for precise span and offset calibration, ensuring accuracy and repeatability.
Engineered for durability, the sensor operates across a wide temperature range of -40°C to 125°C and is compensated for thermal effects between 0°C and 85°C. Its ratiometric output, relative to a 10-16V DC supply, simplifies signal conditioning and integration with data acquisition systems, industrial PLCs, and microcontroller-based designs requiring reliable low-pressure monitoring.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 7 × 10 × 3 cm |
