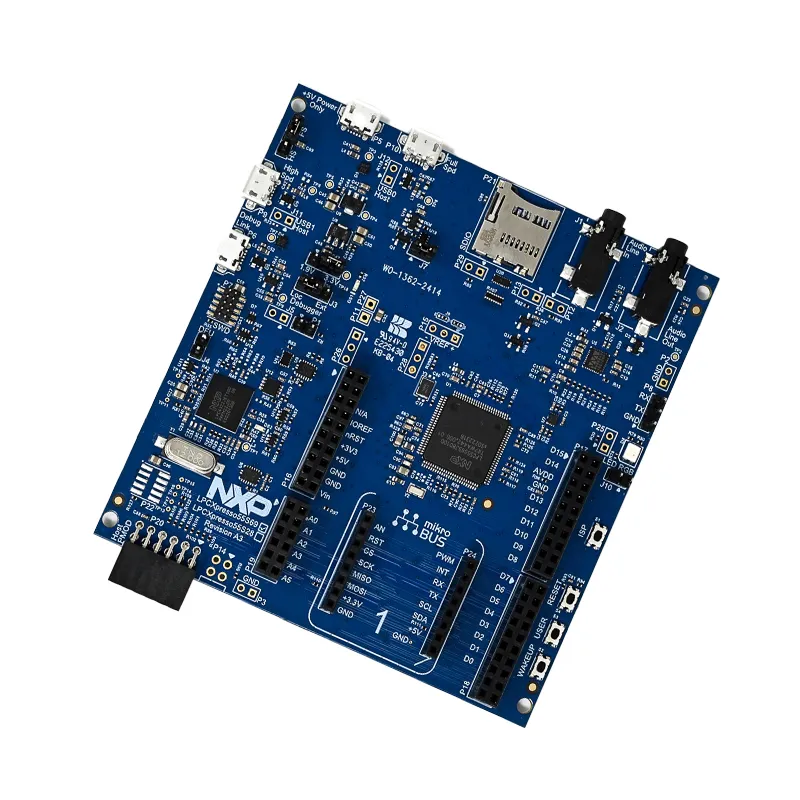

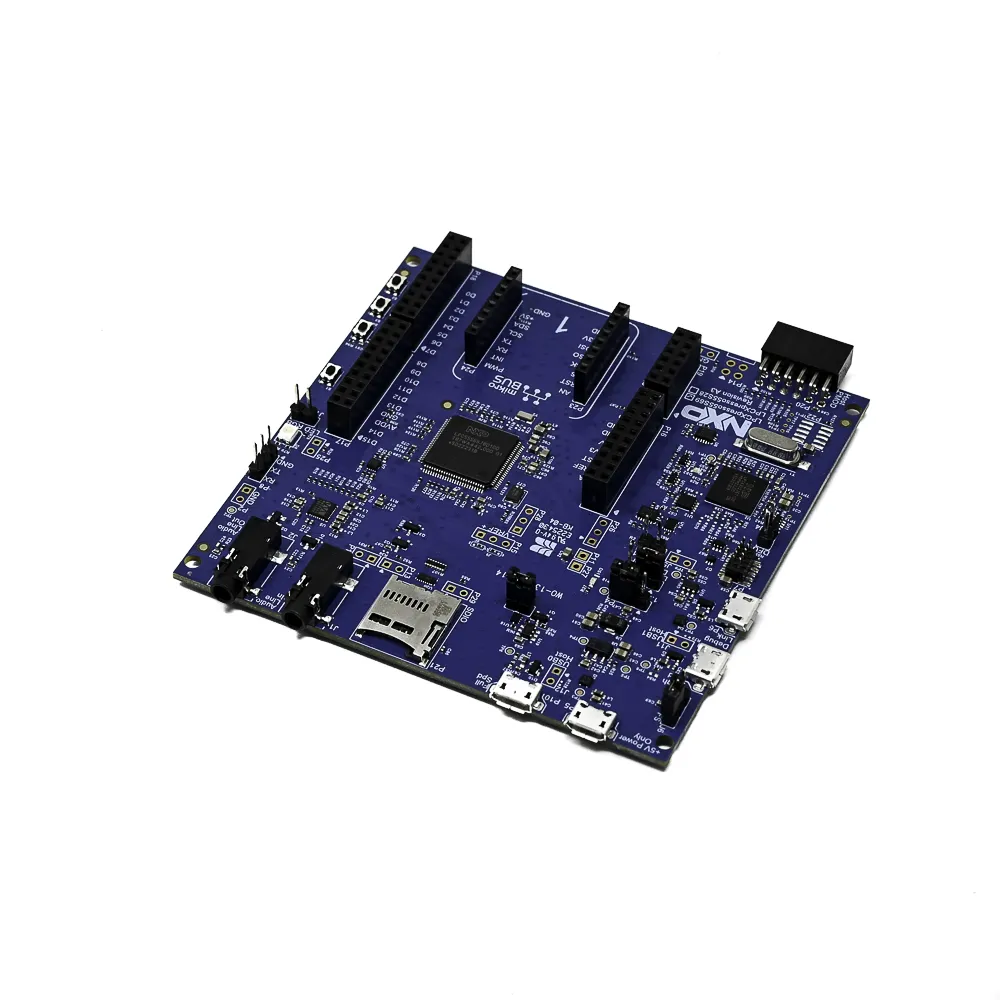

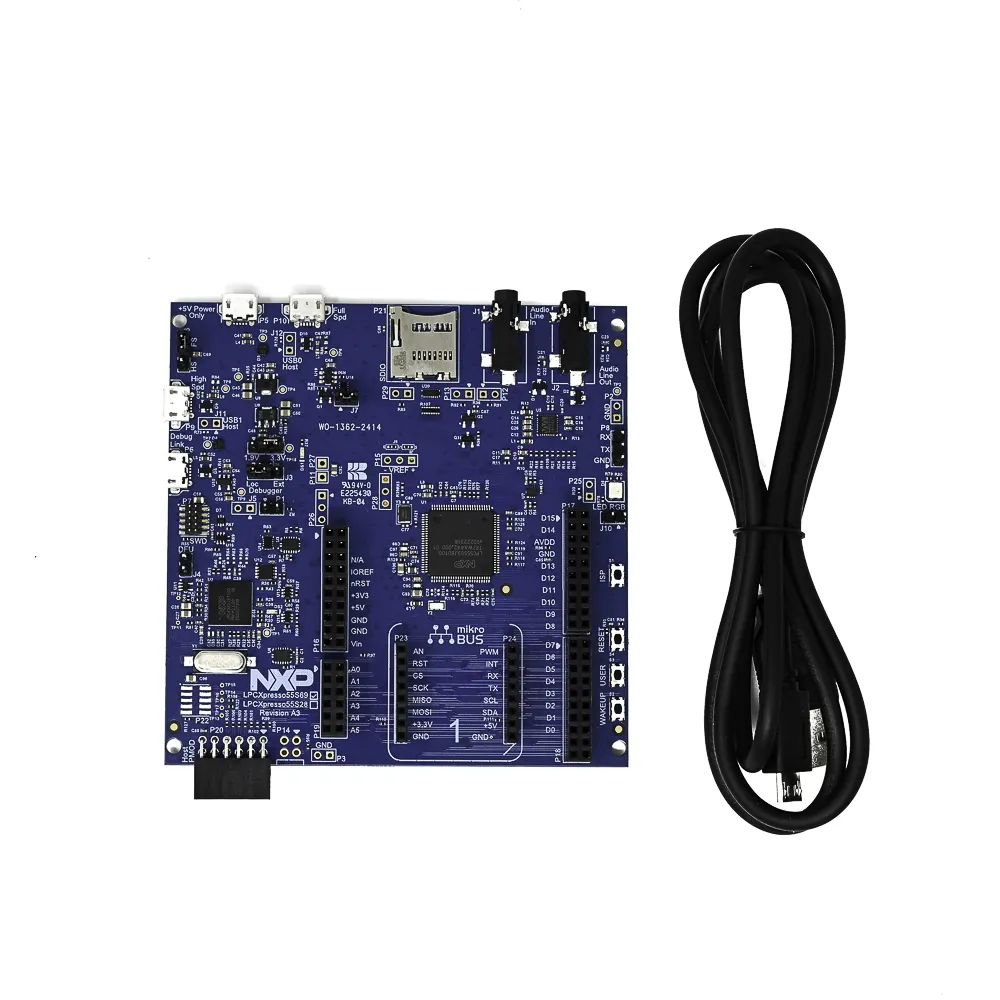

NXP Semiconductors LPC55S69-EVK Dev Board with Cortex-M33 MCU
The NXP Semiconductors LPC55S69-EVK is a comprehensive development board for the powerful Arm Cortex-M33 based LPC55S69 microcontroller, featuring an integrated Link2 debug probe, audio subsystem, and accelerometer. Designed for rapid prototyping, it offers versatile expansion options including Arduino UNO Rev3, MikroE Click, and Pmod compatibility for a wide range of embedded applications.
Features
- Arm Cortex-M33 based LPC55S69 MCU with integrated security features.
- On-board Link2 debug probe for seamless development and debugging.
- Features an NXP Semiconductors MMA8652FCR1 accelerometer and stereo audio codec.
- Extensive expansion via Arduino UNO Rev3, MikroE Click, and Pmod connectors.
- Fully supported by NXP Semiconductors’s MCUXpresso suite for streamlined development.
Out of stock
The LPCXpresso55S69 development board serves as an ideal platform for evaluating and developing with the NXP Semiconductors LPC55S6x MCU series, built upon the high-performance Arm Cortex-M33 architecture. This board integrates a robust on-board debug probe, enabling efficient code deployment and debugging without requiring external tools. It also includes an audio subsystem and an NXP Semiconductors MMA8652FCR1 accelerometer, providing immediate capabilities for multimedia and motion-sensing projects.
Designed for flexibility, the LPCXpresso55S69 offers multiple options for expanding functionality with off-the-shelf add-on boards. It features LPCXpresso-V3 expansion connectors compatible with the Arduino UNO Rev3 standard, MikroElektronika Click board expansion, and a Pmod compatible connector, facilitating integration of various networking, sensor, display, and interface modules. The board is fully supported by NXP Semiconductors’s comprehensive MCUXpresso suite of tools, which provides essential device drivers, middleware, and examples for rapid application development, alongside configuration tools and an optional free IDE. This software ecosystem ensures compatibility with open-source RTOS like FreeRTOS, popular toolchains from Arm and IAR, and external debug probes from Segger and P&E Micro, offering a versatile and well-supported development environment.
Additional Information
| Weight | 0.221 kg |
|---|---|
| Dimensions | 24 × 17 × 5 cm |
