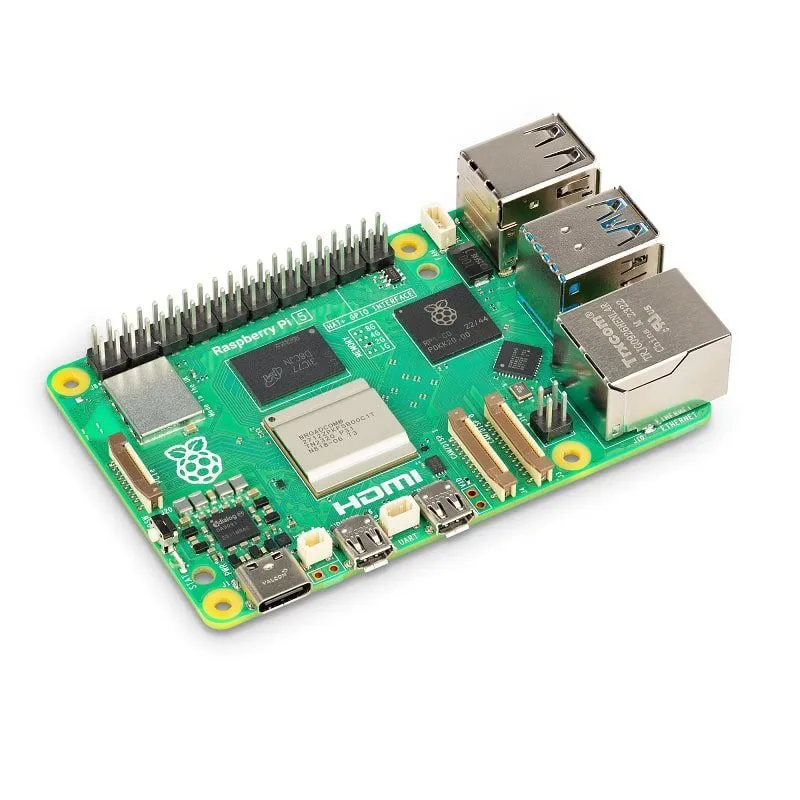

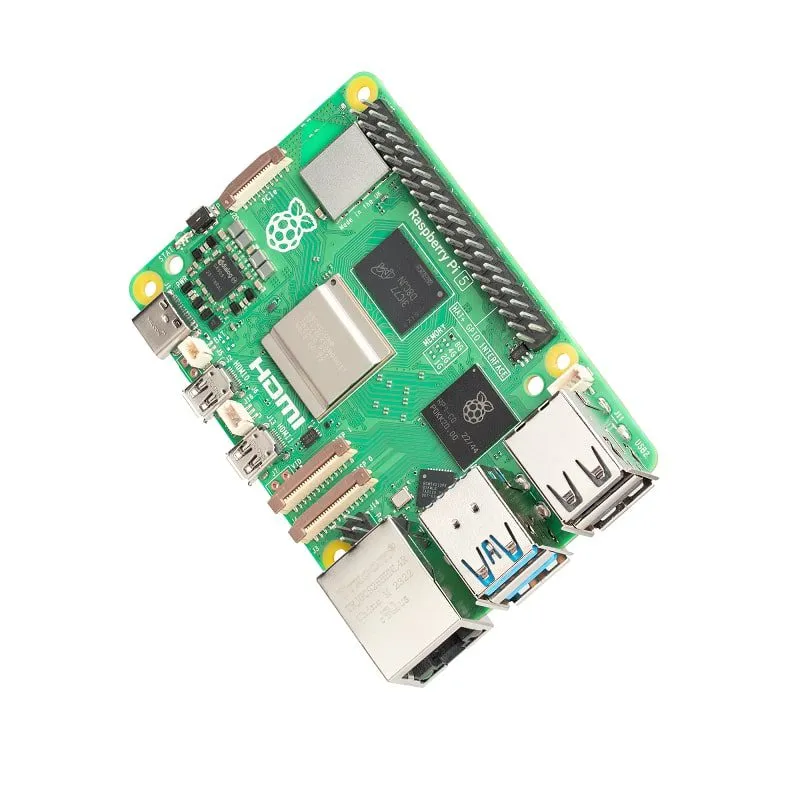

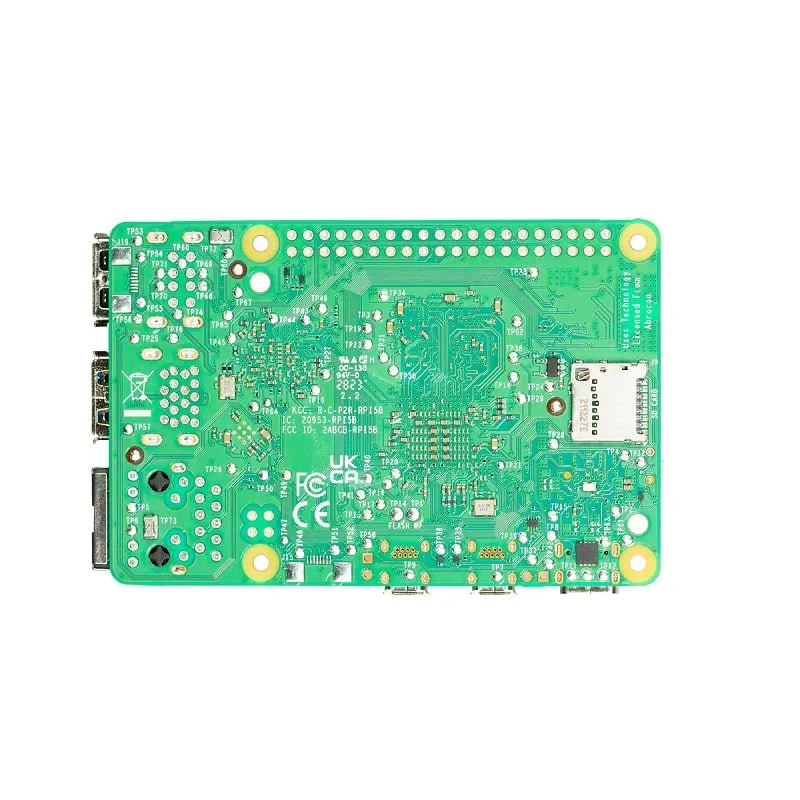

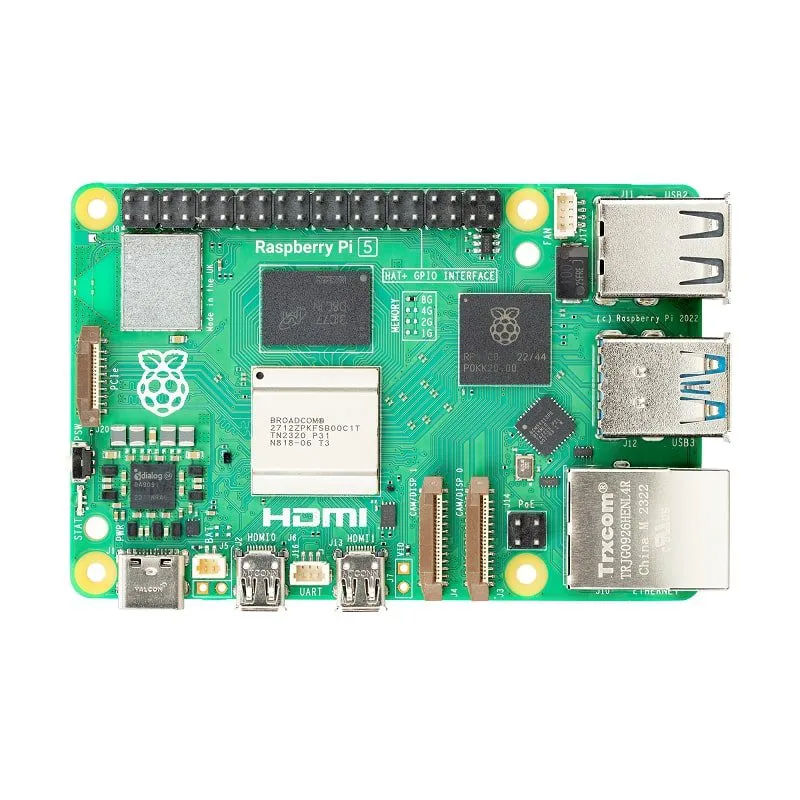

Raspberry Pi 5 with 2GB RAM
Raspberry Pi 5 with 2GB RAM - Image 2
Raspberry Pi 5 with 2GB RAM - Image 3
Raspberry Pi 5 with 2GB RAM - Image 4
Raspberry Pi 5 with 2GB RAM - Image 5
Raspberry Pi 5 with 2GB RAM - Image 6
SKU: SBCD-0913
📋 GST Invoice Available

Raspberry Pi 5 with 2GB RAM

₹8,009.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi 5 with 2GB RAM is the latest generation single board computer, featuring a powerful 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz for significantly enhanced performance. It integrates a Real-Time Clock, dual USB 3.0 and USB 2.0 ports, Gigabit Ethernet with PoE support, and Bluetooth 5.0, making it ideal for a wide range of embedded and desktop applications.

Features

  • Powered by a 2.4GHz 64-bit quad-core Arm Cortex-A76 CPU for 2-3x performance uplift.
  • Features an 800MHz VideoCore VII GPU supporting dual 4Kp60 HDMI outputs.
  • Offers high-speed connectivity with dual-band 802.11ac Wi-Fi, Bluetooth 5.0, and Gigabit Ethernet.
  • Includes a Real-Time Clock (RTC) and a PCIe 2.0 x1 interface for fast peripherals.
  • Equipped with 2GB LPDDR4X-4267 SDRAM for efficient multitasking.

Out of stock

Description

The Raspberry Pi 5 with 2GB RAM represents a significant leap in single board computing, driven by its powerful 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz. This architecture delivers a substantial 2–3x increase in CPU performance compared to the Raspberry Pi 4, providing a robust foundation for more demanding applications. Complementing this, the integrated 800MHz VideoCore VII GPU offers a considerable boost in graphics processing, enabling fluid dual 4Kp60 display output via its micro HDMI ports and enhancing the capabilities of the reimagined Raspberry Pi Image Signal Processor for advanced camera applications.

Designed for both consumer desktop use and industrial integration, the Raspberry Pi 5 builds upon its predecessors with critical hardware and software enhancements. It features a dedicated PCIe 2.0 x1 interface for connecting high-speed peripherals, an on-board Real-Time Clock (RTC) powered by an external battery for accurate timekeeping, and an integrated power button for convenient operation. Connectivity is robust, including dual USB 3.0 and USB 2.0 ports, Gigabit Ethernet with PoE+ support (requires HAT), and advanced wireless capabilities with 2.4GHz/5.0GHz 802.11ac Wi-Fi and Bluetooth 5.0/BLE. These upgrades position the Raspberry Pi 5 as a versatile platform for a new generation of embedded and general-purpose computing projects.

Key Features

  • 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU with 512KB L2 caches and 2MB shared L3 cache.
  • VideoCore VII GPU, enhancing graphics performance and supporting dual displays.
  • 2GB LPDDR4X-4267 SDRAM for fast memory access.
  • Dual-band 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi connectivity.
  • Bluetooth 5.0 and Bluetooth Low Energy (BLE) for wireless peripheral integration.
  • Micro SD card slot supporting high-speed SDR104 mode.
  • Two USB 3.0 ports (5Gbps simultaneous operation) and two USB 2.0 ports.
  • Gigabit Ethernet with Power over Ethernet Plus (PoE+) support (requires separate HAT).
  • Two 4-lane MIPI camera/display transceivers for expanded multimedia options.
  • PCIe 2.0 x1 interface for connecting high-speed NVMe SSDs or other peripherals.
  • 5V/5A DC power input with Power Delivery (PD) enabled via USB-C.
  • Standard Raspberry Pi 40-pin GPIO header for extensive expandability.
  • Real-Time Clock (RTC) with external battery support for persistent timekeeping.
  • Convenient on-board power button for safe system shutdown and startup.

Applications

  • Desktop replacement and general-purpose computing.
  • Edge AI inference and machine learning projects.
  • Robotics control and automation systems.
  • IoT gateways and smart home hubs.
  • Multimedia centers and 4K digital signage.
  • Industrial control systems and embedded applications.
  • Remote server management via IP KVM solutions.

Technical Specifications

Model No. / NameRaspberry Pi 5
Processor2.4GHz 64-bit quad-core Arm Cortex-A76 CPU
GPUVideoCore VII
RAM2 GB LPDDR4X-4267 SDRAM
Wireless Connectivity2.4 GHz and 5.0 GHz 802.11ac Wi-Fi, Bluetooth 5.0 / BLE
USB Ports2 × USB 3.0 (5Gbps), 2 × USB 2.0
EthernetGigabit Ethernet (with PoE+ support)
Display Output2 × micro HDMI ports (up to 4Kp60 supported)
Camera/Display Interface2 × 4-lane MIPI transceivers
PCIePCIe 2.0 x1 interface
GPIO HeaderStandard 40-pin GPIO
StorageMicro SD card slot (SDR104 mode)
Power Input5V/5A DC (USB-C PD enabled)
Operating Temperature-10 to 60 °C
Dimensions (LxW)85 mm × 56 mm
Weight105 g

Frequently Asked Questions

What power supply is recommended for the Raspberry Pi 5 2GB?

The Raspberry Pi 5 requires a 5V/5A DC power supply, preferably a USB-C Power Delivery (PD) enabled one. Using a lower-spec supply, particularly with high-draw peripherals, can lead to instability and may void the warranty. Ensure adequate power for reliable operation.

Does the Raspberry Pi 5 support NVMe SSDs?

Yes, the Raspberry Pi 5 features a dedicated PCIe 2.0 x1 interface. This allows for connecting NVMe SSDs via a compatible M.2 HAT or adapter, providing significantly faster storage performance compared to the traditional microSD card. This enhances I/O intensive applications.

Can I run a desktop OS on the Raspberry Pi 5 2GB?

Absolutely. The Raspberry Pi 5 2GB is fully capable of running desktop operating systems like Raspberry Pi OS (Debian-based), offering a smooth user experience. Its improved CPU and GPU performance, combined with dual 4K display support, make it suitable for general computing tasks, web browsing, and multimedia.

Is the Raspberry Pi 5 compatible with existing HATs?

While the 40-pin GPIO header remains, the Raspberry Pi 5 introduces some physical changes and new features like the RTC and power button. Some older HATs might require minor modifications or specific drivers. It's recommended to verify compatibility with the HAT manufacturer or use HATs specifically designed for the Pi 5.

How does the Real-Time Clock (RTC) feature work on the Pi 5?

The Raspberry Pi 5 includes an integrated Real-Time Clock, which keeps accurate time even when the board is unpowered. It requires an external coin cell battery (CR2032, not included) to maintain its function. This is crucial for applications requiring precise timekeeping without relying on network synchronization at startup.

Package Includes

  • 1 × Raspberry Pi 5 with 2GB RAM

Additional Information

Weight 0.105 kg
Dimensions 8.5 × 5.6 cm
