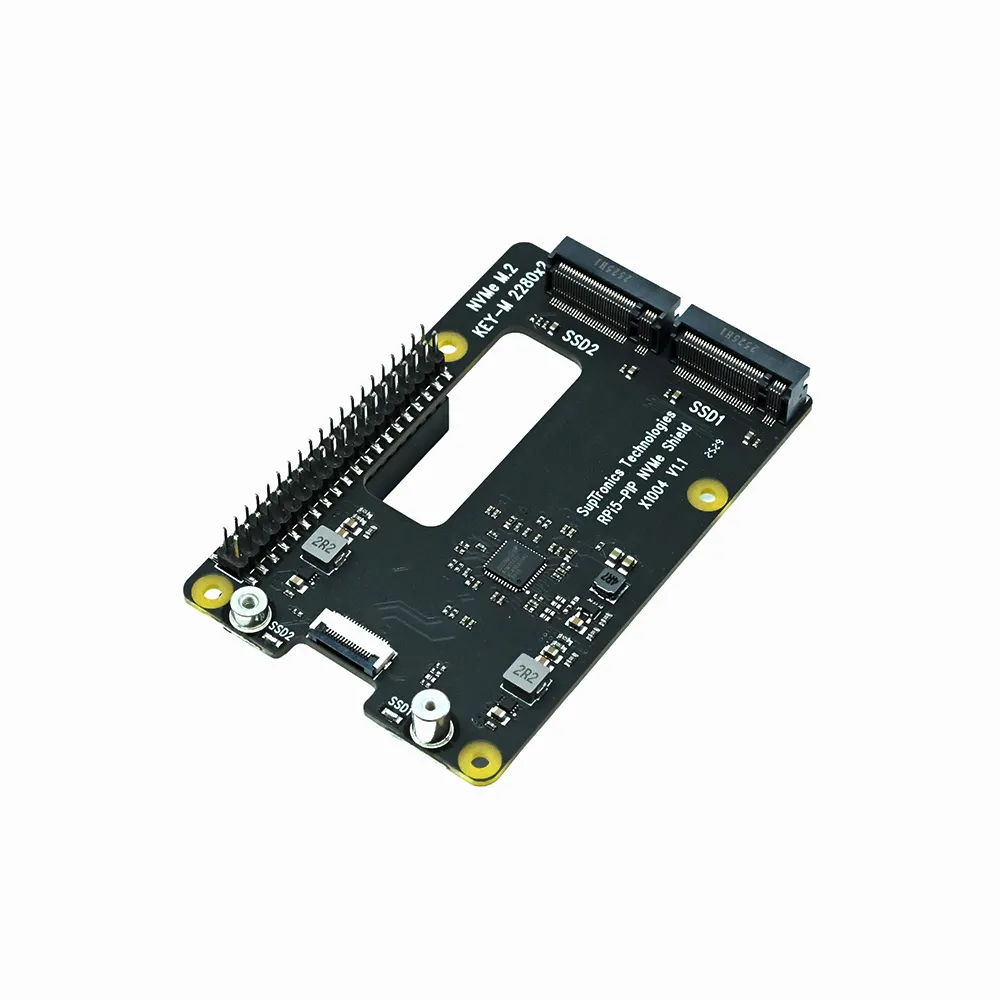

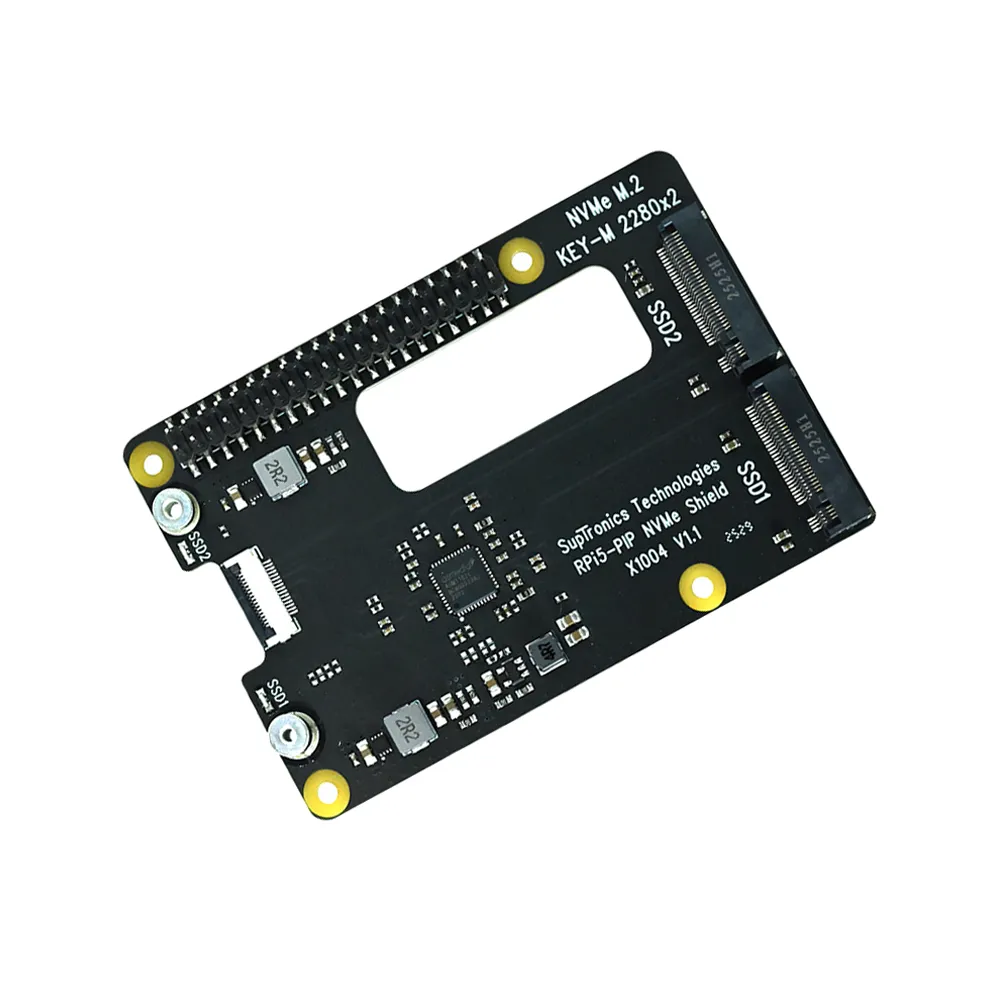

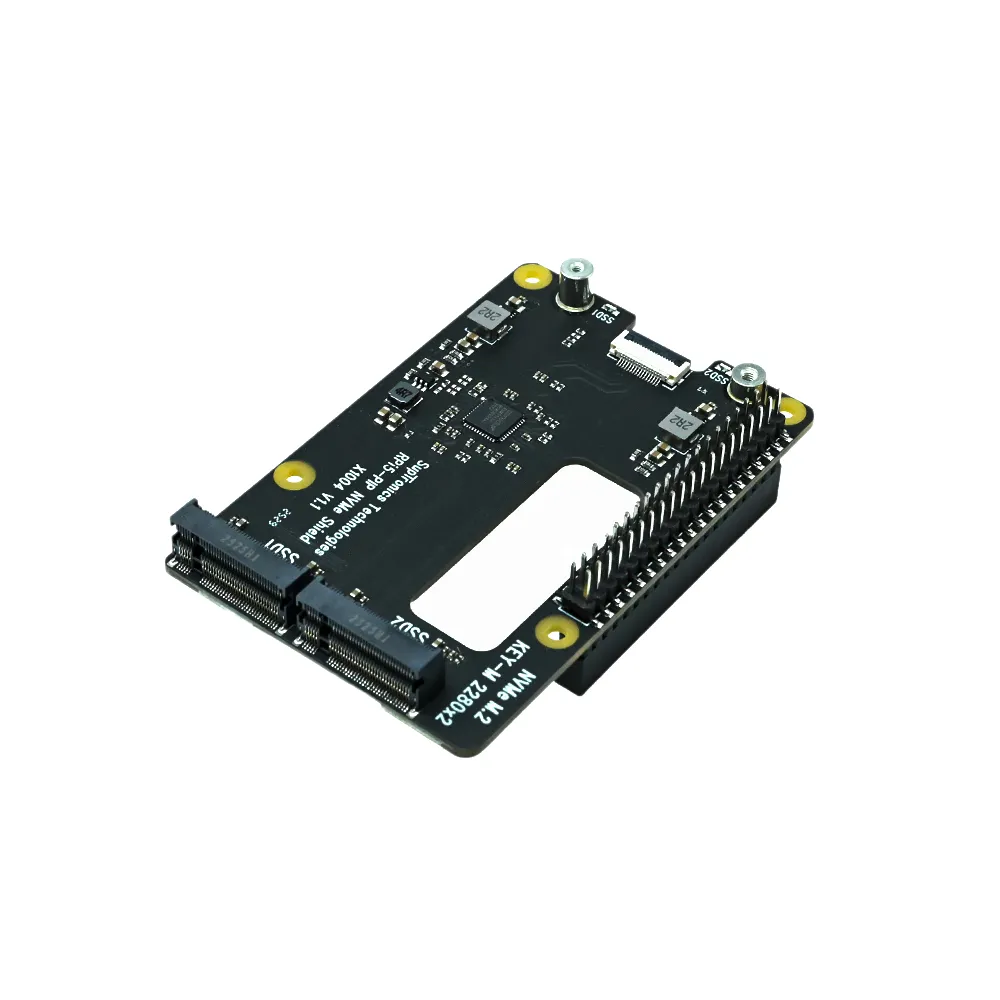

Geekworm X1004 Dual 2280 NVMe SSD Shield for Pi 5
The Geekworm X1004 is a dual M.2 NVMe SSD shield engineered specifically for the Raspberry Pi 5, enabling significant storage expansion with support for two 2280 NVMe drives up to 8TB total. It integrates seamlessly via PCIe 2.0, delivering fast data transfer rates up to 5Gbps for high-performance applications.
Features
- Dual M.2 2280 NVMe SSD support, expanding Raspberry Pi 5 storage up to 8TB (4TB + 4TB).
- Utilizes Raspberry Pi 5’s PCIe 2.0 interface for high-speed data transfer up to 5Gbps.
- HAT-compatible design allows stacking with other expansion boards and works with official Pi 5 coolers.
- Integrated LED indicators provide clear visual feedback on power and drive activity status.
- Powered directly via the 40-pin GPIO header and PCIe FFC, supporting HAT+ standby power management.
Out of stock
The Geekworm X1004 shield is expertly designed to augment the storage capabilities of your Raspberry Pi 5. It mounts directly on top, similar to a traditional HAT, ensuring a compact footprint while still providing full access to the Pi’s 40-pin GPIO header. This intelligent design allows for the concurrent use of other HATs, maximizing the functionality of your Raspberry Pi 5 system.
Engineered for reliable operation, the X1004 is fully compatible with the Raspberry Pi’s official passive and active coolers, facilitating efficient heat dissipation to maintain optimal performance even under demanding workloads. Robust mounting holes and standoffs protect the installed NVMe SSDs and contribute to effective thermal management. Additionally, built-in blue LED indicators provide real-time status updates for power and disk activity, eliminating guesswork during operation.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 12 × 9 × 3.5 cm |
