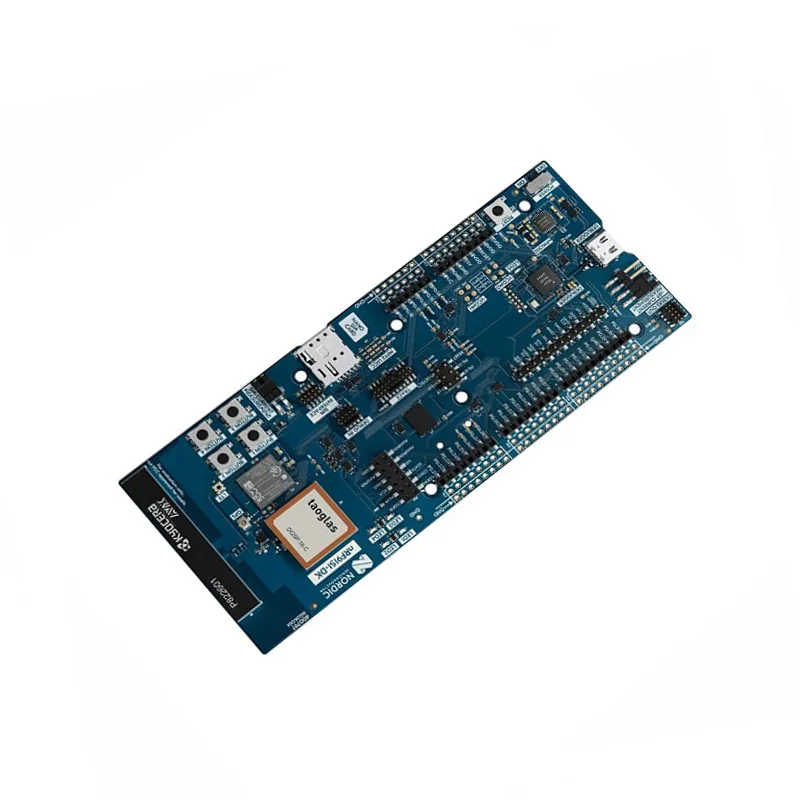

Nordic Semiconductor Semiconductor nRF9151-DK LTE-M/NB-IoT GNSS DECT NR+ DevKit

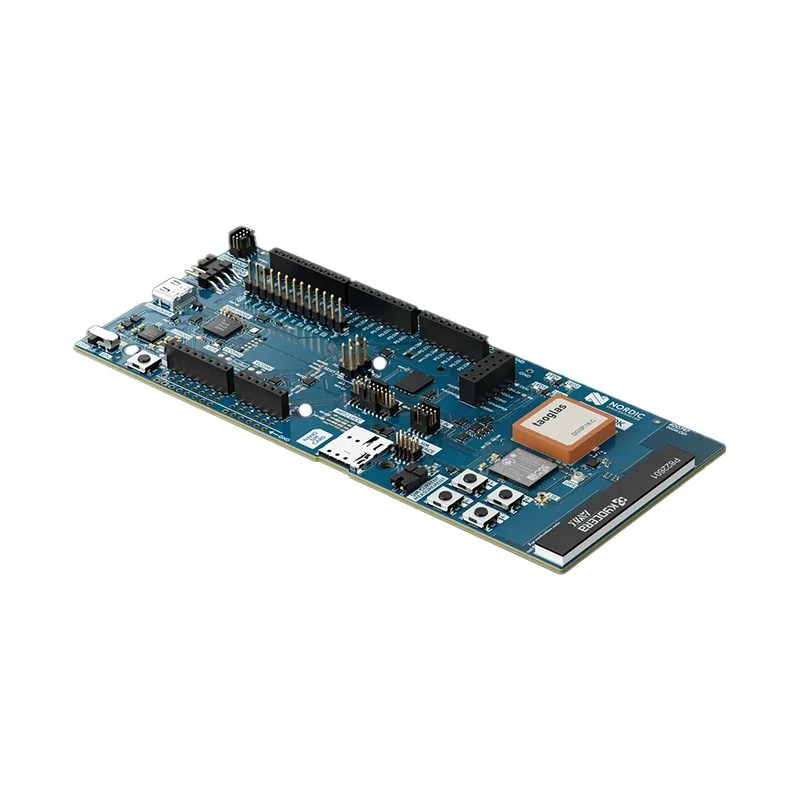

Nordic Semiconductor Semiconductor nRF9151-DK LTE-M/NB-IoT GNSS DECT NR+ DevKit - Image 2

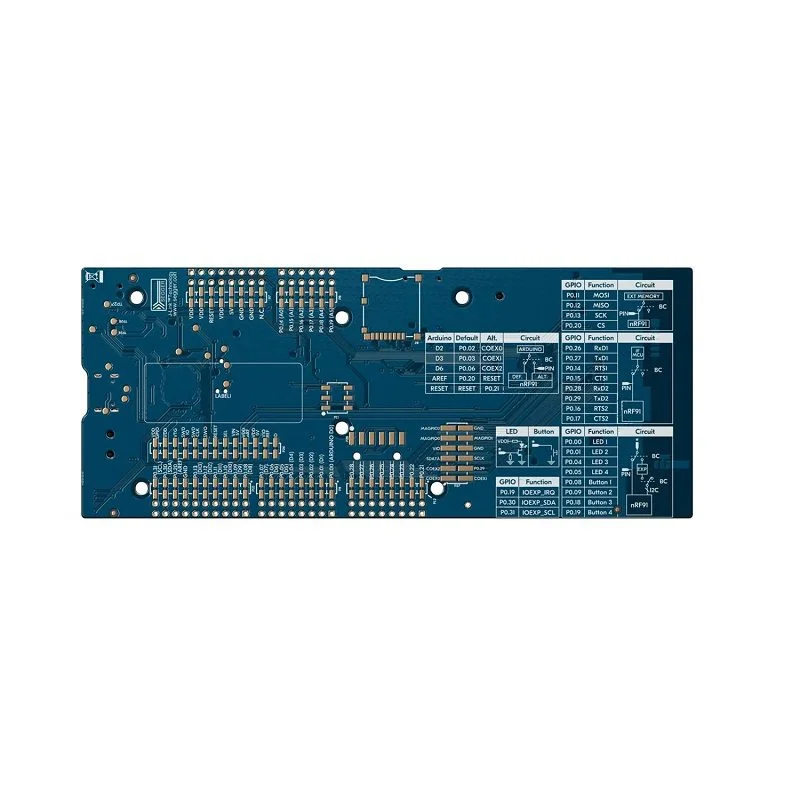

Nordic Semiconductor Semiconductor nRF9151-DK LTE-M/NB-IoT GNSS DECT NR+ DevKit - Image 3
SKU: IOWC-1057
📋 GST Invoice Available

Nordic Semiconductor Semiconductor nRF9151-DK LTE-M/NB-IoT GNSS DECT NR+ DevKit

₹13,919.00 (Inclusive of all taxes)
Out of Stock

The Nordic Semiconductor nRF9151-DK is a pre-certified development kit for the nRF9151 SiP, featuring global LTE-M/NB-IoT, GNSS, and DECT NR+ connectivity. It provides an Arduino Uno form factor, an integrated Segger Segger debugger, and is powered via USB for rapid prototyping and firmware development with nRF Connect SDK.

Features

  • Global Cellular & GNSS: Integrated antennas for worldwide LTE-M/NB-IoT (B1-B5, B8, B12-B13, B17-B20, B25-B26, B28, B65-B66, B85) and GNSS, plus DECT NR+ support for private networks.
  • Arduino-Compatible Form Factor: Arduino Uno Rev3 pinout enables seamless integration with a vast ecosystem of shields and peripheral boards for rapid prototyping.
  • On-Board Debugger & SIM Support: Features a Segger Segger OB debugger for programming and includes both nano/4FF SIM slot and MFF2 footprint for flexible (e)SIM integration.
  • Developer-Ready Interface: Equipped with 4 user-programmable LEDs and buttons, plus accessible GPIOs and SWF RF connectors for signal measurement and external antenna use.

Out of stock

Description

The nRF9151-DK is a comprehensive single-board development kit designed for evaluating and building applications on Nordic Semiconductor’s nRF9151 System-in-Package (SiP). It consolidates LTE-M, NB-IoT, GNSS, and DECT NR+ wireless technologies into a single, pre-certified platform with global band support, simplifying the development of low-power, wide-area IoT solutions.

Powered by a 64 MHz Arm Cortex-M33 processor with 256 kB RAM and 1 MB Flash, the kit provides substantial processing headroom for embedded applications. Its integrated Segger Segger on-board debugger facilitates seamless firmware flashing and real-time debugging via USB, which also supplies power. The kit comes pre-loaded with the Serial LTE Modem application for AT command control and is fully supported by the nRF Connect SDK and development tools.

Key Features

  • Pre-certified development platform for the nRF9151 SiP with global LTE-M/NB-IoT and GNSS coverage.
  • Integrated patch antennas for cellular and GNSS, with SWF connectors for external antenna attachment and RF performance testing.
  • Arduino Uno Rev3 compatible footprint for easy expansion with sensor shields and add-on boards.
  • On-board Segger Segger OB debugger with debug-out capability for programming both the kit and external MCU targets.
  • Dual SIM support via nano/4FF slot and MFF2 footprint, compatible with plug-in SIMs, soldered eSIMs, and Software SIM for lower power.
  • Comprehensive I/O access through edge connectors, including all GPIOs, interfaces, and a UART virtual COM port.
  • Developer-friendly interface with four programmable LEDs and buttons for user input/output during application testing.
  • Supported by Nordic Semiconductor's full software suite including nRF Connect SDK, Desktop tools, and the Cellular IoT Fundamentals course.

Applications

  • Asset Tracking & Fleet Management
  • Smart Metering & Utility Monitoring
  • Smart City Infrastructure & Environmental Sensing
  • Smart Agriculture & Remote Sensor Networks
  • Predictive Maintenance & Industrial IoT (IIoT)
  • Portable Medical Devices & Health Monitoring
  • Industry 4.0 Automation & Logistics

Technical Specifications

Microcontroller/SoCnRF9151 SiP (64 MHz Arm Cortex-M33)
Wireless ProtocolsLTE-M, NB-IoT, GNSS, DECT NR+
Frequency RangeLTE: 700–2200 MHz, DECT NR+: 1.9 GHz
Memory256 kB RAM, 1 MB Flash
Supply Voltage5V via USB
InterfacesUSB-C, UART (VCOM), GPIO, Arduino Headers, SWF RF Connectors
Antenna ConnectorIntegrated Patch Antennas (Cellular, GNSS), SWF for External
SIM SupportNano/4FF Slot, MFF2 Footprint
Debug InterfaceSegger Segger OB with Debug-Out
User I/O4 Programmable LEDs, 4 Buttons
Form FactorArduino Uno Rev3 Compatible
DimensionsApprox. 17 cm (L) x 7 cm (W) x 3 cm (H)

Frequently Asked Questions

How do I program the nRF9151-DK and which development environment is required?

The kit is programmed using the nRF Connect SDK within VS Code or the nRF Connect for Desktop toolchain. The on-board Segger Segger OB debugger is automatically recognized when connected via USB-C. You can flash pre-built samples or develop custom firmware using the Zephyr RTOS. Initial programming and AT command testing can be done through the pre-loaded Serial LTE Modem application accessible via a serial terminal.

What SIM card types are supported and how is cellular connectivity configured?

The board supports both plug-in nano-SIM (4FF) cards via the slot and soldered MFF2 eSIMs. It includes SIM cards from Onomondo and Wireless Logic with free data. For configuration, use AT commands over the VCOM UART interface (e.g., AT+CFUN, AT+COPS) to activate the network. The kit also supports Software SIM, which can reduce power consumption by eliminating physical SIM circuitry.

Can I use external antennas with the nRF9151-DK, and what connectors are provided?

Yes, the board includes SWF coaxial RF connectors for both the cellular and GNSS RF paths, allowing you to attach external antennas for range testing or improved signal reception. The integrated PCB patch antennas are active by default but can be bypassed via software configuration or hardware jumpers to route the signal to the external connectors for performance measurement.

What is the power supply requirement and typical operating current for the devkit?

The nRF9151-DK is powered via the USB-C port, which supplies 5V. The operating current varies significantly based on the cellular network state (PSM, eDRX). During active LTE-M transmission, peak currents can reach several hundred milliamps, while deep sleep modes with Software SIM can draw microamps. For accurate power profiling, use the onboard current measurement circuitry accessible via the provided pins.

Package Includes

  • 1x Nordic Semiconductor Semiconductor nRF9151-DK RF Development Kit

Additional Information

Weight 0.084 kg
Dimensions 17 × 7 × 3 cm
