Arduino Uno Kit AKX00037 with Audio Synth

₹5,669.00 (Inclusive of all taxes)
Out of Stock

The Arduino Uno Kit AKX00037 provides a hands-on experience for assembling an Official Arduino UNO board and an audio synthesizer shield, making it ideal for learning electronics and soldering skills. This comprehensive kit is compatible with standard Arduino shields once assembled.

Features

  • Assemble your own Official Arduino UNO R3 compatible board from individual components.
  • Learn fundamental soldering techniques with all necessary parts included.
  • Includes an audio synthesizer shield for creative sound generation projects.
  • Comes with a dedicated online content platform for detailed assembly and programming instructions.
  • Fully compatible with existing Arduino shields and ecosystems once constructed.

Out of stock

Description

The Official Arduino Make Your UNO Kit AKX00037 offers a unique and educational journey into electronics, combining hardware assembly with creative application. This kit guides users through the process of manually soldering every component onto a blank PCB to construct a fully functional Arduino UNO, fostering a deep understanding of the board’s architecture and operation.

Beyond basic assembly, the kit includes an audio synthesizer shield, transforming the assembled UNO into a musical instrument. This provides an engaging way to apply programming knowledge and explore digital sound generation. With comprehensive instructions available through a dedicated online platform, including video tutorials and interactive 3D guides, users can confidently navigate the assembly process and learn to program their newly built Arduino board.

Key Features

  • DIY assembly kit for building an Official Arduino UNO R3 compatible board.
  • Includes all discrete components required for PCB soldering practice.
  • Comes with an additional Audio Synthesizer PCB and components for creative projects.
  • Dedicated online content platform with video tutorials and 3D interactive viewer for assembly.
  • Features the ATmega328P microcontroller, maintaining compatibility with standard Arduino UNO projects.
  • USB C Serial Adapter Board included for programming the assembled UNO.
  • Educational focus on hands-on electronics, soldering, and embedded programming.
  • Assembled board is compatible with a wide range of official and third-party Arduino shields.

Applications

  • Electronics education and skill development in soldering.
  • Embedded systems learning and microcontroller programming.
  • DIY audio synthesis and sound experimentation.
  • Prototyping and development with the Arduino platform.
  • Educational projects in STEM fields.

Technical Specifications

Item TypeKit
Model No. / NameAKX00037
MicrocontrollerATmega 328p
Crystal Frequency16 MHz
Connector Headers6-pin standard
Power InputBarrel Jack (for assembled Uno)
Programming InterfaceUSB-C (via included adapter)

Frequently Asked Questions

What microcontroller is used in the Arduino Make Your UNO Kit?

The kit includes an ATmega328P microcontroller, which is the same core processor found in the standard Arduino Uno R3. This ensures full compatibility with existing Arduino Uno tutorials, libraries, and projects once the board is successfully assembled and programmed.

Is this kit suitable for beginners with no prior soldering experience?

Yes, this kit is specifically designed for beginners. It comes with a comprehensive instruction manual, video material, and 3D interactive viewer through a dedicated online platform. These resources guide you step-by-step through the soldering process, making it an excellent learning tool.

What is the purpose of the included USB C Serial Adapter Board?

The USB C Serial Adapter Board is essential for programming your assembled Arduino UNO. After you've soldered all components, you'll connect this adapter to your computer via USB-C and to the Uno's programming pins to upload sketches using the Arduino IDE, enabling functionality.

What kind of projects can I create with the audio synthesizer shield?

The audio synthesizer shield allows you to create various digital sound experiments. You can program the Arduino to generate different waveforms, create basic melodies, or experiment with sound effects. It's an excellent way to explore audio output and interactive sound design with your newly built Arduino board.

What software environment is recommended for programming the assembled Arduino Uno?

The recommended software environment for programming the assembled Arduino Uno is the official Arduino IDE (Integrated Development Environment). It provides a user-friendly interface for writing, compiling, and uploading sketches to the ATmega328P microcontroller via the USB C Serial Adapter.

Package Includes

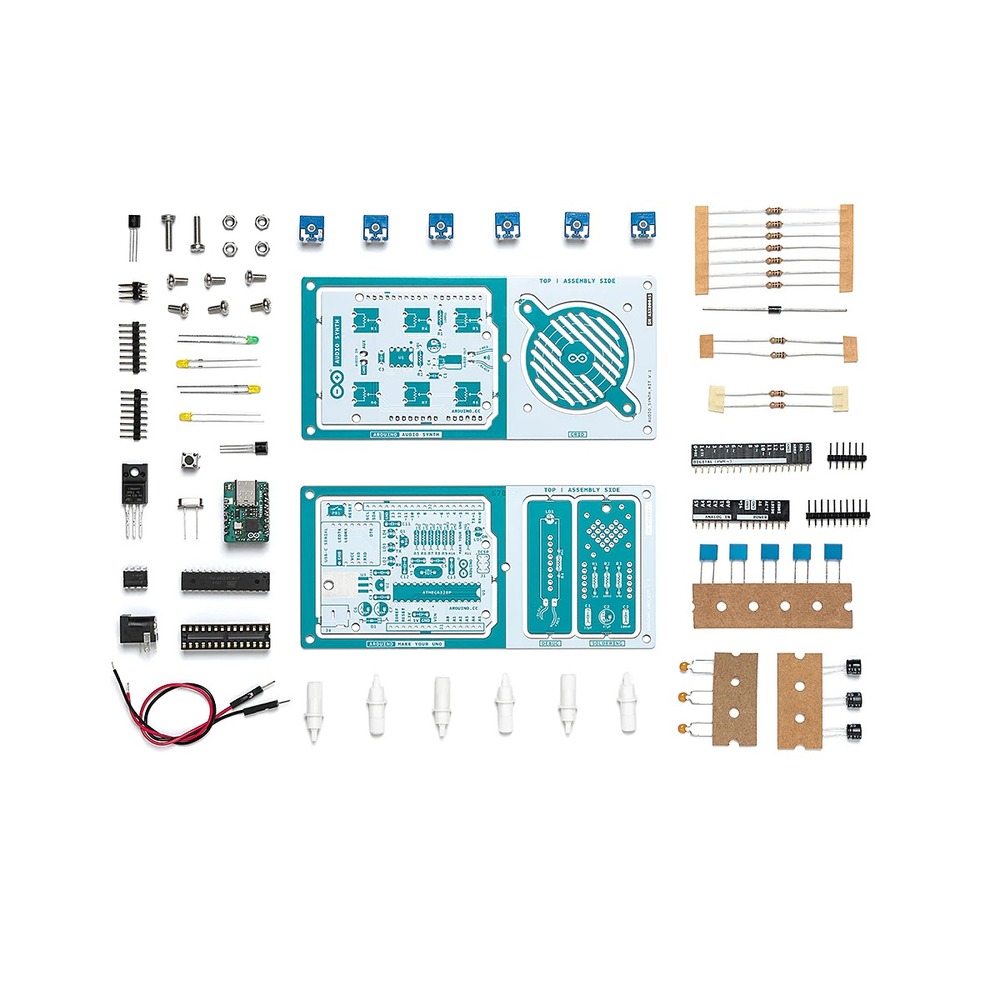

  • 1 x Make Your UNO PCB
  • 1 x USB C Serial Adapter Board
  • 7 x Resistors 1k Ohm
  • 2 x Resistors 10k Ohm
  • 2 x Resistors 1M Ohm
  • 1 x Diode (1N4007)
  • 1 x 16MHz Crystal
  • 4 x Yellow LEDs
  • 1 x Green LED
  • 1 x Push-Button
  • 1 x MOSFET
  • 1 x LDO (3.3V)
  • 1 x LDO (5V)
  • 3 x Ceramic capacitors (22pF)
  • 3 x Electrolytic capacitors (47uF)
  • 7 x Polyester capacitors (100nF)
  • 1 x Socket for ATMega 328p
  • 2 x I/O Connectors
  • 1 x Connector header 6 pins
  • 1 x Barrel jack connector
  • 1 x ATmega 328p Microcontroller
  • 1 x Audio Synth PCB
  • 1 x Resistor 100k Ohm (Audio Synth)
  • 1 x Resistor 10 Ohm (Audio Synth)
  • 1 x Audio amplifier (LM386)
  • 1 x Ceramic capacitors (47nF) (Audio Synth)
  • 1 x Electrolytic capacitors (47uF) (Audio Synth)
  • 1 x Electrolytic capacitors (220uF) (Audio Synth)
  • 1 x Polyester capacitor (100nF) (Audio Synth)
  • 4 x connectors pin header (Audio Synth)
  • 6 x potentiometer 10k Ohm with plastic knobs (Audio Synth)
  • Spare parts: 2 x Electrolytic capacitors (47uF), 2 x Polyester capacitor (100nF), 2 x Ceramic capacitors (22pF), 1 x Push-Button, 1 x Yellow LEDs, 1 x Green LED
  • Mechanical parts: 5 x Spacers 12mm, 11 x Spacers 6mm, 5 x screw nuts, 2 x screws 12mm

Additional Information

Weight 0.211 kg
Dimensions 16 × 8 × 3 cm
