Nordic Semiconductor nRF52840 BLE Module with Ceramic Antenna

Name: Nordic Semiconductor nRF52840 BLE Module with Ceramic Antenna
Brand: Nordic Semiconductor
SKU: IOWC-0171
Price: 1449.00 INR
Availability: OutOfStock

₹1,449.00 (Inclusive of all taxes)

Out of Stock

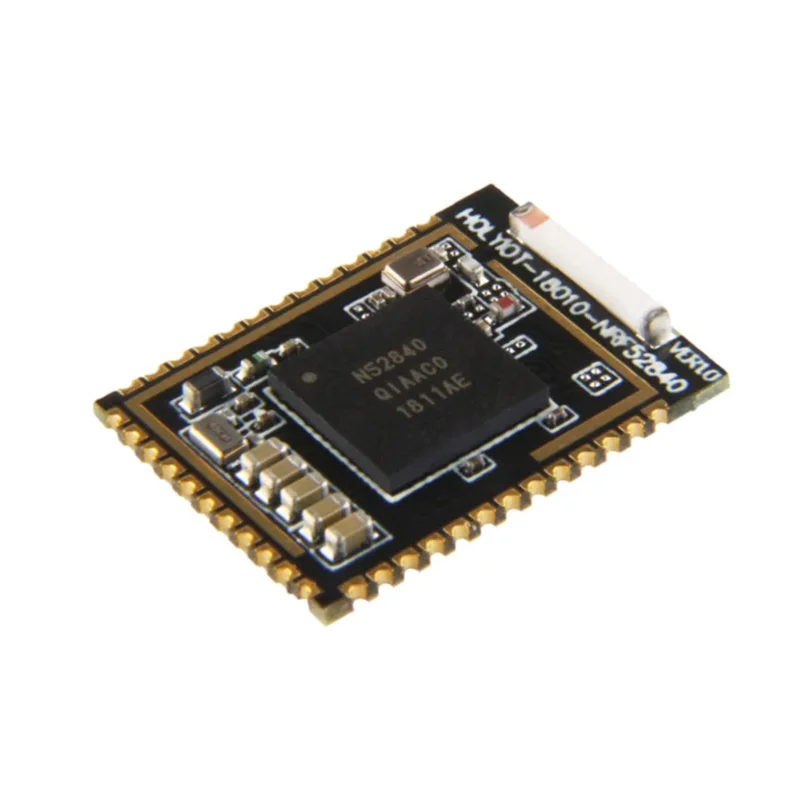

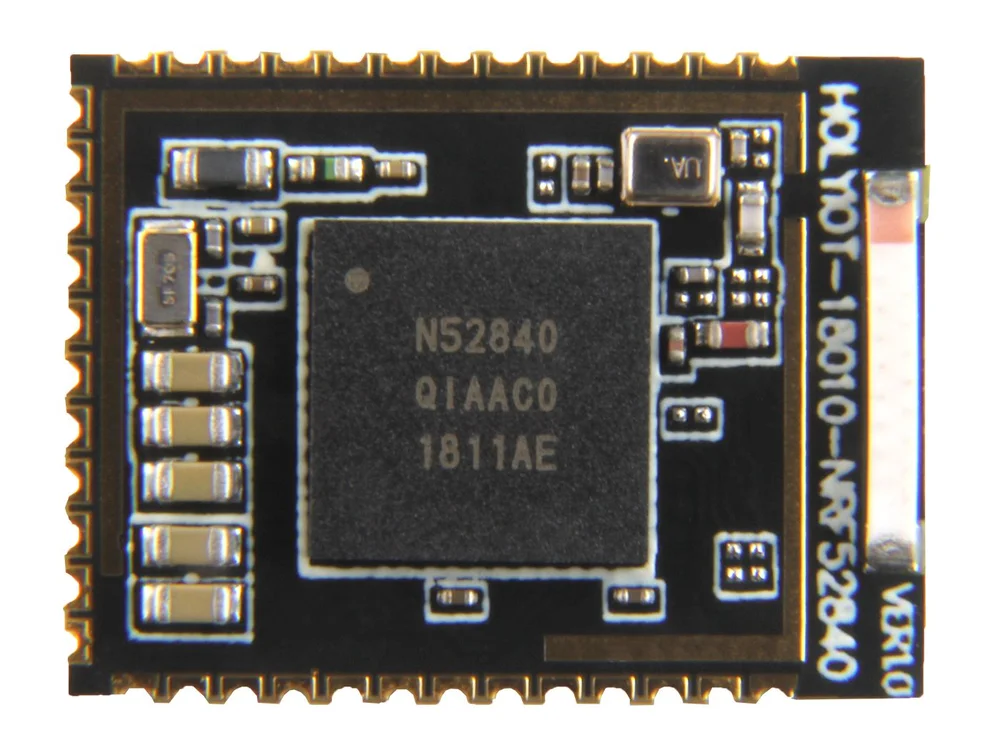

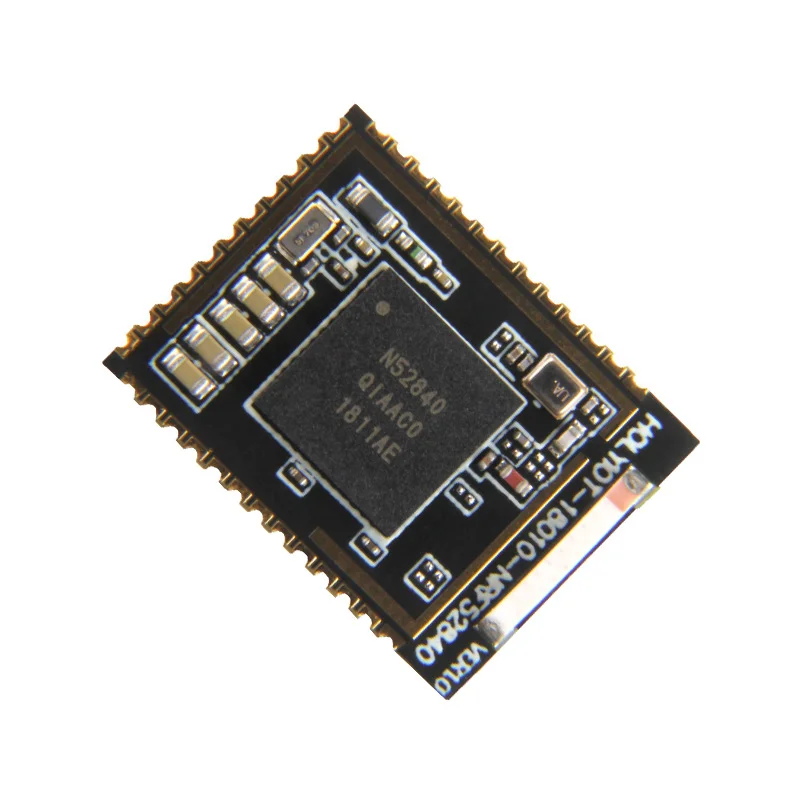

This Nordic Semiconductor nRF52840 BLE module integrates a powerful ARM Cortex-M4F MCU and Bluetooth 5.0 radio with a ceramic antenna, designed for ultra-low-power IoT sensor nodes, wearables, and smart home devices.

Features

Bluetooth 5.0 certified module with integrated ceramic antenna for compact designs and up to 500m range.
Powered by Nordic Semiconductor’s nRF52840 SoC featuring a 64MHz ARM Cortex-M4F CPU with FPU, 1MB Flash, and 256KB RAM.
Ultra-low power operation with a wide supply voltage range from 1.7V to 5.5V, ideal for battery-powered applications.
Integrated ARM CryptoCell-310 provides hardware-accelerated AES-128 encryption for secure IoT communications.
Rich peripheral set includes USB, NFC, Quad-SPI (QSPI), and high-speed SPI interfaces for system expansion.

Out of stock

Get Notified When Available

Description

The nRF52840 BLE module is a complete, certified wireless solution built around Nordic Semiconductor Semiconductor’s flagship system-on-chip. It combines a high-performance 32-bit ARM Cortex-M4F processor with a multiprotocol radio supporting Bluetooth 5’s long-range and high-throughput features. The integrated ceramic antenna eliminates the need for external antenna matching, simplifying PCB layout and reducing the bill of materials for space-constrained designs.

Engineered for power efficiency, the module operates from a wide 1.7V to 5.5V supply, making it compatible with various battery chemistries, including single-cell Li-Po. Its advanced power management subsystem enables deep sleep currents critical for extending product battery life in always-sensing applications. The module’s RF front-end is optimized for reliable connectivity, with programmable output power from +8 dBm to -20 dBm for optimal range versus power consumption trade-offs.

Key Features

Bluetooth 5.0 Long Range (Coded PHY) and 2x data speed (2Mbps PHY) support.
High-performance ARM Cortex-M4F microcontroller with floating-point unit (FPU) for complex application logic.
Hardware-accelerated cryptographic security with ARM CryptoCell-310 for AES-128/256, SHA-256, and ECC.
Integrated ceramic chip antenna provides a compact, turnkey RF solution without external components.
Multiprotocol radio capable of concurrent Bluetooth 5/Bluetooth Mesh, Thread, Zigbee, and proprietary 2.4GHz protocols.
Comprehensive peripheral suite including full-speed USB, NFC-A tag, QSPI for external memory, and Programmable Peripheral Interconnect (PPI).
On-air compatibility with legacy nRF51, nRF24L, and nRF24AP series for easy product migration.

Applications

Smart home sensors and automation devices (motion, environment, door/window).
Wearable technology including fitness bands, smartwatches, and health monitors.
HID devices like wireless keyboards, mice, and game controllers.
Asset tracking and indoor positioning beacons utilizing high-precision RSSI.
Industrial IoT sensor networks and building automation systems.
Voice-command remote controls and connected consumer electronics.

Technical Specifications

Wireless SoC / MCU	Nordic Semiconductor nRF52840 (QIAAC0 Rev 1)
Core Processor	32-bit ARM Cortex-M4F @ 64 MHz with FPU
Wireless Protocol	Bluetooth 5.0 Low Energy (BLE)
Memory	1 MB Flash, 256 KB RAM
RF Output Power	Programmable +8 dBm to -20 dBm
Antenna Type	Integrated Ceramic Chip Antenna
Supply Voltage	1.7 V to 5.5 V DC
Security	ARM CryptoCell-310 Cryptographic Accelerator
Key Interfaces	USB, NFC, QSPI, SPI, GPIO, PPI
Dimensions (L x W)	18.3 mm x 14.0 mm
Weight	10 g

Frequently Asked Questions

How do I power and program the nRF52840 BLE module?

The module operates from a wide 1.7V to 5.5V DC supply, connect VDD and GND accordingly. Programming is typically done via the SWD (Serial Wire Debug) interface using a compatible Segger or Segger debugger. You can develop firmware using Nordic Semiconductor's nRF Connect SDK, Zephyr RTOS, or the Arduino Core for nRF52. The module does not include a USB-to-serial chip; an external debug probe is required for flashing and serial communication.

What is the typical range achievable with the integrated ceramic antenna?

With Bluetooth 5.0's long-range mode (Coded PHY) and the module's +8 dBm maximum output power, a line-of-sight range of up to 500 meters is possible under ideal conditions. For standard 1Mbps BLE, expect a more typical range of 50-100 meters in open air. Range is highly dependent on the surrounding environment, PCB layout ground plane, and potential RF interference from other 2.4GHz devices.

Can I use an external antenna with this module instead of the ceramic one?

No, this specific variant has the RF output permanently matched to its integrated ceramic chip antenna. The PCB trace and matching network are designed exclusively for that antenna. If you require an external antenna connector (like IPEX or PCB trace), you must select a different nRF52840 module variant that exposes the RF pin and includes the appropriate matching circuit for external antenna connection.

What development tools and software are needed to start prototyping?

You will need a SWD debugger (e.g., Nordic Semiconductor's nRF52840 DK, Segger EDU). Install Nordic Semiconductor's nRF Connect for Desktop, which includes the nRF Connect SDK (based on Zephyr RTOS), programmer tools, and Bluetooth stacks. Alternatively, use the Arduino IDE with the Arduino-nRF52 core for simpler sketches. Review the module's pinout diagram to connect GPIOs, SPI, I2C, or other peripherals to your sensors and external components.
