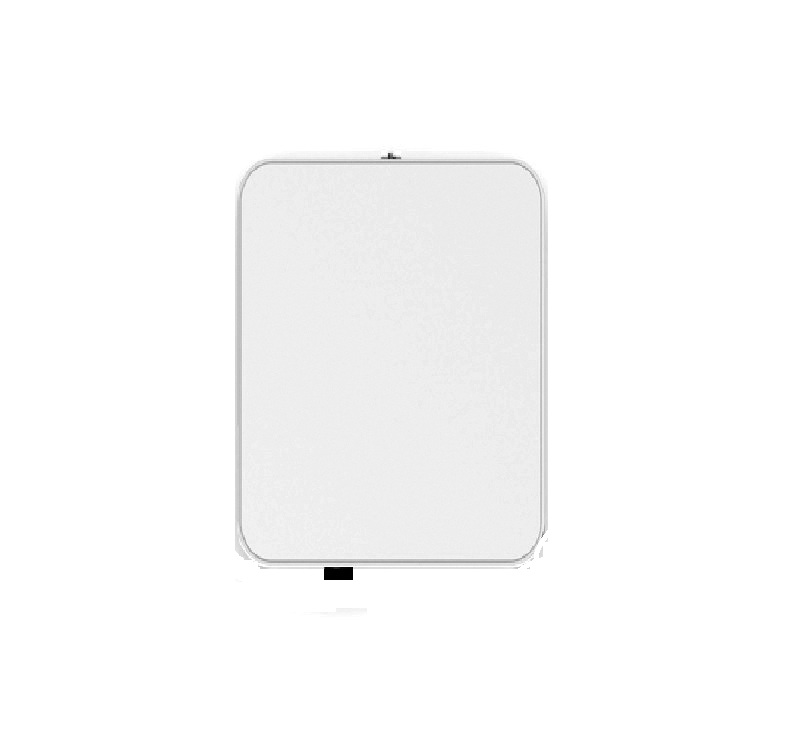

NanoRadar TCM873 80GHz MMW Traffic Flow Radar Module - 500m Range, IP67

Name: NanoRadar TCM873 80GHz MMW Traffic Flow Radar Module - 500m Range, IP67
Brand: NanoRadar
SKU: SENS-2480
Price: 74299.00 INR
Availability: OutOfStock

₹74,299.00 (Inclusive of all taxes)

Out of Stock

The NanoRadar TCM873 is an 80GHz millimeter-wave traffic flow radar module designed for high-precision, all-weather vehicle and pedestrian detection up to 500 meters. It provides multi-target tracking and traffic statistics for integration into ITS, smart city, and traffic management systems.

Features

80GHz MMW radar with a stable detection range up to 500 meters and an 80° wide beam.
Tracks up to 512 targets simultaneously, providing ID, distance, speed, azimuth, and status.
Outputs comprehensive traffic statistics including vehicle spacing, occupancy, queue length, and congestion with up to 95% accuracy.
IP67-rated weatherproof housing for reliable 24/7 operation in rain, snow, fog, and dust.
Software-defined operation supports intersection, road section, and high-speed monitoring modes.

Out of stock

Get Notified When Available

Description

The TCM873 leverages 80GHz millimeter-wave radar technology to deliver precise, long-range detection and tracking of vehicles, non-motorized vehicles, and pedestrians. Its advanced signal processing enables stable performance in complex environments, filtering out interference for high-accuracy traffic flow data.

Engineered for continuous outdoor operation, the module features a robust IP67 enclosure and operates across a wide temperature range. It supports GPS/PTP timing for data synchronization and offers configurable sensitivity levels to minimize false alarms, making it ideal for critical infrastructure monitoring.

Key Features

High-frequency 80GHz MMW radar ensures precise velocity and position measurement.
Wide 80° beam coverage enables monitoring of up to 10 traffic lanes.
Advanced multi-target tracking algorithm manages 512 concurrent targets.
IP67 protection ensures dust-tight and waterproof operation in harsh weather.
Software-defined architecture allows flexible adaptation to intersection, road section, and high-speed scenarios.
Supports radar-vision data fusion with spatio-temporal synchronization capabilities.
Configurable sensitivity and anti-interference frequency design reduce false alarm rates.
Low power consumption of 8W for efficient 24/7 system integration.

Applications

Highway and freeway traffic monitoring and incident detection systems.
Smart city intersection signal control and adaptive traffic management.
Urban traffic flow analysis for congestion pricing and queue length measurement.
Pedestrian and vehicle safety monitoring at complex intersections.
All-weather traffic data collection for transportation planning and ITS.

Technical Specifications

Model Number	TCM873
Sensor Type	80GHz Millimeter-Wave (MMW) Radar
Maximum Detection Range	500 m
Beam Width	80°
Maximum Tracked Targets	512
Traffic Statistics Accuracy	Up to 95% (flat peak flow)
Output Data	Target ID, Distance, Speed, Azimuth, Status, Vehicle Spacing, Occupancy, Queue Length, Congestion
Operating Modes	Intersection, Road Section, High-Speed
Ingress Protection	IP67
Maximum Operating Voltage	32 V DC
Power Consumption	8 W
Timing Support	GPS, PTP

Frequently Asked Questions

What is the maximum detection range and accuracy of the TCM873 radar?

The TCM873 provides stable detection and tracking up to 500 meters. For traffic statistics, it achieves up to 95% accuracy for flat peak flow conditions and 90% accuracy for congestion flow analysis, delivering reliable data for traffic management systems.

How many targets can this radar track simultaneously, and what data does it output?

This module can track up to 512 targets concurrently. For each target, it outputs real-time data including a unique ID, distance, speed, azimuth angle, and status. It also processes aggregate traffic statistics like vehicle spacing, lane occupancy, queue length, and congestion levels.

Is this radar suitable for outdoor installation in harsh weather conditions?

Yes, the TCM873 is built for continuous outdoor use. Its IP67 rating ensures it is dust-tight and protected against temporary immersion, allowing reliable 24/7 operation in rain, snow, fog, and dusty environments common to traffic infrastructure.

What power supply does the TCM873 require, and how is data communicated?

The module operates on a maximum voltage of 32V DC with a typical power consumption of 8W. Data communication is handled via the provided connector cable, supporting standard serial protocols for integration with traffic controllers and central management systems.

Can the radar's operating mode be changed for different traffic scenarios?

Yes, the TCM873 features a software-defined architecture. It can be configured for three primary modes: intersection monitoring, road section analysis, and high-speed traffic detection, allowing flexible adaptation to specific application requirements.
