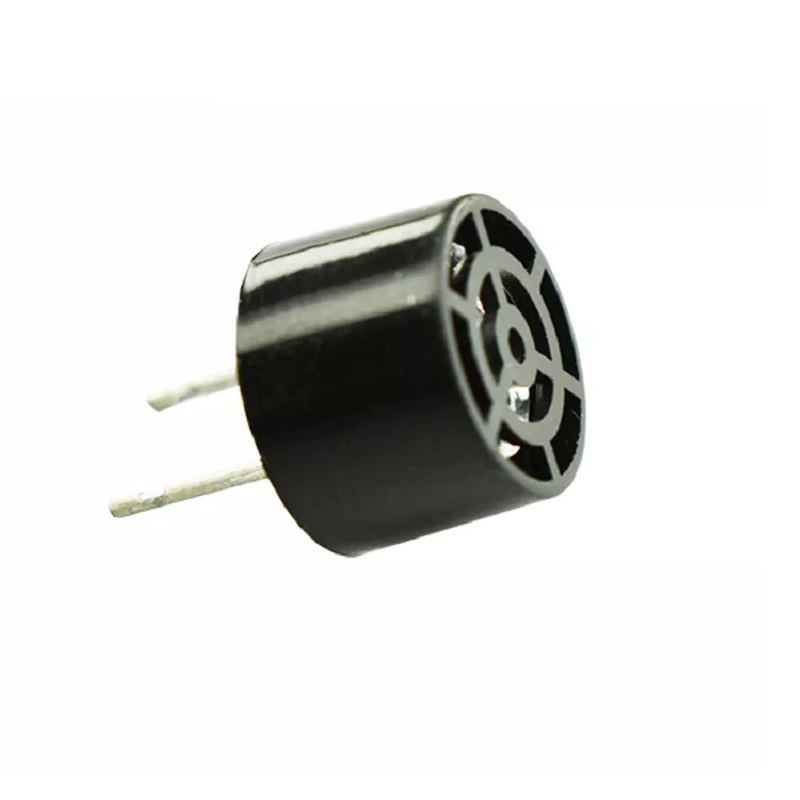

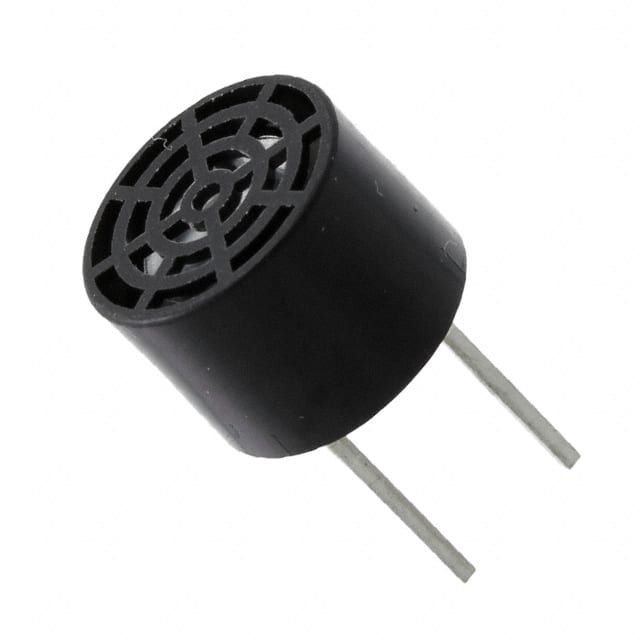

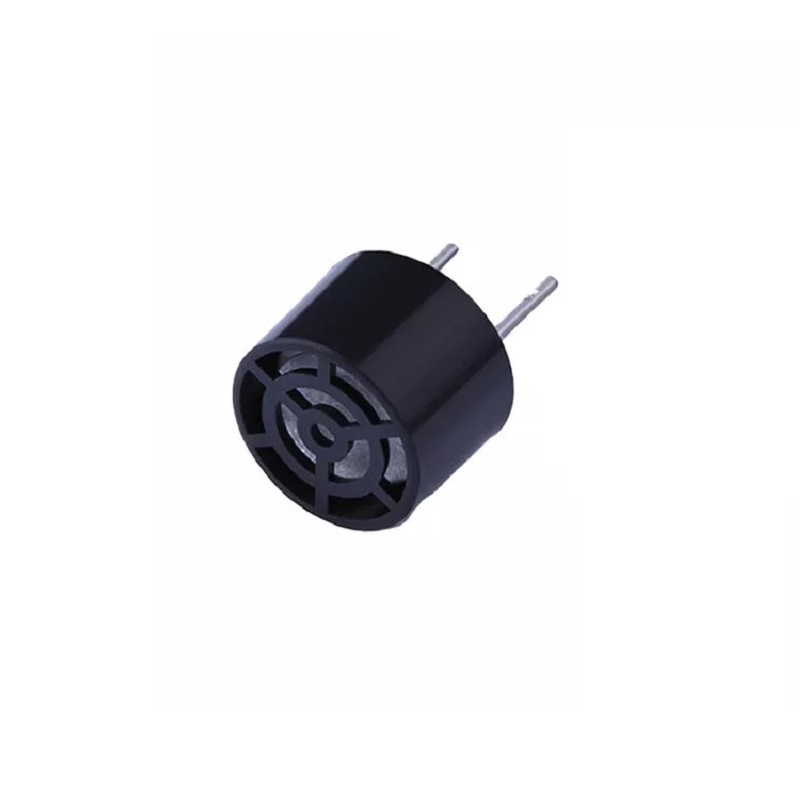

Multicomp Pro MCUSD16P40B12RO 16mm 40kHz Ultrasonic Transceiver -74dB Sensitivity, Plastic Housing

The datasheet specifies performance at 10V RMS sine wave for the sound pressure level rating. Typical driving circuits for 40kHz transceivers use pulsed signals between 5V and 12V peak-to-peak. You must design an external driver circuit (e.g., using a MOSFET or dedicated driver IC) to generate the required AC excitation voltage for the piezoelectric element.

This is a raw piezoelectric transducer, not a complete module with logic. You need separate transmit and receive circuits. For transmission, use a microcontroller pin with a driver circuit to generate a 40kHz burst. For reception, the transducer's output is a low-voltage AC signal that must be amplified, filtered, and processed (often with a comparator) to detect echoes for timing-based distance calculation.

While not explicitly stated in the provided specs, a 16mm diameter, 40kHz ultrasonic transducer typically has a moderate beam angle. For precise beam pattern information, including directivity and side lobes, you should consult the official Multicomp Pro datasheet for the MCUSD16P40B12RO model, as these characteristics are critical for application design.

The sensor's plastic housing and operating temperature range (-30°C to +85°C) allow for use in varied conditions. However, the open structure is not sealed (no IP rating specified), making it susceptible to dust and moisture ingress. For permanent outdoor installation, consider adding a protective acoustic mesh or housing while ensuring it doesn't attenuate the 40kHz signal.
