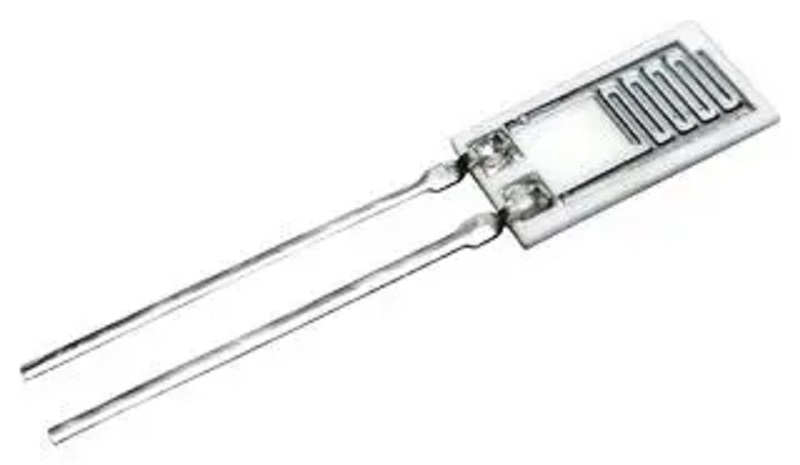

Multicomp Pro Humidity Sensor, 20% to 90% RH, 5% Accuracy, 1V, Through Hole

Name: Multicomp Pro Humidity Sensor, 20% to 90% RH, 5% Accuracy, 1V, Through Hole
Brand: Multicomp Pro
SKU: SENS-1023
Price: 249.00 INR
Availability: OutOfStock

₹249.00 (Inclusive of all taxes)

Out of Stock

The Multicomp Pro Humidity Sensor is a through-hole component designed for environmental relative humidity (RH) monitoring from 20% to 90% RH with ±5% accuracy. Operating from a 1V supply, it is suitable for integration into PCBs for climate control systems, data loggers, and various electronic measurement devices.

Features

Measures relative humidity (RH) from 20% to 90%.
±5% accuracy for reliable environmental monitoring.
Operates from a 1V DC supply voltage.
Through-hole mounting for robust PCB integration.
Wide operating temperature range of 0°C to 60°C.

Out of stock

Get Notified When Available

Description

This humidity sensor utilizes a capacitive sensing element to detect changes in environmental relative humidity. The through-hole design ensures secure mechanical and electrical connections on printed circuit boards, making it suitable for permanent installations in end products.

The sensor is engineered for stability across its specified temperature range, providing a conditioned output signal proportional to the measured humidity level. Its construction offers resistance to shock, vibration, and soldering heat, ensuring reliability during assembly and throughout its operational life in applications like HVAC controls and environmental monitoring systems.

Key Features

Capacitive humidity sensing element for stable, long-term performance.
Through-hole PCB mounting for durable mechanical and electrical connection.
Designed with shock and vibration resistance for robust operation.
Withstands standard soldering temperatures during assembly.
Optimized for integration into compact electronic devices and control systems.

Applications

Integration into HVAC system controllers for air conditioners and dehumidifiers.
Environmental monitoring within data loggers, hygrometers, and transmitters.
Humidity control in industrial process equipment and storage facilities.
Consumer appliance integration for smart humidifiers and climate control devices.

Technical Specifications

Model / Type	Humidity Sensor
Humidity Range	20% to 90% Relative Humidity (RH)
Accuracy	±5%
Supply Voltage	1V DC
Sensor Mounting	Through Hole
Operating Temperature	0°C to 60°C
Shipping Weight	0.01 kg
Shipping Dimensions	7 cm × 9 cm × 1 cm

Frequently Asked Questions

What is the operating voltage for this humidity sensor?

This Multicomp Pro humidity sensor is designed to operate from a 1V DC supply. It is critical to adhere to this voltage specification to ensure accurate readings and prevent damage to the sensing element. Exceeding the maximum supply voltage can degrade sensor performance and longevity.

How do I interface with this through-hole humidity sensor?

The sensor features through-hole pins for direct soldering onto a printed circuit board (PCB). The output signal is typically an analog voltage or a conditioned signal proportional to the measured relative humidity. Consult the specific datasheet for the pinout diagram and recommended interface circuitry, such as signal conditioning or ADC input connections.

What is the accuracy and measurement range of this sensor?

This sensor measures relative humidity (RH) within a range of 20% to 90% RH. Its specified accuracy is ±5% across this operating range under defined conditions. Accuracy can be influenced by factors like temperature and supply voltage stability, so proper calibration against a reference standard is recommended for precision applications.
