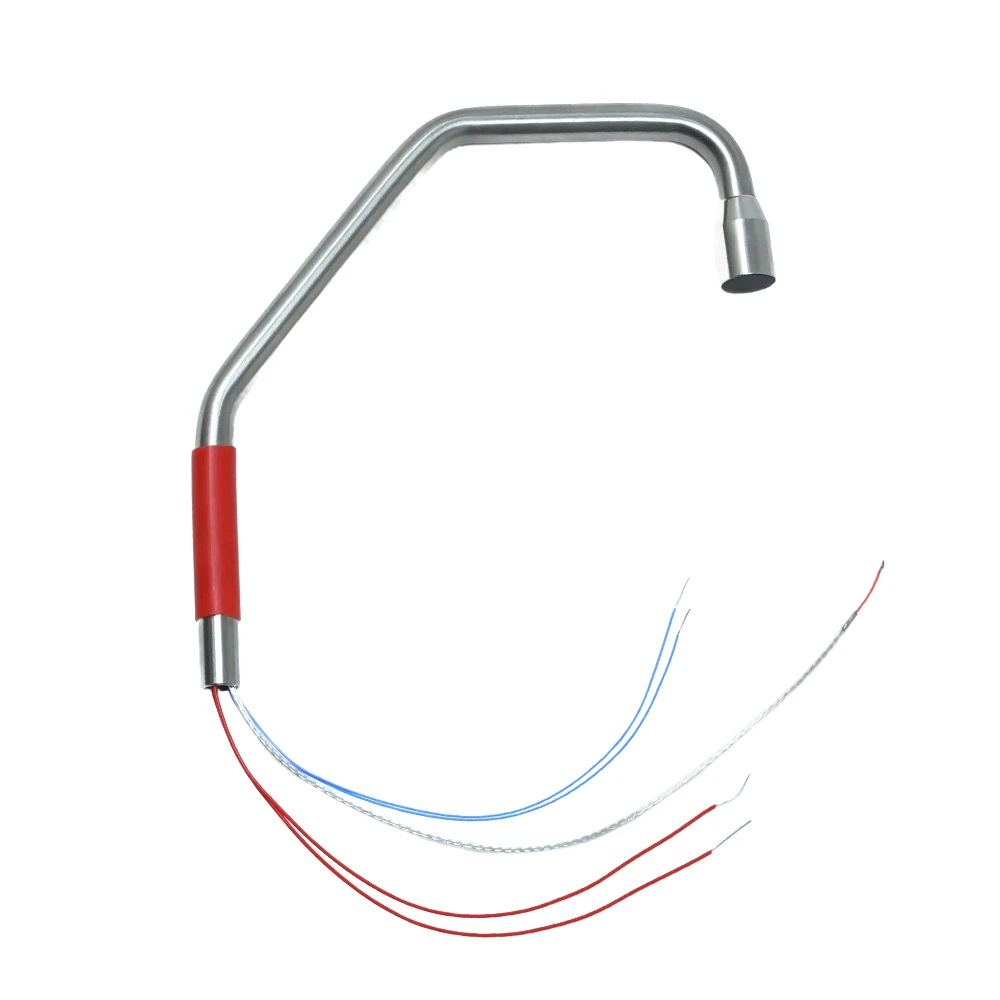

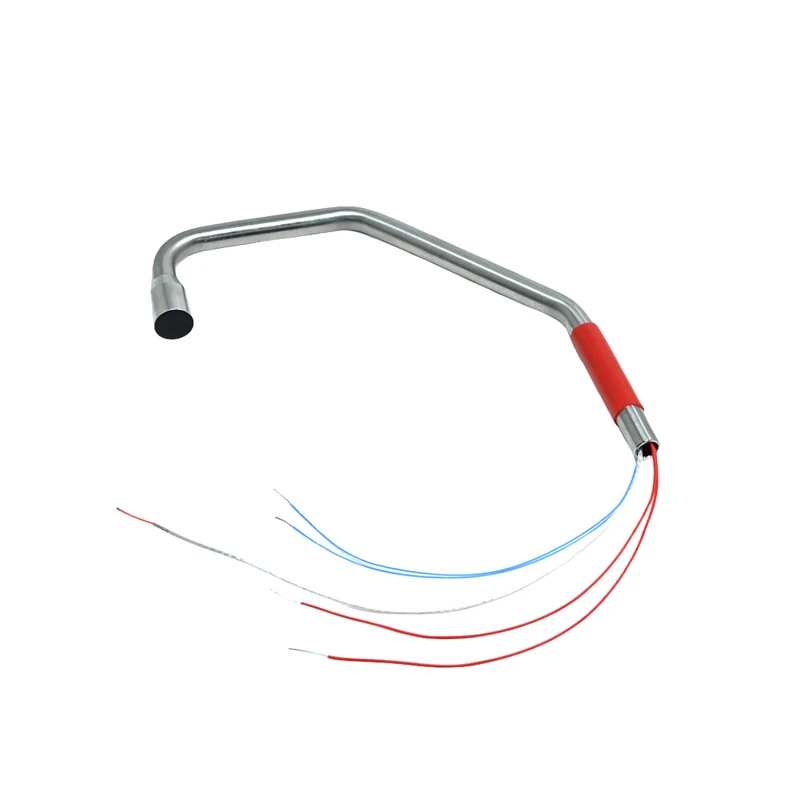

NU200E12TR-1G2 12mm 200kHz Ultrasonic Wind Speed Sensor - Stainless Steel IP68
The NU200E12TR-1G2 is a 200 kHz ultrasonic transducer designed for precise wind speed and airflow measurement. Featuring a robust stainless steel housing with IP68 protection, it is suitable for integration into weather stations, HVAC systems, and industrial monitoring applications requiring reliable acoustic sensing.
Features
- 200 kHz nominal operating frequency (±4%) for high-resolution acoustic sensing
- Stainless steel housing with IP68 protection for harsh outdoor and industrial environments
- High echo sensitivity (≥ -80 dB) ensures reliable signal detection over a 0.1 to 1 meter range
- Wide operating temperature range from -40°C to +85°C for consistent performance
- Second-generation G2 design offers structural improvements while maintaining drop-in compatibility with the NU200E12TR-1G
Out of stock
The NU200E12TR-1G2 is a high-frequency ultrasonic transducer engineered for wind speed and airflow detection. Utilizing a combined send-and-receive structure, it operates at a stable 200 kHz center frequency, generating a focused acoustic beam with an approximate 30° beam angle. This design enables precise, non-contact measurement of air velocity and direction within a defined range.
Constructed with a durable stainless steel enclosure and sealed to IP68 standards, the sensor is built to withstand demanding environmental conditions, including moisture, dust, and temperature extremes. Its high sensitivity and optimized electrical characteristics, including a 600Ω minimum parallel resistance and 150pF static capacitance, ensure robust signal integrity for integration into sophisticated monitoring and control systems.
Additional Information
| Weight | 0.068 kg |
|---|---|
| Dimensions | 12.3 × 12.3 × 1.2 cm |
