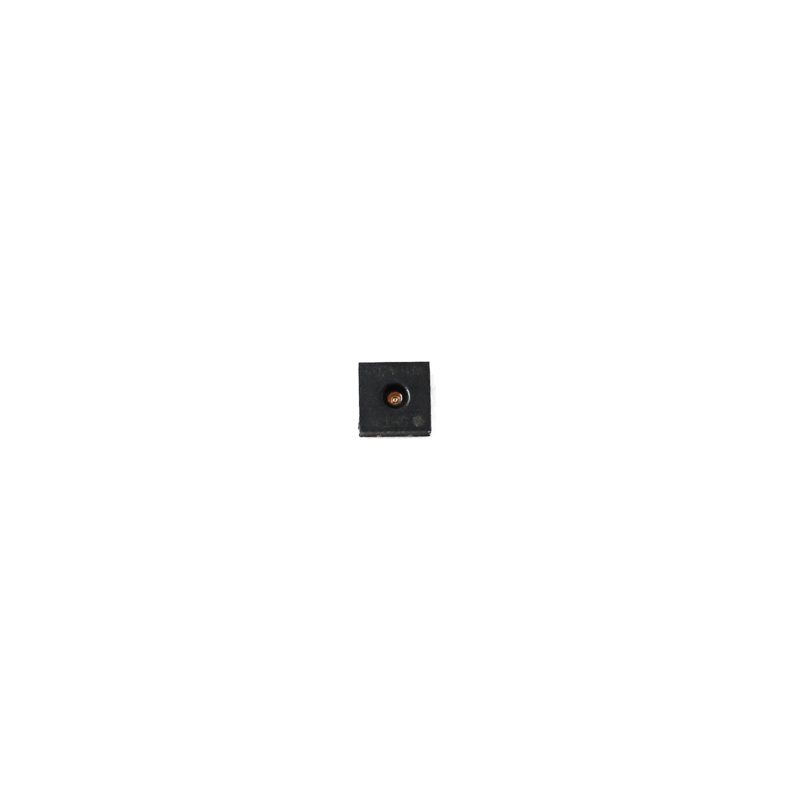

Sensirion SHT30A-DIS-B Humidity & Temperature Sensor ±3%RH, I2C, Bulk

Name: Sensirion SHT30A-DIS-B Humidity &amp; Temperature Sensor ±3%RH, I2C, Bulk
Brand: Sensirion
SKU: SENS-1009
Price: 409.00 INR
Availability: OutOfStock

₹409.00 (Inclusive of all taxes)

Out of Stock

The Sensirion SHT30A-DIS-B is an automotive-grade digital humidity and temperature sensor module featuring a calibrated I2C interface for direct integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32. It delivers high-precision environmental sensing with ±3%RH and ±0.3°C typical accuracy.

Features

High-precision digital sensor with ±3%RH and ±0.3°C typical accuracy
Automotive-grade AEC-Q100 qualification for robust performance
I2C interface with two selectable addresses and up to 1 MHz speed
Wide 2.4 V to 5.5 V supply range compatible with 3.3V and 5V logic systems
Ultra-low power consumption, down to 0.2 µA in idle mode

Out of stock

Get Notified When Available

Description

The SHT30A-DIS-B from Sensirion is a fully calibrated, digital humidity and temperature sensor based on a capacitive sensing element and a band-gap temperature sensor. It provides linearized, temperature-compensated digital outputs via a fast I2C interface, ensuring reliable data acquisition for embedded systems and industrial monitoring applications.

Engineered for demanding environments, this sensor operates across an extended temperature range of -40°C to 125°C and features excellent long-term stability. Its automotive-grade AEC-Q100 qualification guarantees performance under harsh conditions, making it suitable for automotive HVAC, industrial process control, and high-reliability environmental monitoring systems.

Key Features

Fully calibrated and temperature-compensated digital output for plug-and-play accuracy
Fast I2C interface supports communication speeds up to 1 MHz with two user-selectable addresses (0x44, 0x45)
Ultra-low power consumption: 0.2 µA in idle mode and 600–1500 µA during active measurement
Rapid response times: typically 6 seconds for humidity and greater than 2 seconds for temperature
Wide operating voltage range from 2.4 V to 5.5 V for flexible system integration
Automotive AEC-Q100 qualified for reliable operation in harsh, high-vibration environments
Excellent long-term stability and repeatability for consistent measurement performance
Compact DFN package with robust construction for space-constrained and durable applications

Applications

Automotive HVAC and cabin climate control systems
Industrial process monitoring and environmental control
Data loggers and portable weather stations
Smart home and building automation (HVAC, thermostats)
Medical devices requiring precise environmental monitoring

Technical Specifications

Manufacturer Part Number	SHT30A-DIS-B
Sensor Type	Digital Humidity & Temperature
Humidity Range	0% to 100% RH
Humidity Accuracy	±3% RH (typical)
Temperature Range	-40°C to 125°C
Temperature Accuracy	±0.3°C (typical)
Supply Voltage	2.4 V to 5.5 V DC
Communication Interface	I2C (Two addresses: 0x44, 0x45)
I2C Speed	Up to 1 MHz
Average Current (Measuring)	600–1500 µA
Idle Current	0.2 µA
Response Time (Humidity)	6 s (typical)
Response Time (Temperature)	> 2 s (typical)
Operating Temperature	-40°C to 125°C
Qualification	AEC-Q100

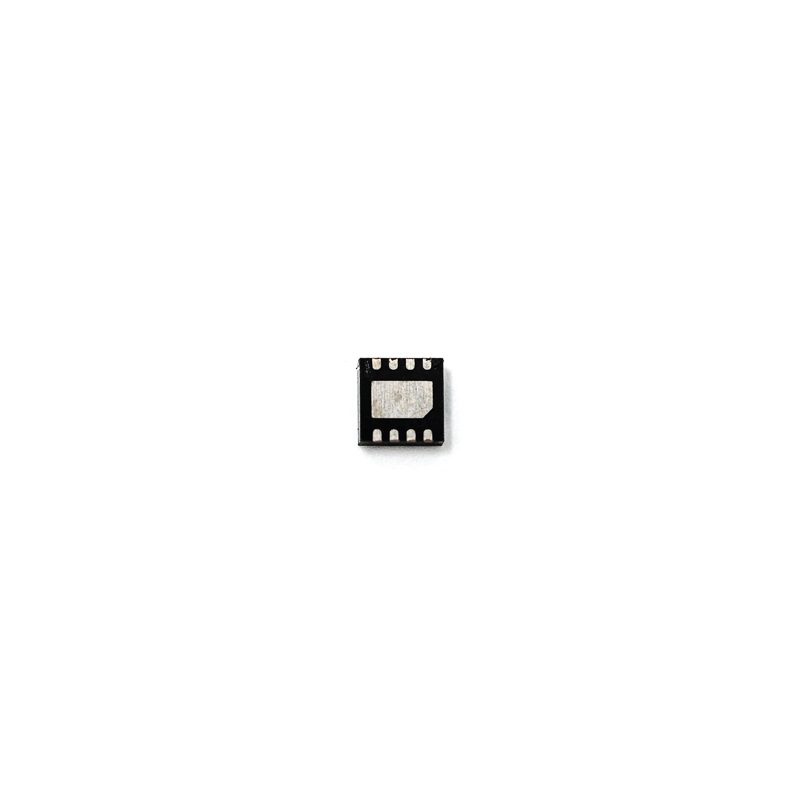

Package Type	DFN
Dimensions (L x W)	2.5 mm x 2.5 mm (approx.)

Frequently Asked Questions

What is the operating voltage range for the SHT30A-DIS-B sensor?

The SHT30A-DIS-B operates from a wide supply voltage range of 2.4 V to 5.5 V DC. This makes it directly compatible with both 3.3 V and 5 V microcontroller systems like Arduino, Raspberry Pi, and ESP32 without requiring a level shifter.

How do I communicate with this sensor and what are the I2C addresses?

Communication is via the standard I2C serial interface, supporting speeds up to 1 MHz. The sensor provides two user-selectable 7-bit I2C addresses: 0x44 (default) and 0x45, allowing you to connect two sensors on the same bus for multi-point sensing.

Is this sensor suitable for automotive or harsh environment applications?

Yes, the SHT30A-DIS-B is specifically qualified to the automotive AEC-Q100 standard. It is designed to deliver reliable, high-precision measurements across an extended operating temperature range of -40°C to 125°C, making it ideal for demanding automotive, industrial, and outdoor applications.

What is the power consumption profile of this sensor?

The sensor features ultra-low power consumption. In idle (sleep) mode, it draws only 0.2 µA. During an active measurement, the average current is between 600 µA and 1500 µA, depending on the selected measurement resolution and repeatability mode.
