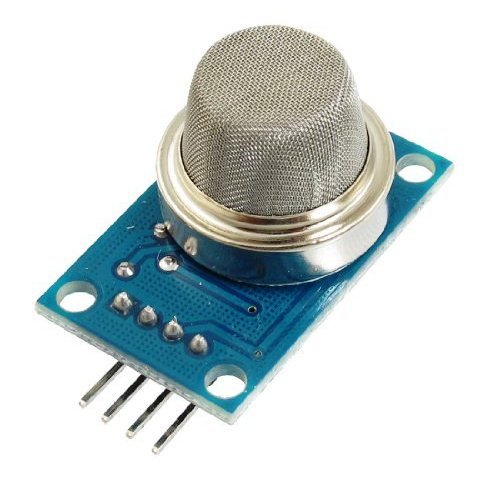

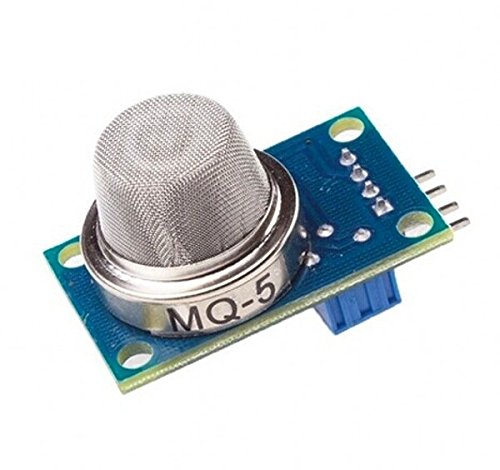

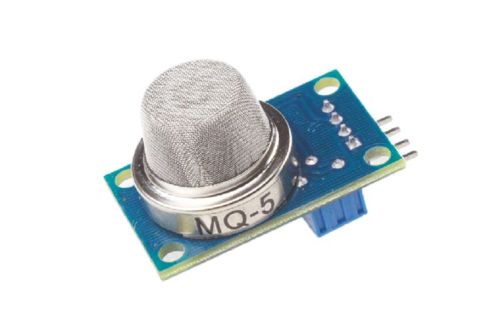

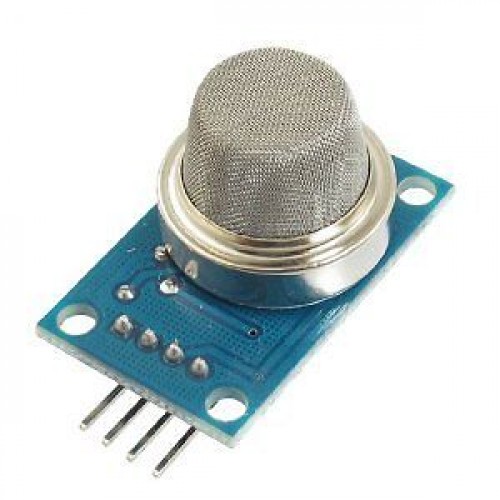

MQ-5 Methane LPG Propane Gas Sensor Module - Tin Oxide Semiconductor, Analog/Digital Output
The MQ-5 is a tin oxide (SnO2) semiconductor gas sensor module designed for detecting combustible gases like LPG, methane (natural gas), and propane. Operating at 5V DC, it provides both analog and digital output signals for easy integration with Arduino, Raspberry Pi, and other microcontroller platforms.
Features
- Detects LPG, Methane (Natural Gas), Propane, and Coal Gas
- Tin Oxide (SnO2) semiconductor sensing element
- Dual analog (Aout) and digital (Dout) output signals
- On-board sensitivity adjustment potentiometer
- 5V DC operating voltage, compatible with common development boards
Out of stock
The MQ-5 gas sensor module utilizes a tin oxide (SnO2) semiconductor as its sensing element. In clean air, the conductivity of SnO2 is low. When combustible target gases are present, the sensor’s conductivity increases proportionally with the gas concentration. A simple external circuit converts this change in conductivity into a corresponding analog voltage or digital trigger output.
This module is engineered for stability and long-term operation within an ambient temperature range of -20°C to 40°C. It features a dedicated potentiometer for calibrating the detection threshold of its digital output, allowing adaptation to different environmental conditions and sensitivity requirements. The design prioritizes detection of LPG, methane, and propane while minimizing cross-sensitivity to common interferents like alcohol and cooking fumes.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 3.2 × 2 cm |
