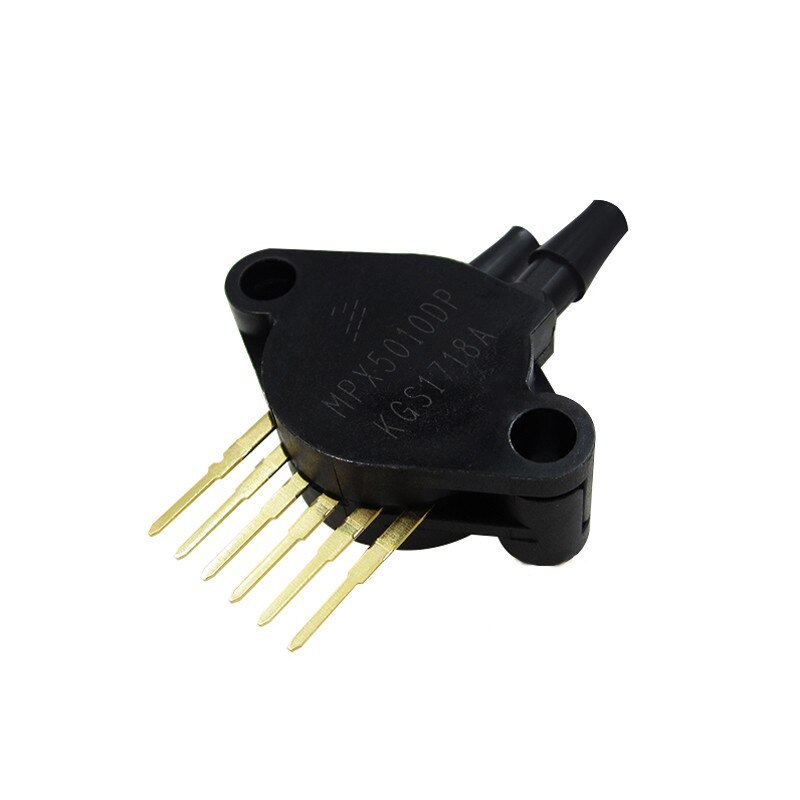

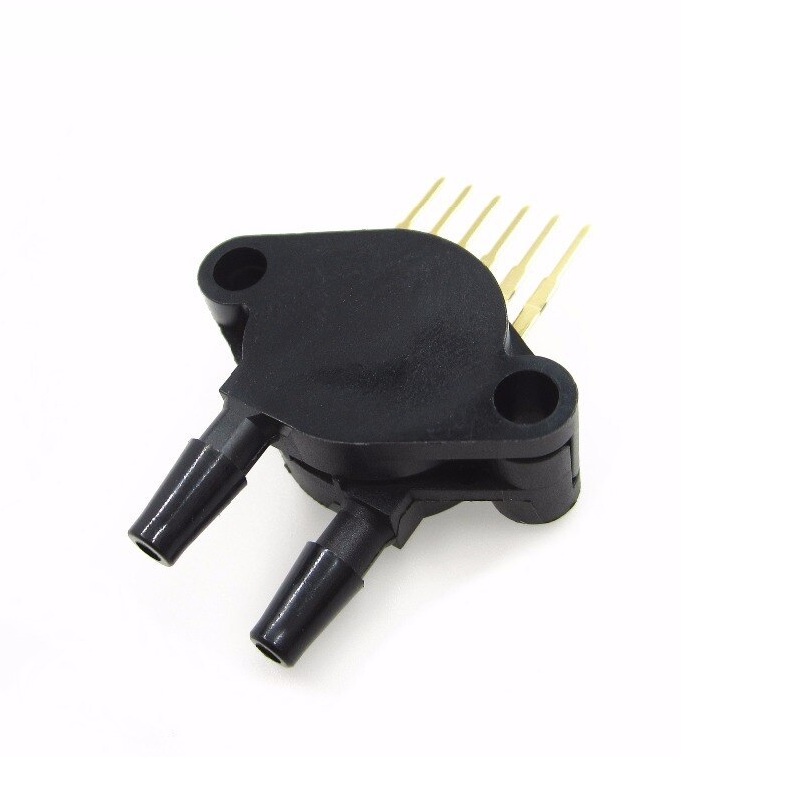

MPX5010DP Pressure Sensor 0-10 kPa Differential Analog Module
The MPX5010DP is a monolithic, piezoresistive differential pressure sensor module delivering a calibrated 0-4500mV analog output for 0-10 kPa pressure ranges. It is designed for direct interface with 5V microcontrollers, Arduino boards, and industrial data acquisition systems requiring precise low-pressure measurement.
Features
- Monolithic silicon piezoresistive transducer with on-chip signal conditioning
- 0 to 10 kPa differential pressure range with 450mV/kPa sensitivity
- Temperature compensated and calibrated from -40°C to +125°C
- 4.75V to 5.25V supply voltage, ideal for 5V microcontroller systems
- Dual axial ports for 4.93mm (0.19″) industrial tubing
Out of stock
The MPX5010DP integrates a micromachined silicon sensing element with advanced thin-film metallization and bipolar signal conditioning on a single chip. This design provides a high-level, temperature-compensated analog voltage output directly proportional to the applied differential pressure, minimizing the need for external amplification.
Housed in a durable epoxy unibody SIP package, the sensor is engineered for stability across a wide industrial temperature range. Its fast 1ms response time and differential port configuration make it suitable for dynamic pressure monitoring in airflow, liquid level, and pneumatic control applications.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 3.8 × 3 × 1.1 cm |
