Moresense MS58-2020D20M4 5.8G Ultrasonic Sensor 15m Long-Distance - UART/GPIO Interface
The Moresense MS58-2020D20M4 is a 5.8 GHz Doppler radar sensor module designed for long-range motion detection up to 15m (adjustable to 35m). It operates on a wide 3.3V to 12V DC supply and provides flexible interfacing via UART or GPIO for integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- 5.8 GHz ISM Band Doppler Radar for precise motion sensing.
- Long detection range up to 15m, configurable to 35m.
- Immune to ambient light, temperature, humidity, dust, and noise.
- Dual interface support: UART serial communication and GPIO output.

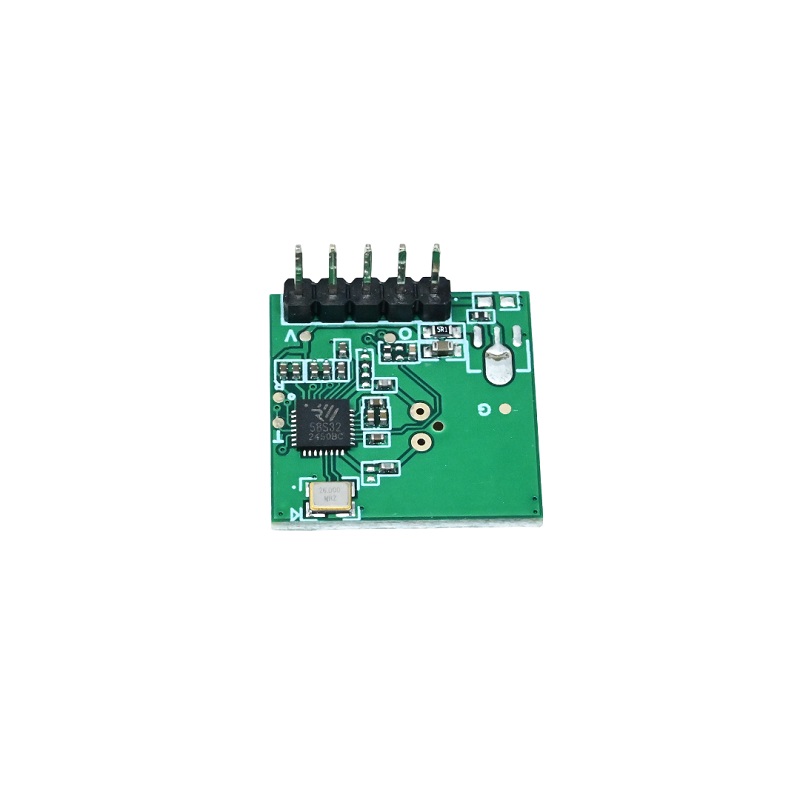

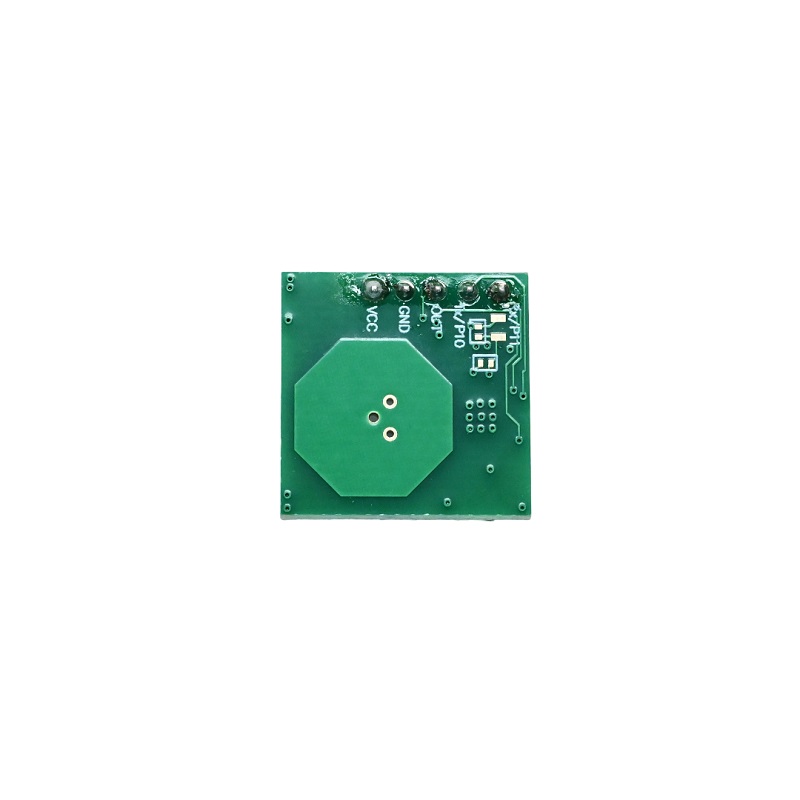

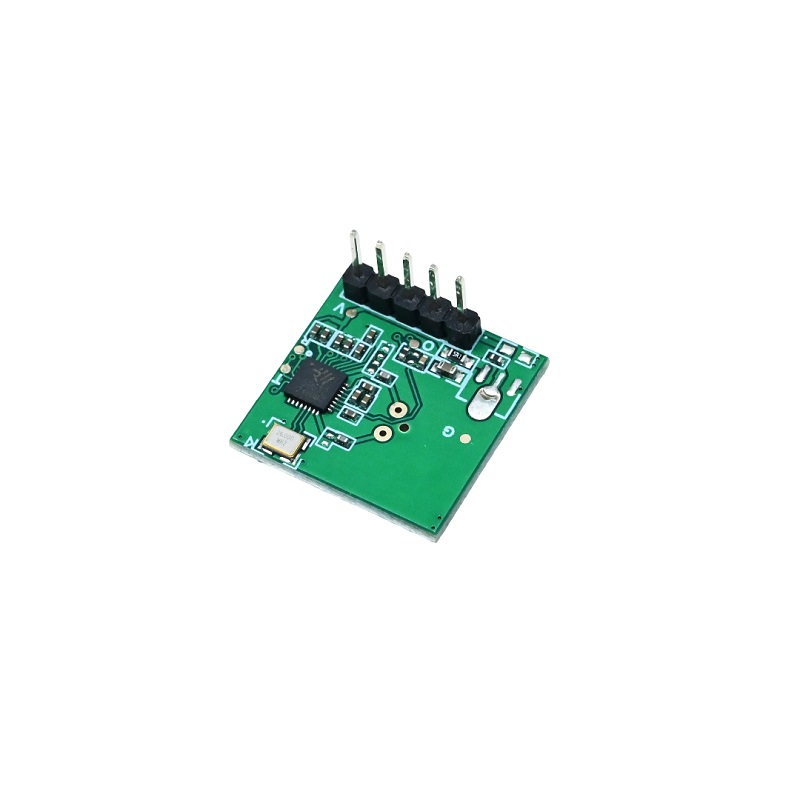

- Compact 20 x 20 mm footprint with integrated planar antenna.
Out of stock
The Moresense MS58-2020D20M4 utilizes Doppler radar technology within the 5.8 GHz ISM band to detect moving objects. Its operation is based on frequency shifts between transmitted and reflected signals, enabling reliable sensing unaffected by environmental variables such as temperature, airflow, or lighting conditions. The module’s signal can penetrate non-metallic materials like glass and plastic.
Featuring a built-in multi-filter algorithm and self-calibration function, the sensor offers strong anti-jamming capability and supports dense deployment without interference. It is engineered for low-power applications, making it ideal for battery-powered systems like solar lights and wireless security cameras. Configuration parameters can be adjusted via serial port commands or a PC-based upper computer software.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 2 × 8 cm |
