Moresense MS10-2211J26M4 10GHz Low Powered Ultrasonic Sensor 2-3M Range - UART/I2C/GPIO Interface
The Moresense MS10-2211J26M4 is a 10GHz low-power ultrasonic sensor module offering a configurable detection range up to 8 meters. It features selectable UART, I2C, and GPIO interfaces for seamless integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, making it ideal for battery-powered security and proximity applications.
Features
- 10.5–10.55GHz operating frequency with -4dBm transmit power for precise, low-interference sensing.
- Dual power modes: 26mA normal operation and ultra-low 51µA sleep current for extended battery life.
- Compact 22mm x 11mm footprint with integrated planar antenna for space-constrained designs.

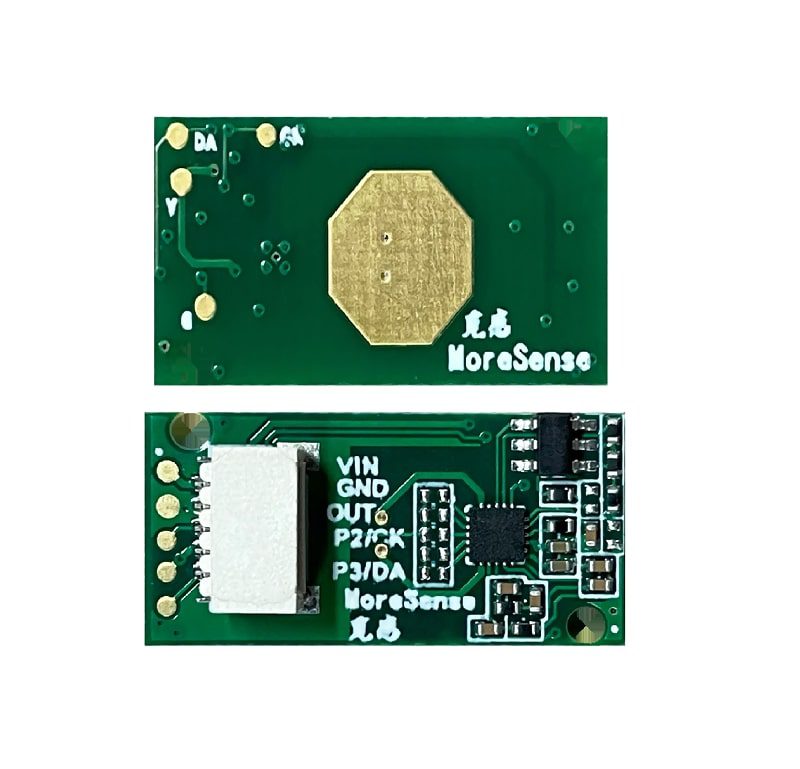

- Multi-interface support via configurable UART, I2C, or GPIO for flexible system integration.
- Immunity to environmental factors like temperature, humidity, dust, and ambient light.
Out of stock

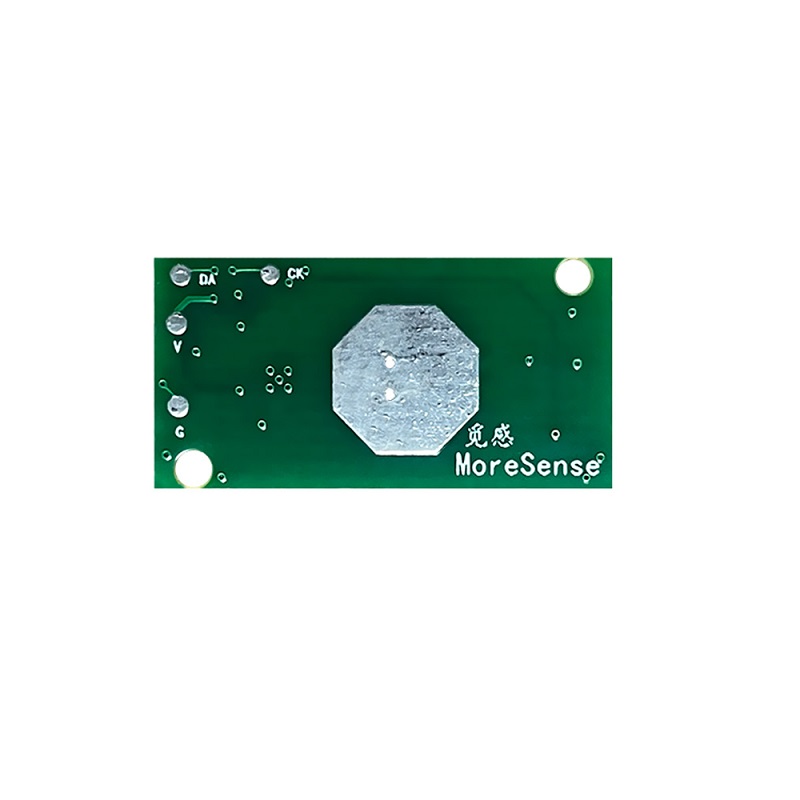

The MS10-2211J26M4 utilizes advanced 10GHz ultrasonic radar technology housed within a miniaturized planar antenna structure. This design enables reliable motion and presence detection through thin non-metallic barriers like acrylic and glass, while maintaining a compact form factor suitable for embedded applications.
Engineered for low-power operation, the sensor supports configurable power modes to optimize energy consumption in battery-dependent systems such as smart locks and IoT security devices. Its signal processing is unaffected by common environmental variables, ensuring stable performance in diverse indoor settings.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.1 × 2.2 cm |
