MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife
MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife - Image 2
MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife - Image 3
MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife - Image 4
MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife - Image 5
SKU: SENS-1306
📋 GST Invoice Available

MORAYELEC ME202D High Accuracy Mini Ultrasonic Liquid Level Sensor (Range: 1-5m) - Tuya SmartLife

₹13,839.00 (Inclusive of all taxes)
Out of Stock

The MORAYELEC ME202D is a compact ultrasonic liquid level sensor designed for precise monitoring of water, fuel, and diesel tanks. It provides accurate real-time level data via Tuya SmartLife app integration, making it suitable for smart home automation, agricultural, and industrial tank monitoring applications.

Features

  • High-precision ultrasonic sensing with ±0.5% accuracy for reliable level monitoring.
  • Seamless integration with Tuya SmartLife app for remote monitoring and alerts on Android/iOS devices.
  • Wide operating temperature range from -20°C to 70°C for durable performance in various environments.
  • Multi-liquid compatibility for use with water, fuel, and diesel tanks.
  • Compact design with easy installation system for quick setup and minimal maintenance.

Out of stock

Description

The ME202D utilizes advanced ultrasonic sensing technology to deliver precise, non-contact liquid level measurement. Its compact form factor houses a robust transducer and signal conditioning circuitry, ensuring stable readings across its 1 to 5-meter range with a repeatability of ±0.1% FS.

Engineered for reliability, the sensor operates within a broad temperature range of -20°C to 70°C and features a durable build suitable for industrial and agricultural settings. It integrates directly with the Tuya IoT ecosystem, enabling remote data access, historical tracking, and configurable alert notifications via the SmartLife application.

Key Features

  • High-accuracy ultrasonic measurement principle with ±0.5% full-scale accuracy.
  • Tuya SmartLife cloud connectivity for remote monitoring and management via smartphone.
  • Robust construction rated for operation from -20°C to 70°C.
  • Compatible with a wide range of non-corrosive liquids including water, fuel, and diesel.
  • Low power consumption design with an input current ≤0.15A.
  • Digital output interface with high-level logic at 3.3V for easy microcontroller integration.
  • Compact dimensions (115mm x 80mm) for installation in confined spaces.
  • Includes necessary mounting hardware and power adapter for quick deployment.

Applications

  • Remote monitoring of residential and commercial water storage tanks.
  • Fuel and diesel level tracking in agricultural, industrial, and generator tanks.
  • Liquid level management in smart home automation and IoT systems.
  • Process monitoring in small-scale industrial and agricultural fluid handling systems.

Technical Specifications

Model NumberME202D
Sensor TypeUltrasonic Liquid Level Sensor
Measuring Range1 to 5 meters
Accuracy±0.5%
Repeatability±0.1% FS
Operating VoltageDC 5V (via included adapter)
Input Current≤0.15A
High-Level Output Voltage3.3V
Low-Level Output Voltage≤400 mV
Operating Temperature-20°C to 70°C
Dielectric Strength≥500V AC (1 minute)
Insulation Resistance≥100 MΩ
Dimensions (L x W)115 mm x 80 mm
Weight250 g
Communication/AppTuya SmartLife (Android/iOS)

Frequently Asked Questions

What is the power supply requirement for the ME202D sensor?

The ME202D operates on a DC 5V power supply, which is provided via the included AC 100-240V adapter. The sensor draws a maximum input current of ≤0.15A. Ensure you use the supplied adapter or a regulated 5V DC source for proper operation.

How do I connect and configure the ME202D with the Tuya SmartLife app?

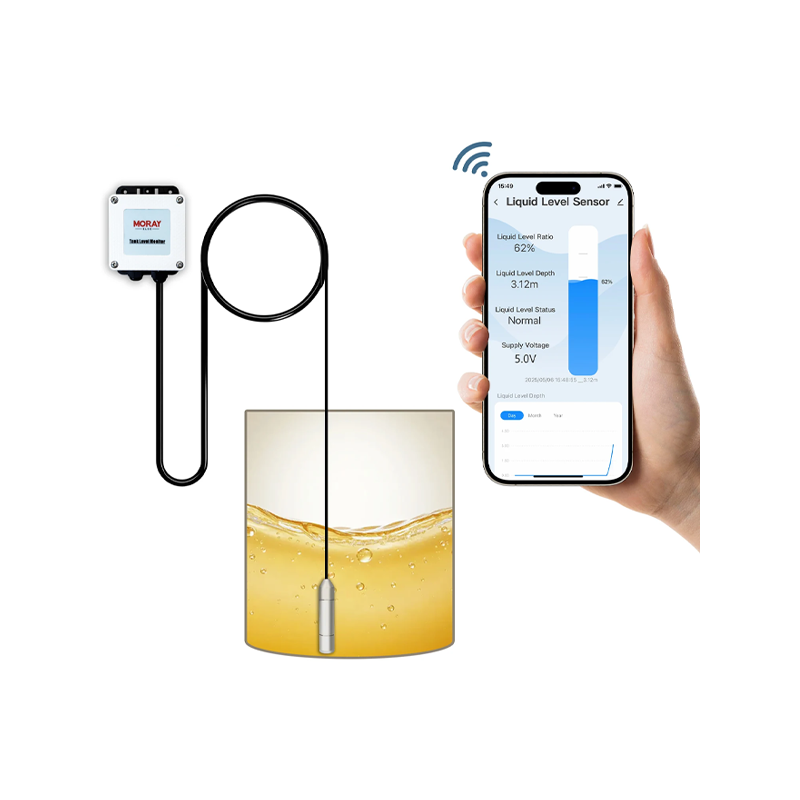

Power the sensor with the included adapter. Download the Tuya SmartLife app on your Android or iOS device, create an account, and follow the in-app pairing instructions to add the device to your network. The sensor will broadcast its data to the Tuya cloud, allowing for remote monitoring and alert configuration.

What liquids is this sensor compatible with, and what is its measurement accuracy?

The ME202D is compatible with a range of non-corrosive, non-foaming liquids including water, fuel, and diesel. It uses ultrasonic technology to measure levels from 1 to 5 meters with an accuracy of ±0.5% of the measured value and a high repeatability of ±0.1% of full scale.

What are the environmental limits for installing this sensor?

The sensor is designed for indoor or sheltered outdoor use with an operating temperature range of -20°C to 70°C. Ensure the mounting location is stable and the sensing face has a clear path to the liquid surface, free from obstructions or excessive turbulence, for optimal accuracy.

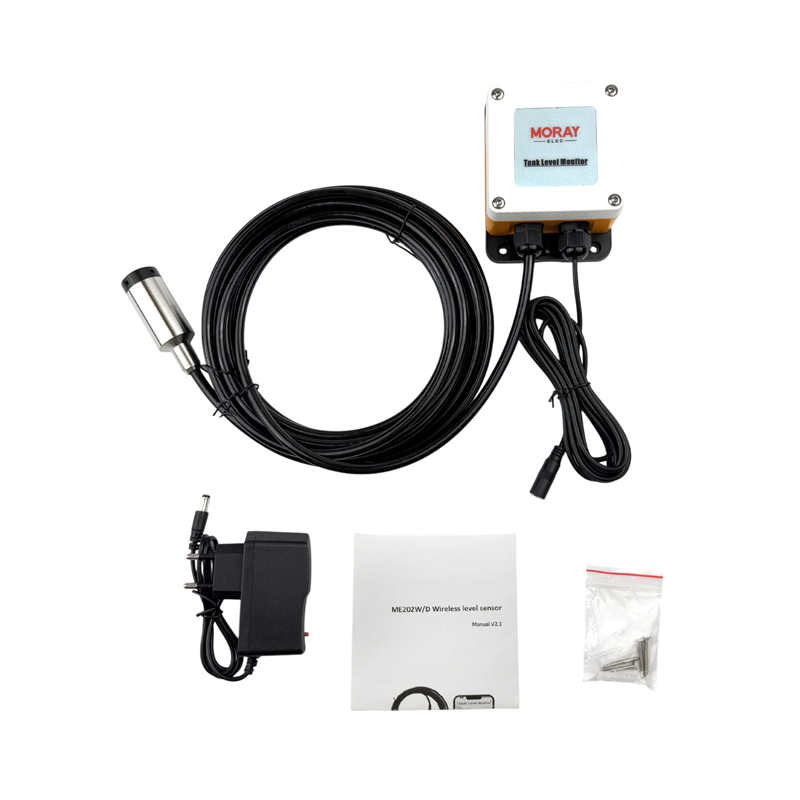

Package Includes

  • 1 x ME202D Ultrasonic Liquid Level Sensor
  • 1 x AC 100-240V to DC 5V Power Adapter
  • 1 x Screw Pack for mounting
  • 1 x User Manual

Additional Information

Weight 0.25 kg
Dimensions 11.5 × 8 cm
