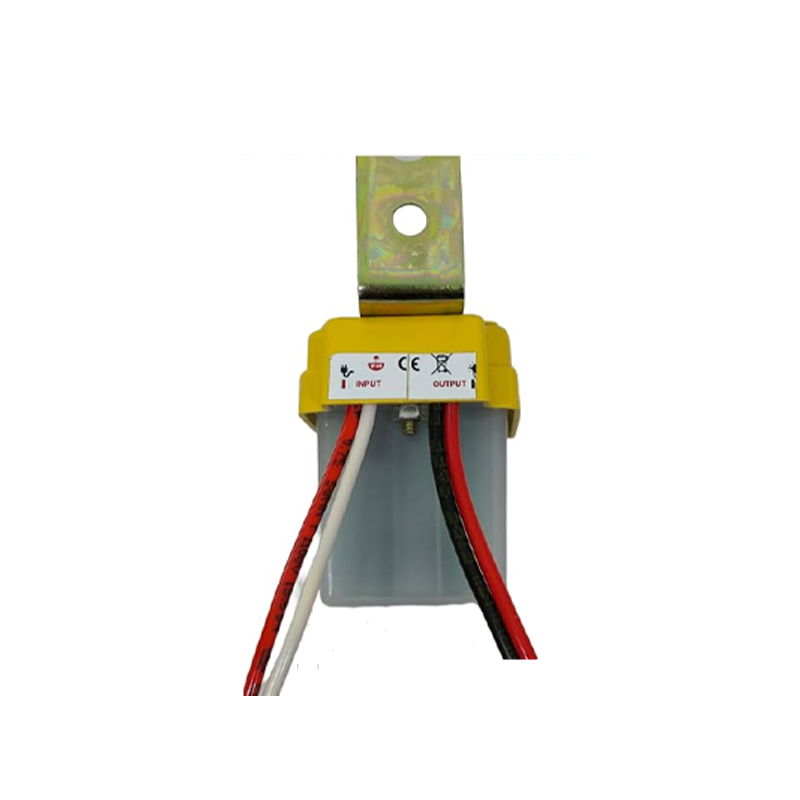

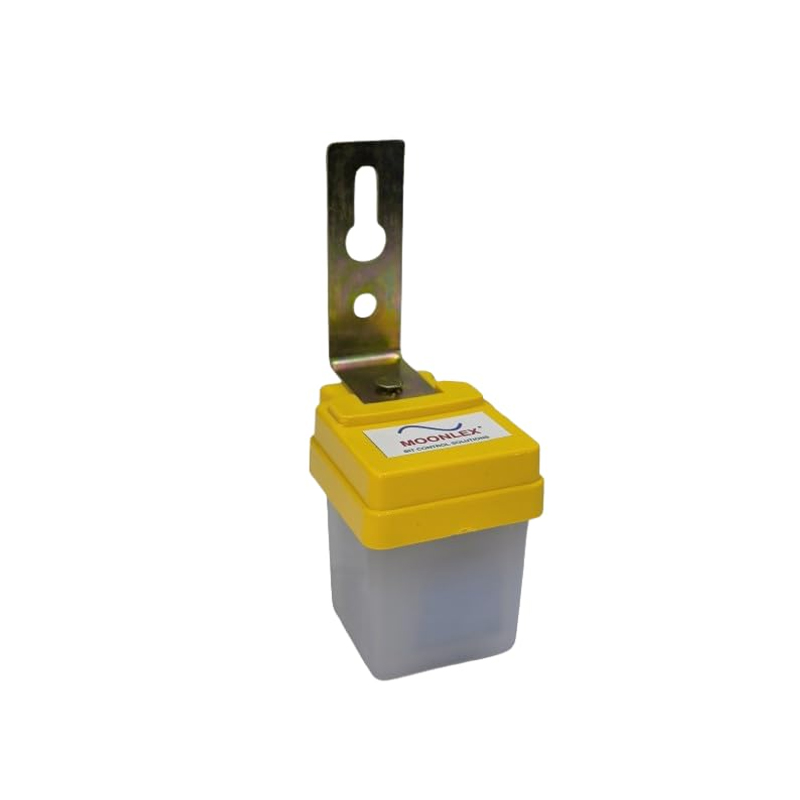

Moonlex DC Daylight Sensor (LDR) Module - IP44 Waterproof, 7-24V DC
The Moonlex DC Daylight Sensor is an LDR-based photoelectric switch module designed for automated lighting control in 7-24V DC systems. It provides automatic ON/OFF switching based on ambient light levels (approx. 15 LUX threshold), making it ideal for outdoor and garden lighting applications.
Features
- Automatic ON/OFF switching triggered by ambient light levels (~15 LUX threshold).
- Wide operating voltage range of 7V to 24V DC for flexible system integration.
- High load capacity supports up to 500W (6A) for driving multiple lights or high-power fixtures.
- IP44-rated waterproof and dustproof housing ensures reliable outdoor operation.
- Compact dimensions (30x25x40 mm) and simple two-wire connection for easy installation.
Out of stock
The Moonlex DC Daylight Sensor utilizes a Light Dependent Resistor (LDR) to monitor ambient light intensity. When light levels fall below a preset threshold (approximately 15 LUX), the internal relay closes, powering the connected load. At dawn, when light exceeds the threshold, the relay opens, turning the load off. This photoelectric switching principle provides a robust and energy-efficient method for automating lighting without complex programming.

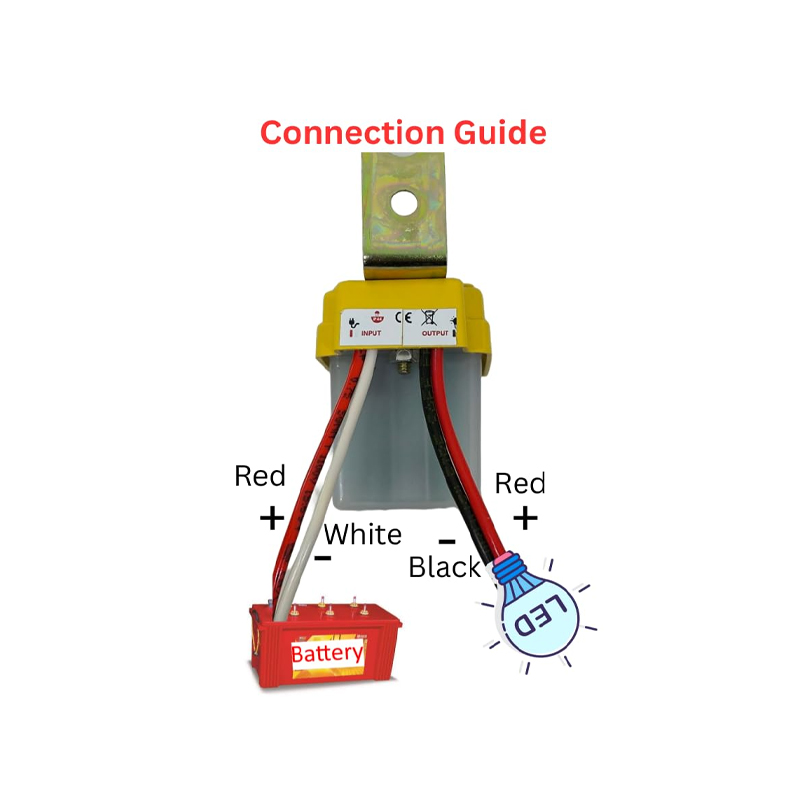

Built for harsh environments, the module features an IP44 ingress protection rating, safeguarding its electronics against splashing water and dust. Its operating temperature range of -20°C to +50°C ensures reliable performance in most climatic conditions. The module is a simple, two-wire device designed for direct series connection within the DC power line of the load, making it compatible with a wide array of 7-24V DC garden lights, pathway lights, and decorative lighting systems.
Additional Information
| Weight | 0.041 kg |
|---|---|
| Dimensions | 4 × 3 × 2.5 cm |
