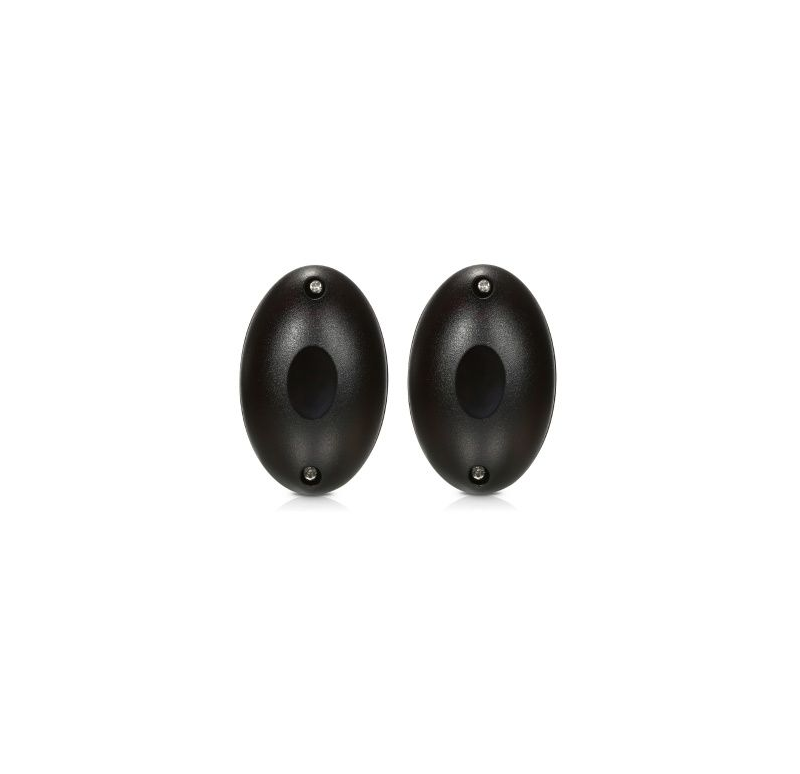

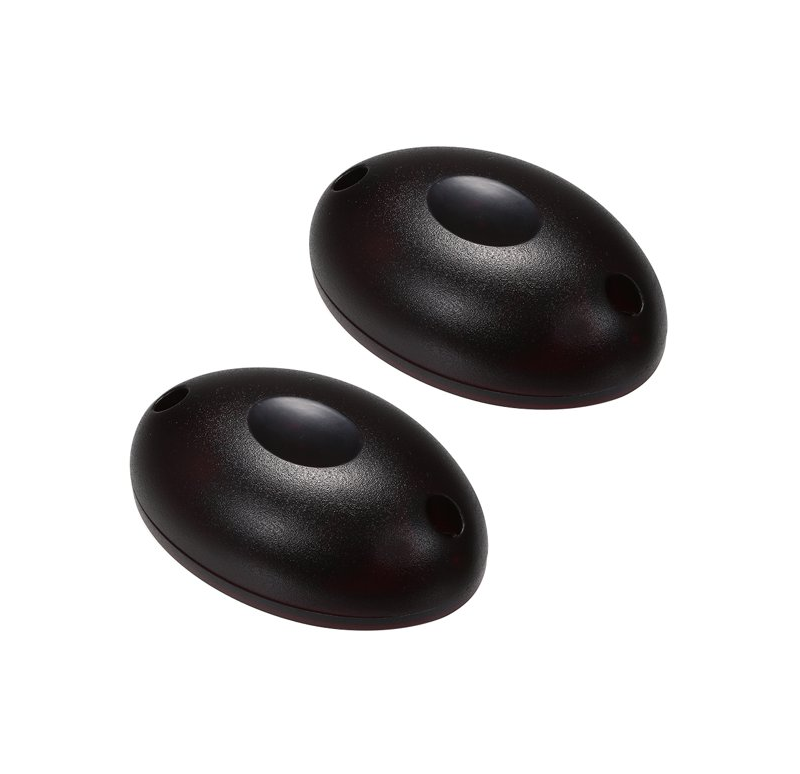

Generic Single-Beam IR Sensor Kit for Automatic Doors - 12-24V DC/AC, Transmitter & Receiver

The integrated SPDT relay is rated for a maximum load of 1 Amp at 30 Volts DC. This is suitable for directly controlling low-power door actuators or signaling to a larger relay or PLC input. Ensure your connected load does not exceed these ratings to prevent relay failure.

The sensor features a weather-resistant enclosure designed to withstand environmental conditions like fog, light rain, and dust. However, it is not typically rated with a specific IP code for submersion or heavy, direct water jets. For prolonged outdoor use, additional protective mounting (e.g., under an eave) is recommended.

Connect the 12-24V DC or AC power supply to the designated terminals on both the transmitter and receiver units. The receiver has output terminals for the relay's Common (COM), Normally Open (NO), and Normally Closed (NC) contacts. Wire your door control circuit between COM and either NO or NC, depending on whether you need the circuit to close or open when the beam is broken.

The product description does not specify a maximum range. For Generic single-beam IR sensors of this form factor, effective range is typically between 5 to 15 meters in clear, stable conditions. Range can be significantly reduced by heavy fog, dust, or misalignment. Always test the installed range in your specific environment.
