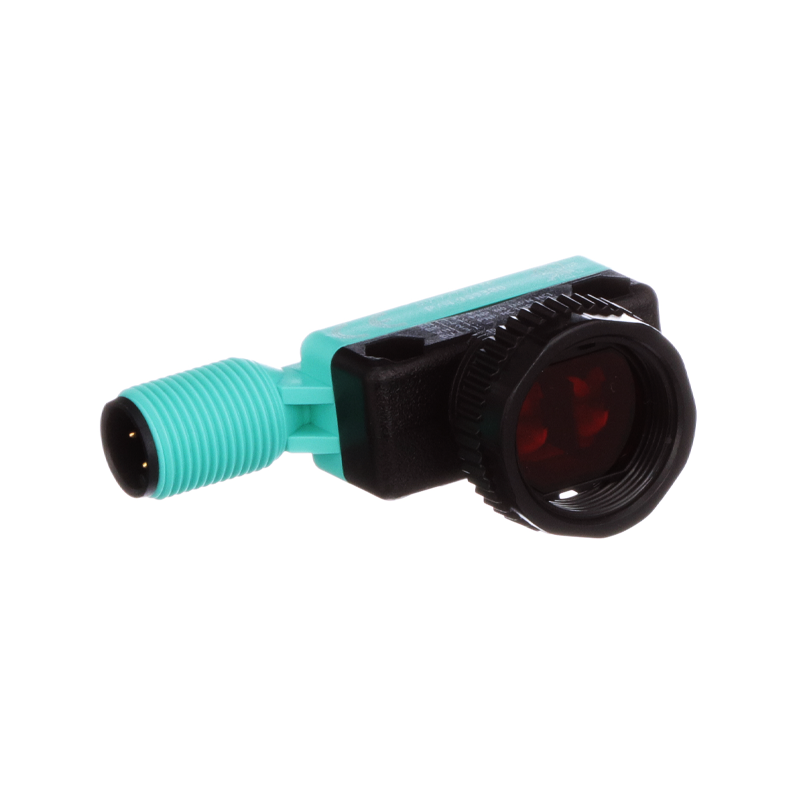

Pepperl+Fuchs MD17/73 Thru-Beam Photoelectric Sensor, Infrared LED 950nm, 0-15m Range, 10-30V DC, IP67
The Pepperl+Fuchs MD17/73 is an industrial-grade thru-beam photoelectric sensor utilizing a modulated 950nm infrared LED for reliable object detection up to 15 meters. Operating on a 10-30V DC supply, it integrates seamlessly with PLCs, industrial controllers, and automation systems requiring long-range, non-contact sensing.
Features
- Long-range thru-beam detection up to 15 meters for industrial automation.
- Modulated 950nm infrared LED light source ensures stable, ambient-light immune operation.
- Robust IP67-rated ABS housing with acrylic optical face for demanding environments.
- Flexible M18 threaded front or side mounting for versatile installation.
- High-visibility 360° LED indicators for immediate power and switching status monitoring.
Out of stock
The MD17/73 operates on the thru-beam (opposed) photoelectric principle, where an infrared transmitter and receiver are separated. The modulated 950nm light beam provides immunity to ambient light interference up to 10,000 lux, ensuring reliable object detection even in variable lighting conditions. The sensor’s fast response time (≤3 ms) and 150 Hz switching frequency enable high-speed counting and positioning tasks on fast-moving production lines.
Engineered for industrial durability, the sensor features a robust ABS housing with an IP67 rating, making it resistant to dust ingress and temporary water immersion. It includes built-in protection against short-circuits and reverse polarity, safeguarding both the sensor and the connected control system. The compact design and dual mounting options (M18 threaded front or side) offer flexible integration into machinery, conveyor systems, and automated handling equipment.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 5 × 2.93 cm |
