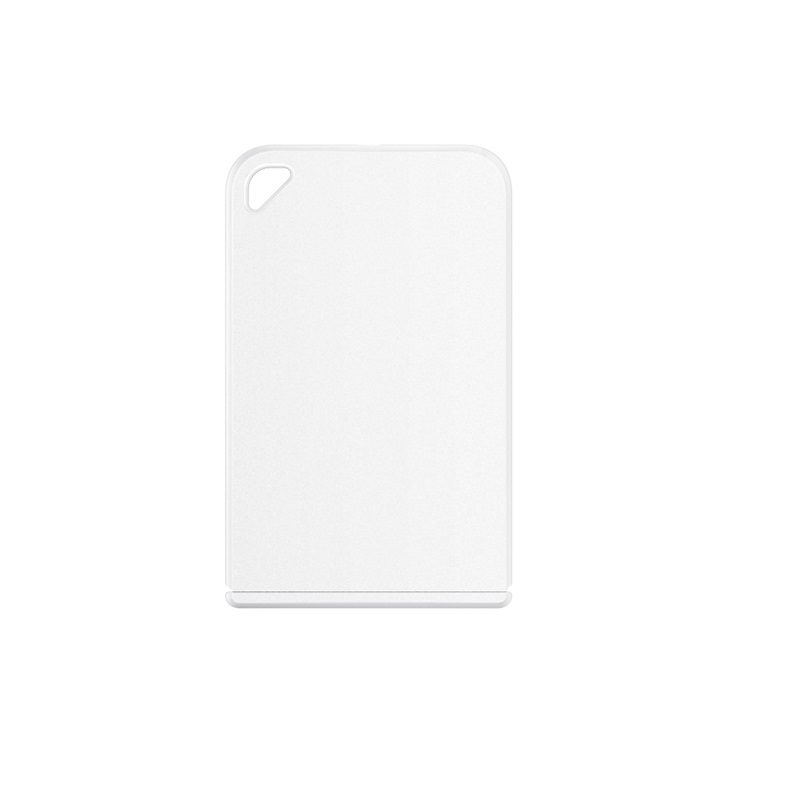

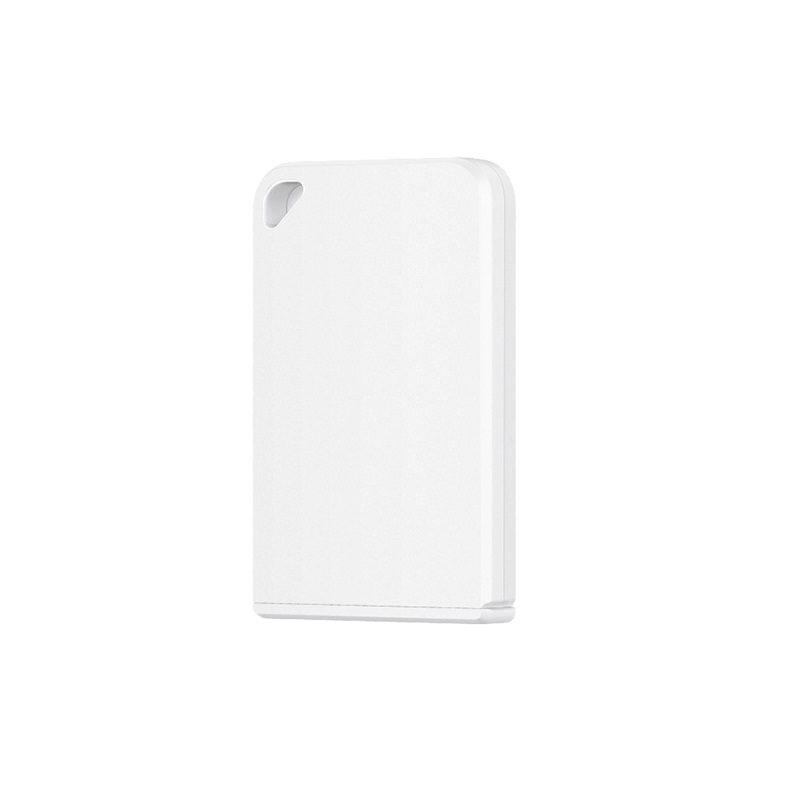

MOKO Smart Smart M4 Pro BLE 5.0 Asset Tag - IP67 Waterproof, 160m Range, Accelerometer, Replaceable Battery

Name: MOKO Smart Smart M4 Pro BLE 5.0 Asset Tag - IP67 Waterproof, 160m Range, Accelerometer, Replaceable Battery
Brand: MOKO Smart
SKU: SENS-3307
Price: 1599.00 INR
Availability: OutOfStock

₹1,599.00 (Inclusive of all taxes)

Out of Stock

The MOKO Smart Smart M4 Pro is a Bluetooth 5.0 asset tracking beacon featuring an integrated accelerometer for motion detection and orientation sensing. With an IP67 waterproof rating and a compact, lightweight design, it is engineered for reliable long-range (up to 160m) asset management in logistics, healthcare, and industrial environments.

Features

Bluetooth 5.0 beacon with up to 160m (1M PHY) / 400m (Coded PHY) transmission range.
Integrated 3-axis accelerometer for movement detection and orientation sensing.
IP67-rated waterproof and dustproof housing for harsh environment durability.
User-replaceable 220mAh CR2032 coin cell battery with up to 4-year lifespan.
Ultra-compact form factor (40mm x 25mm) and lightweight (<10g) for versatile mounting.

Out of stock

Get Notified When Available

Description

The MOKO Smart Smart M4 Pro is a professional-grade Bluetooth Low Energy (BLE) asset tracking tag designed for industrial and commercial monitoring applications. It leverages Bluetooth 5.0 technology for enhanced range and data throughput, while its integrated MEMS accelerometer provides real-time motion and tilt detection, enabling event-triggered alerts and power-saving presence monitoring modes.

Constructed with an IP67-sealed enclosure, the tag is protected against dust ingress and temporary immersion in water, making it suitable for deployment in warehouses, hospitals, and manufacturing floors. Its operating temperature range of -20°C to 60°C ensures reliable performance across varied climatic conditions. The device supports flexible installation via adhesive backing, zip ties, or a lanyard loop.

Key Features

Bluetooth 5.0 compliant with long-range capabilities (1M PHY & Coded PHY).
Integrated 3-axis digital accelerometer for motion and orientation detection.
IP67-rated waterproof and dustproof construction for industrial durability.
User-serviceable CR2032 coin cell battery (220mAh) with configurable power modes.
Ultra-lightweight (<10g) and compact design for minimal asset impact.
Wide operating temperature range from -20°C to +60°C.
Certified for FCC, CE, RoHS, REACH, and Bluetooth SIG compliance.
Supports multiple mounting options: adhesive, zip tie, or lanyard attachment.

Applications

Real-time asset tracking and inventory management in warehouses and logistics centers.
Equipment monitoring and tool tracking in manufacturing and industrial facilities.
Patient and medical device location tracking within healthcare environments.
Condition monitoring and movement detection for high-value portable assets.
Smart building and IoT presence detection for space utilization analytics.

Technical Specifications

Item Type	Bluetooth Asset Tag / Beacon
Model Number	M4 Pro
Wireless Technology	Bluetooth 5.0
Maximum Range	Up to 160m (1M PHY), 400m (Coded PHY)
Integrated Sensor	3-Axis Accelerometer
IP Rating	IP67 (Waterproof & Dustproof)
Battery Type	Replaceable CR2032 Coin Cell (220mAh)
Battery Life	Up to 4 years (Presence Monitoring Mode)
Operating Temperature	-20°C to +60°C
Dimensions (L x W)	40 mm x 25 mm
Weight	<10 grams

Frequently Asked Questions

What is the maximum communication range of the MOKO Smart M4 Pro beacon?

The beacon utilizes Bluetooth 5.0, offering a standard range of up to 160 meters using the 1M PHY. For extended range in open environments, it supports Coded PHY mode, which can achieve distances up to 400 meters, albeit with a lower data rate.

How is the accelerometer used in this BLE asset tag?

The integrated 3-axis digital accelerometer detects motion, orientation changes, and vibration. This enables features like motion-triggered wake-up to conserve battery, tilt detection for anti-theft alerts, and activity monitoring to differentiate between stationary and moving assets.

What type of battery does it use and how do I replace it?

The tag uses a standard, user-replaceable CR2032 3V coin cell battery with a capacity of 220mAh. The housing is designed to be opened for battery replacement, supporting a typical lifespan of up to 4 years in low-power presence monitoring mode, depending on broadcast interval and accelerometer usage.

Is the M4 Pro suitable for outdoor or wet environments?

Yes, with its IP67 rating, the enclosure is completely dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for damp indoor environments, washdown areas, and protected outdoor installations, though prolonged direct weather exposure should be avoided.

What mounting options are available for this tracker?

The compact and lightweight design supports multiple attachment methods. It includes an adhesive backing for permanent mounting on flat surfaces, features a built-in hole for zip-tie or lanyard attachment, and can be placed within custom enclosures or sleeves for specific asset types.
