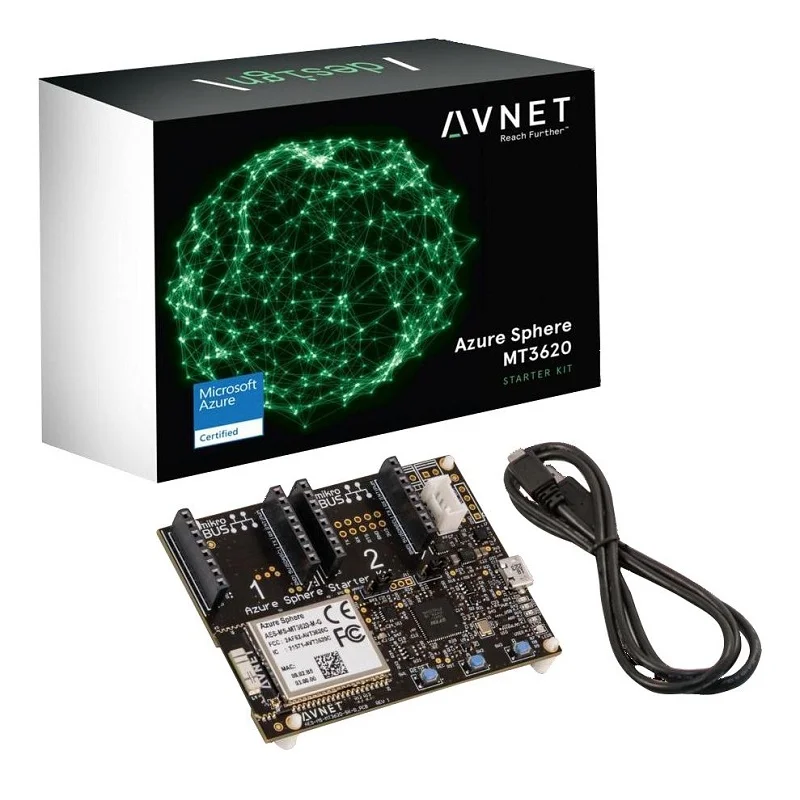

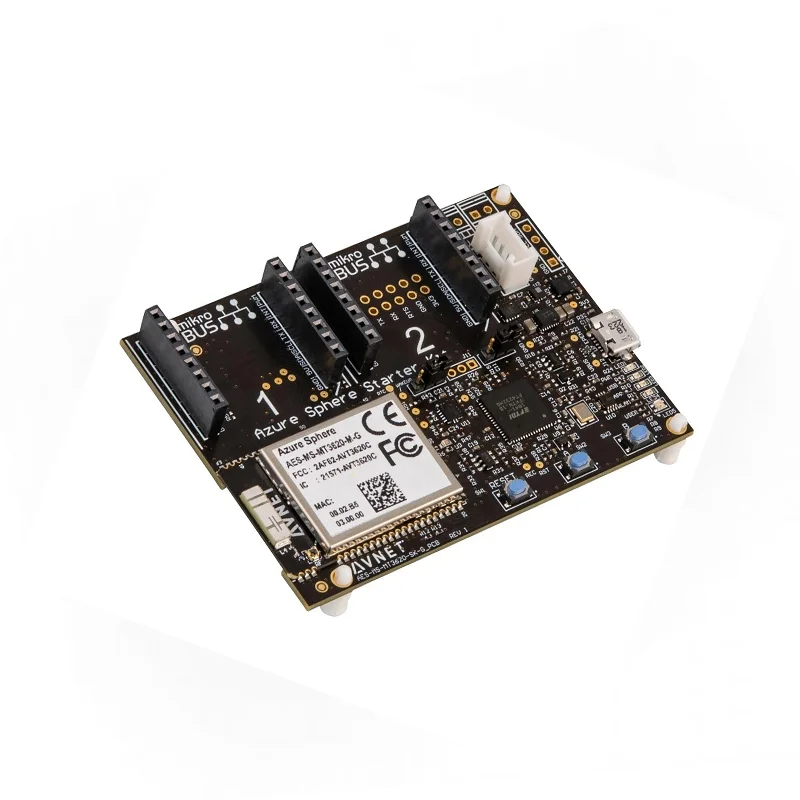

Microsoft Azure Sphere MT3620 Starter Kit
The Microsoft Azure Sphere MT3620 Starter Kit is a secure IoT development platform featuring a production-ready MediaTek MT3620AN Wi-Fi SoC with a tri-core ARM architecture (Cortex-A7 & M4F). It enables rapid prototyping of end-to-end IoT solutions using Visual Studio IDE and Azure Sphere SDK, with integrated sensors and Mikroe/Grove expansion.
Features
- Production-ready Azure Sphere MT3620AN module with dual-band 2.4/5GHz 802.11 a/b/g/n Wi-Fi and onboard chip antenna.
- Tri-core ARM processor: 500 MHz Cortex-A7 for applications and two 200 MHz Cortex-M4F cores for real-time I/O.
- Integrated environmental sensors: 3-axis accelerometer, gyro, temperature, pressure, and ambient light.
- Expansion interfaces: Two Mikroe Click sockets, I2C Grove connector, and optional 128×64 OLED display interface.
- Developed with Microsoft Visual Studio IDE and Azure Sphere SDK for secure, end-to-end IoT application deployment.
Out of stock

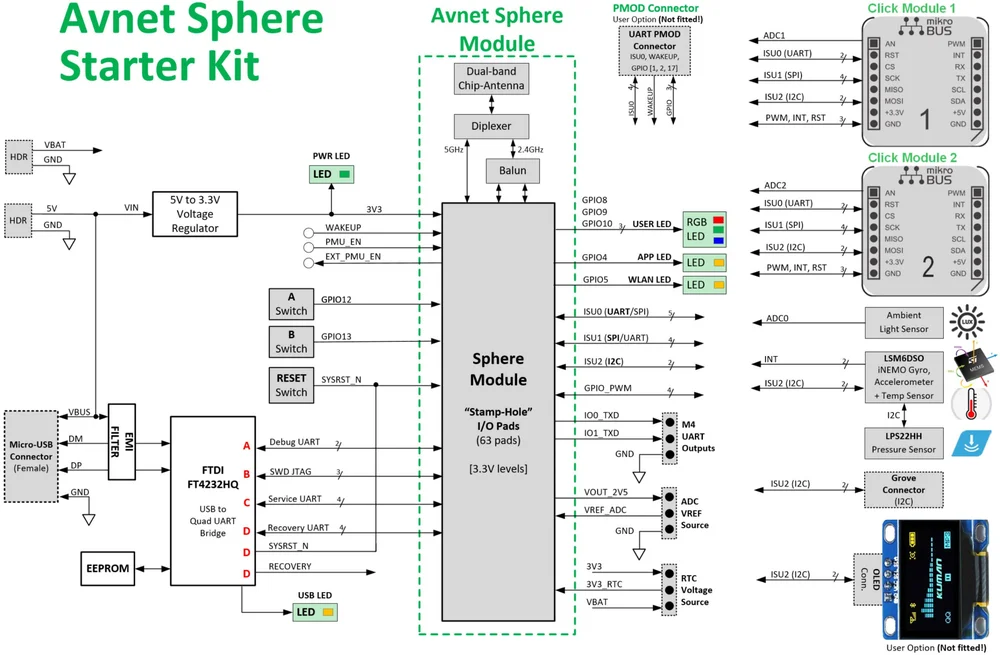

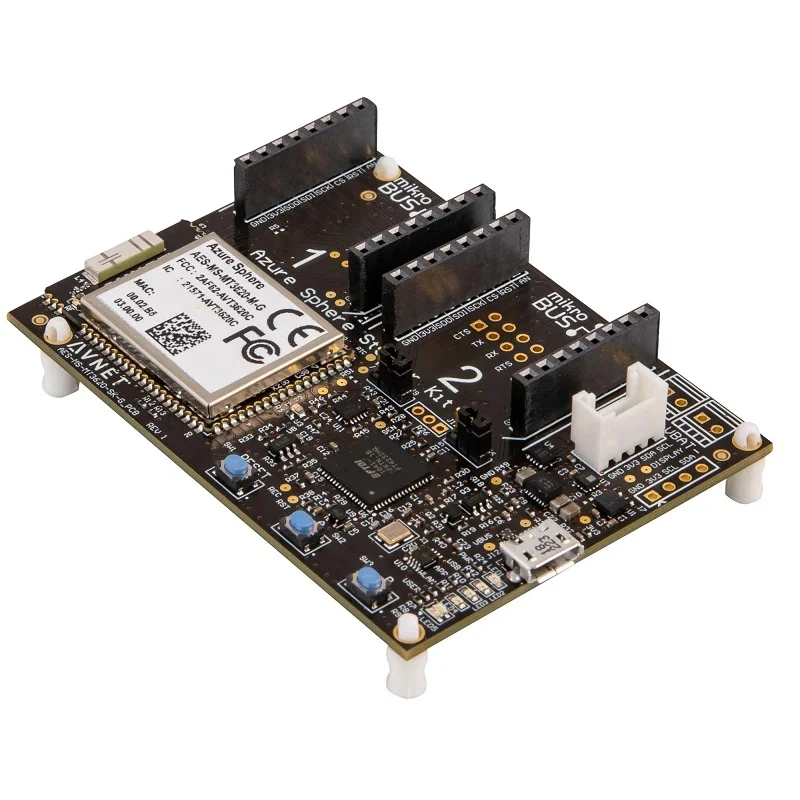

The Azure Sphere MT3620 Starter Kit provides a comprehensive hardware foundation for building highly secure, connected IoT edge devices. Its carrier board hosts a certified MT3620 module built around the MediaTek MT3620AN System-on-Chip, which integrates a 500 MHz ARM Cortex-A7 application processor and two 200 MHz ARM Cortex-M4F microcontrollers for deterministic real-time tasks. This architecture allows for the flexible assignment of rich peripherals—including UART, SPI, I2C, I2S, PWM, and ADC—across the three cores.

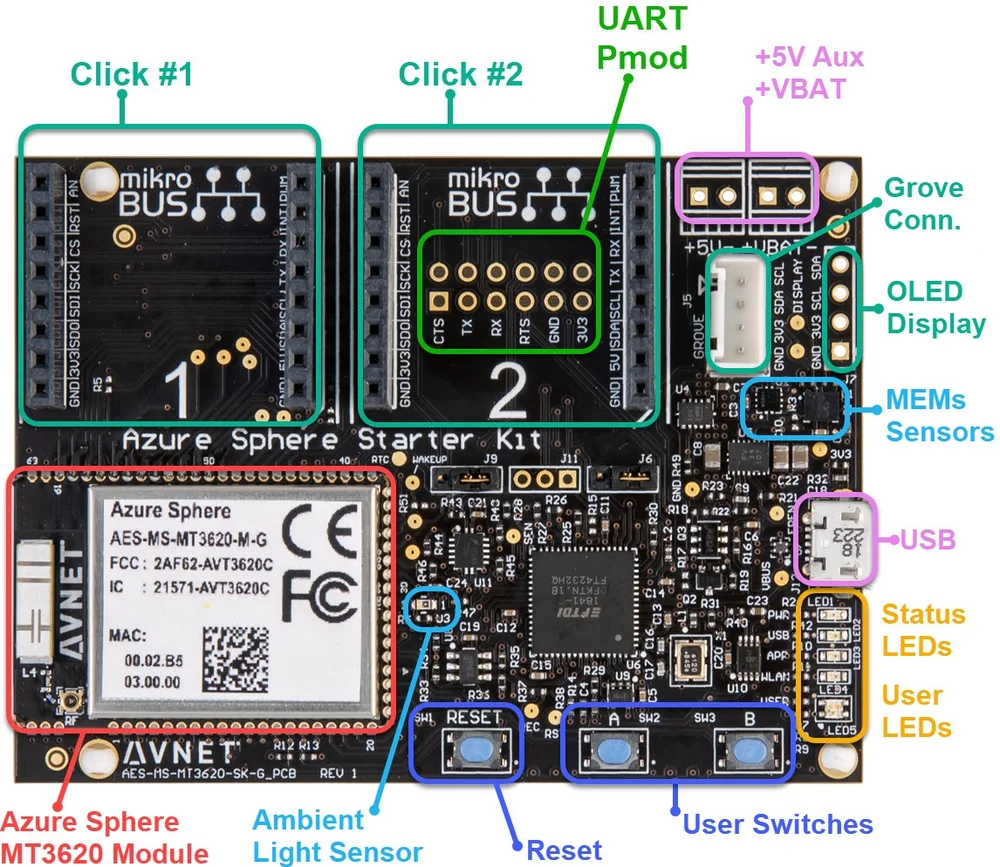

Designed for rapid prototyping, the board features direct access to on-board motion and environmental sensors and offers multiple expansion paths via industry-standard Mikroe Click sockets and a Grove I2C connector. Power and debugging are streamlined through a single USB connection, which supplies 5V and provides UART/JTAG interfaces for development. This kit delivers a secure, production-oriented starting point for IoT solutions, leveraging the Azure Sphere OS’s built-in security services from chip to cloud.
Additional Information
| Weight | 0.104 kg |
|---|---|
| Dimensions | 3.3 × 2.2 × 0.368 cm |
